Premium 2 to 1 Waterproof Solar PV Branch Connectors 1 Pair

2-to-1 Waterproof Solar PV Branch Connectors

Connect solar panels in parallel with this pair of 2-branch solar PV connectors. Built with waterproof sealing, durable PPO material and copper silver-plated contacts, they are designed for stable outdoor solar cable connections.

Features

• 1 male to 2 female and 1 female to 2 male branch connector pair
• Compatible with 14AWG to 10AWG solar cables or connectors

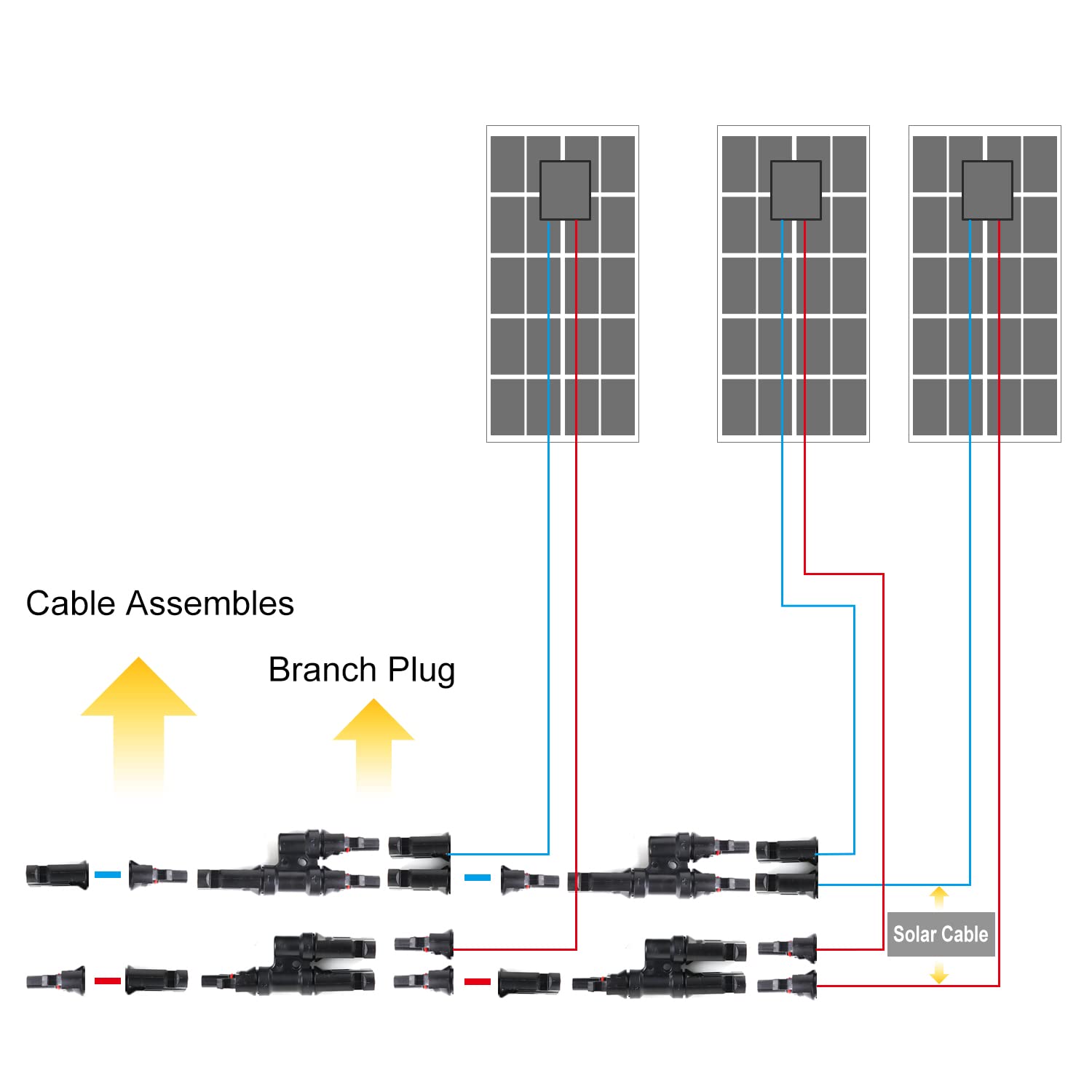

• Suitable for paralleling solar panels

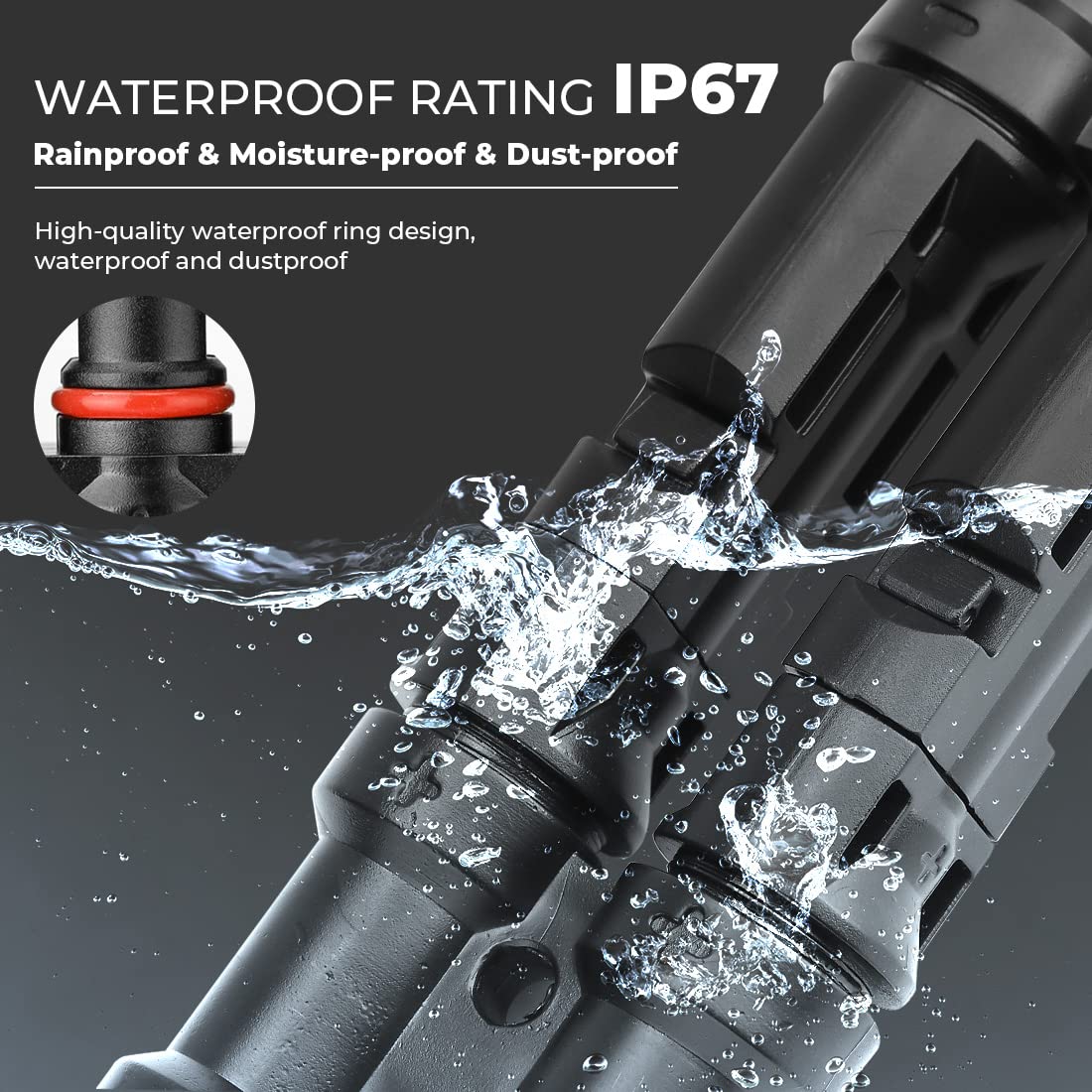

• IP67 waterproof ring helps seal out water and dust

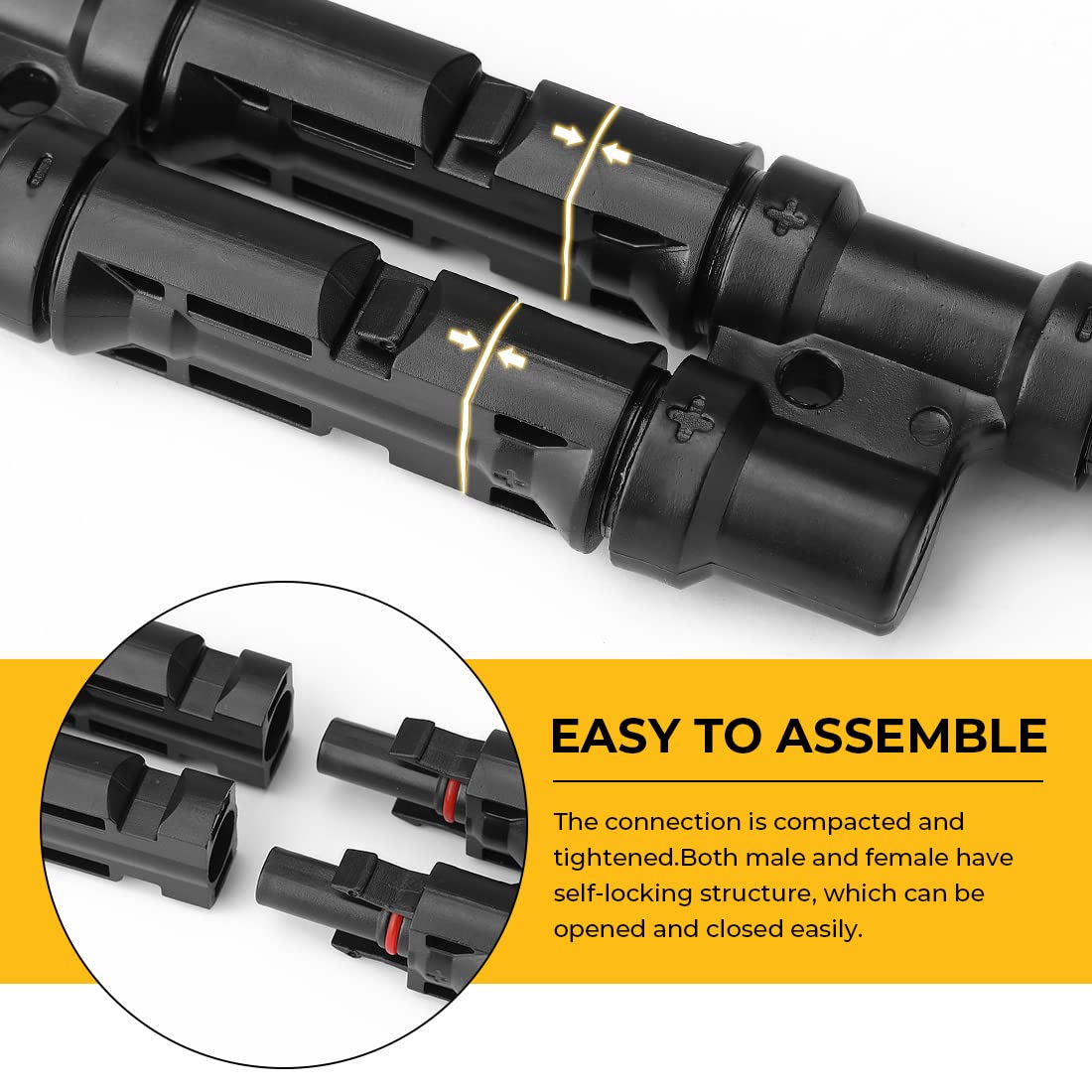

• Built-in lock for secure outdoor connection
• Plug-and-play design with tool-free disconnect
• CE and TUV certified hard plastic construction
• Corrosion-resistant for long-term use

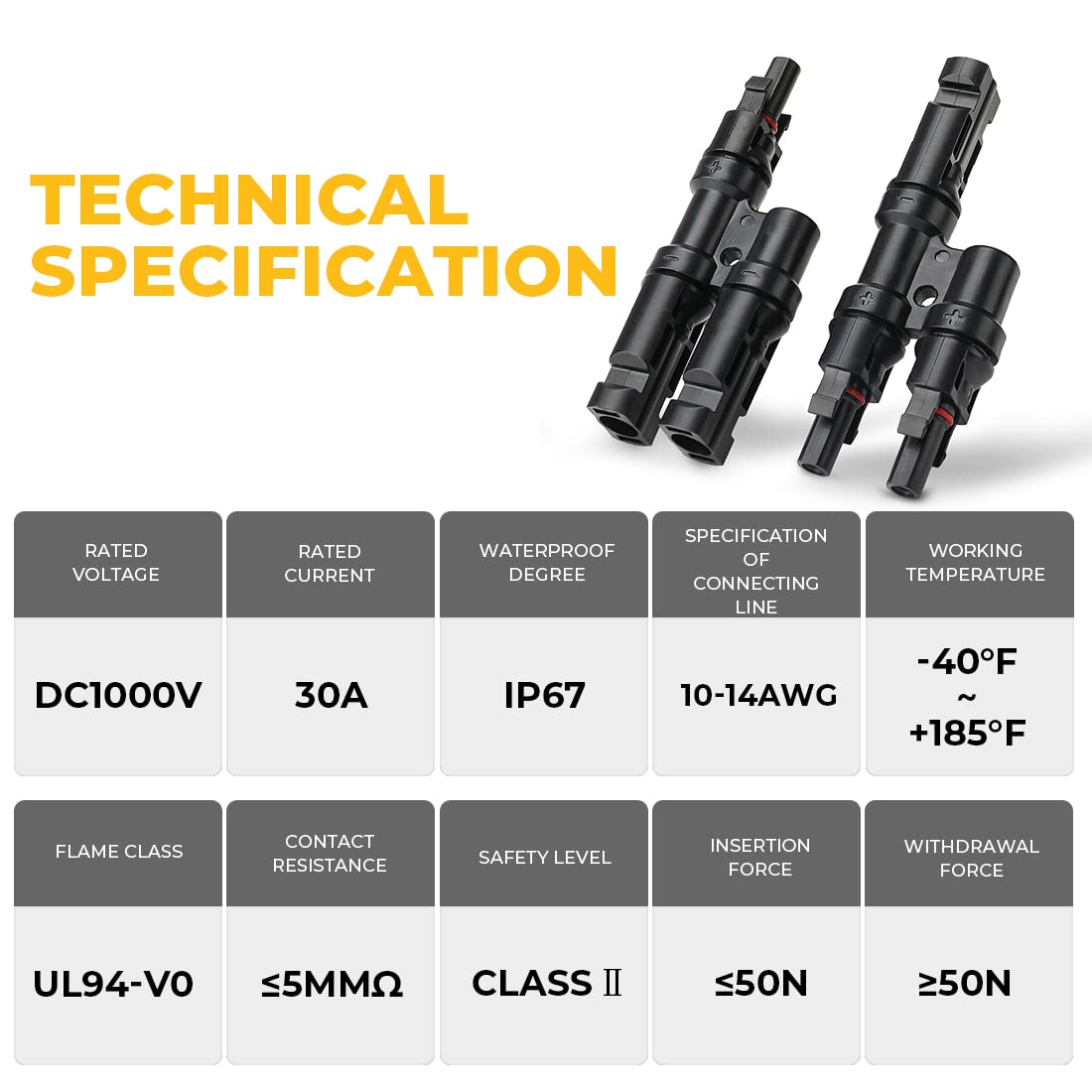

Specifications

• Product type: Solar PV branch connectors
• Branch type: 2-to-1
• Connector configuration: 1 x MMF, 1 x FFM

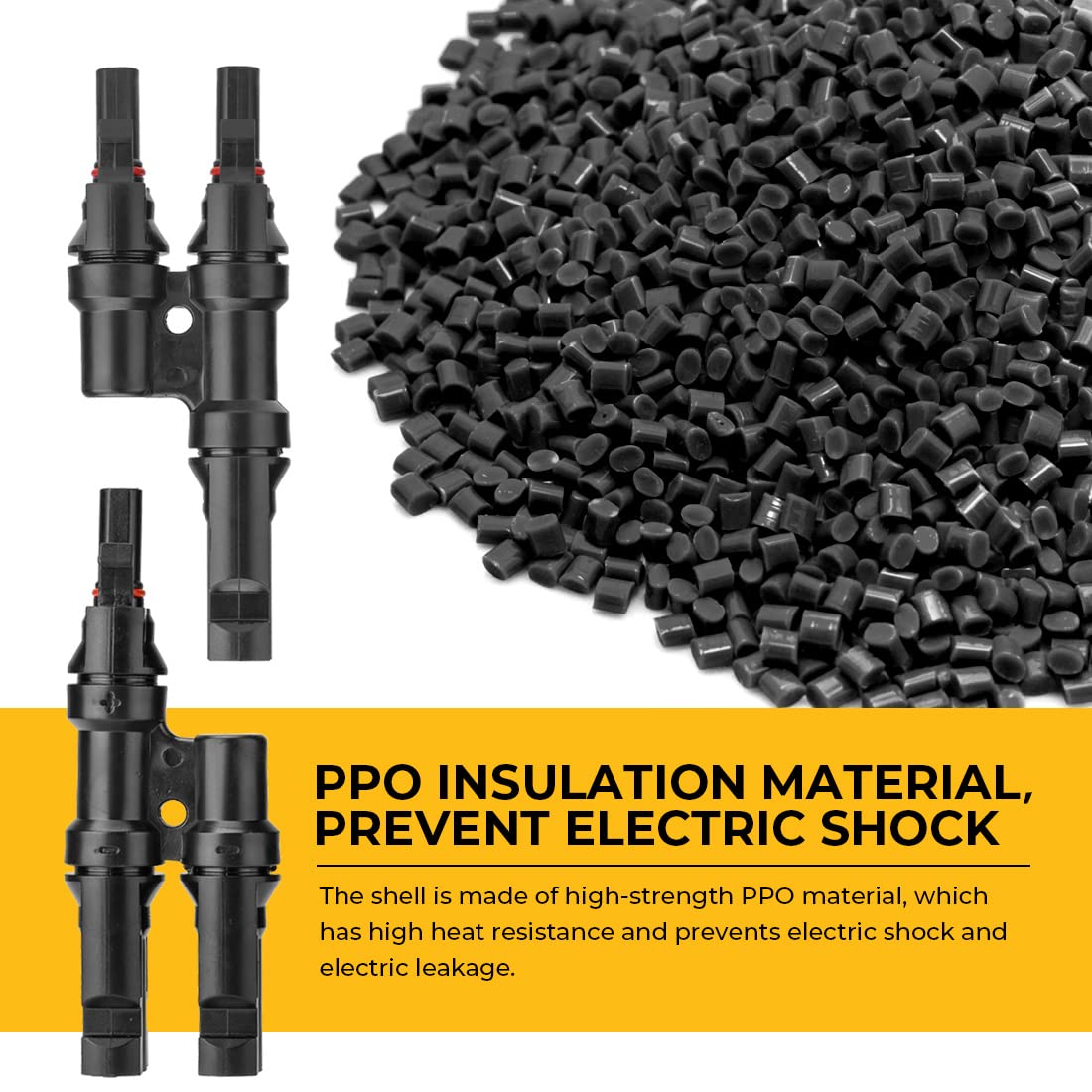

• Material: PPO
• Contact material: Copper, silver plated
• Withstanding voltage: 1000V DC TUV, 600V UL
• Contact resistance: 1m
• Protection class: Class II
• Temperature range: -40°C to +90°C
• Flame class: UL94-V0 or UL94-5VA
• Each connector weight: 50g

Package Contents

• 1 Pair of 2-branch solar connectors
