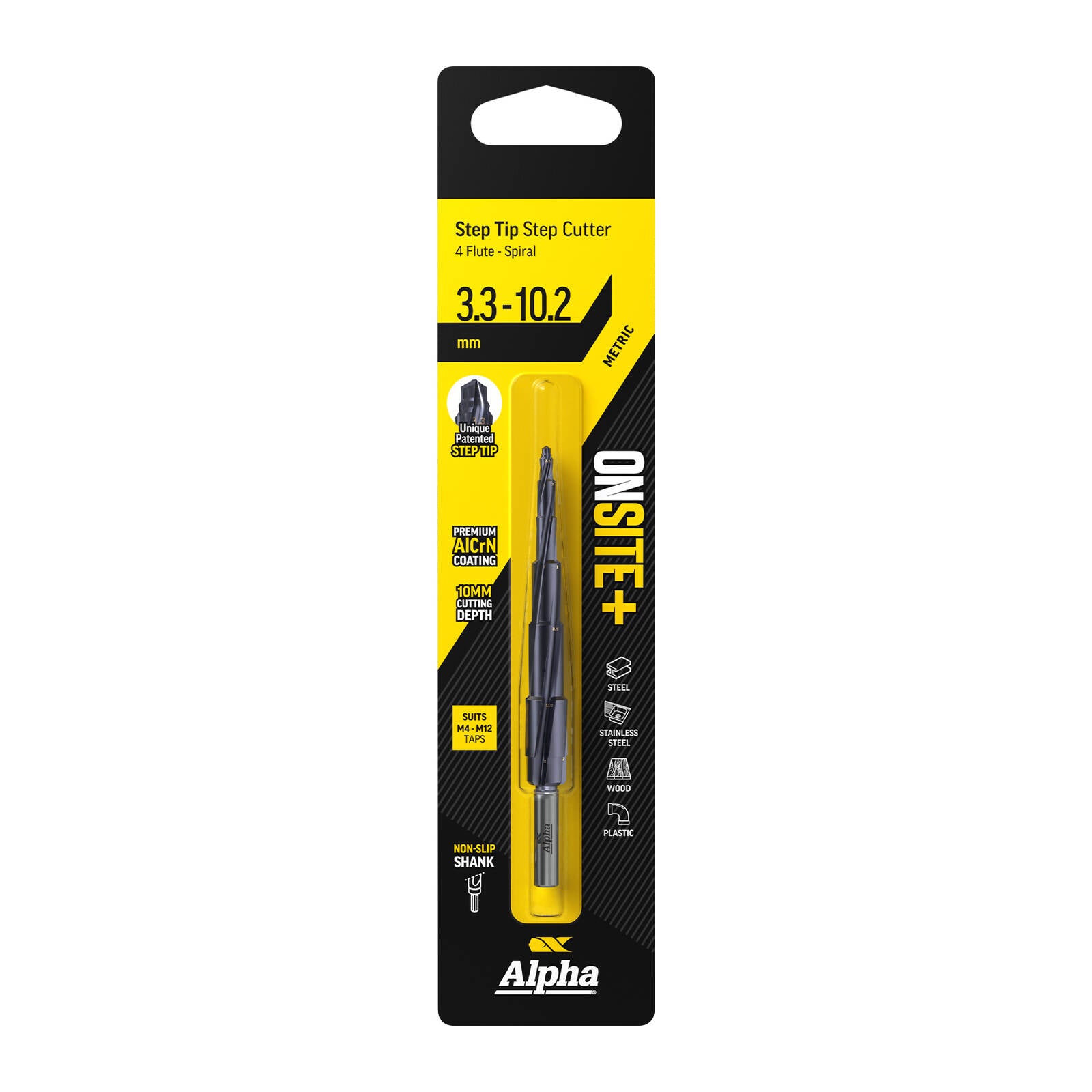

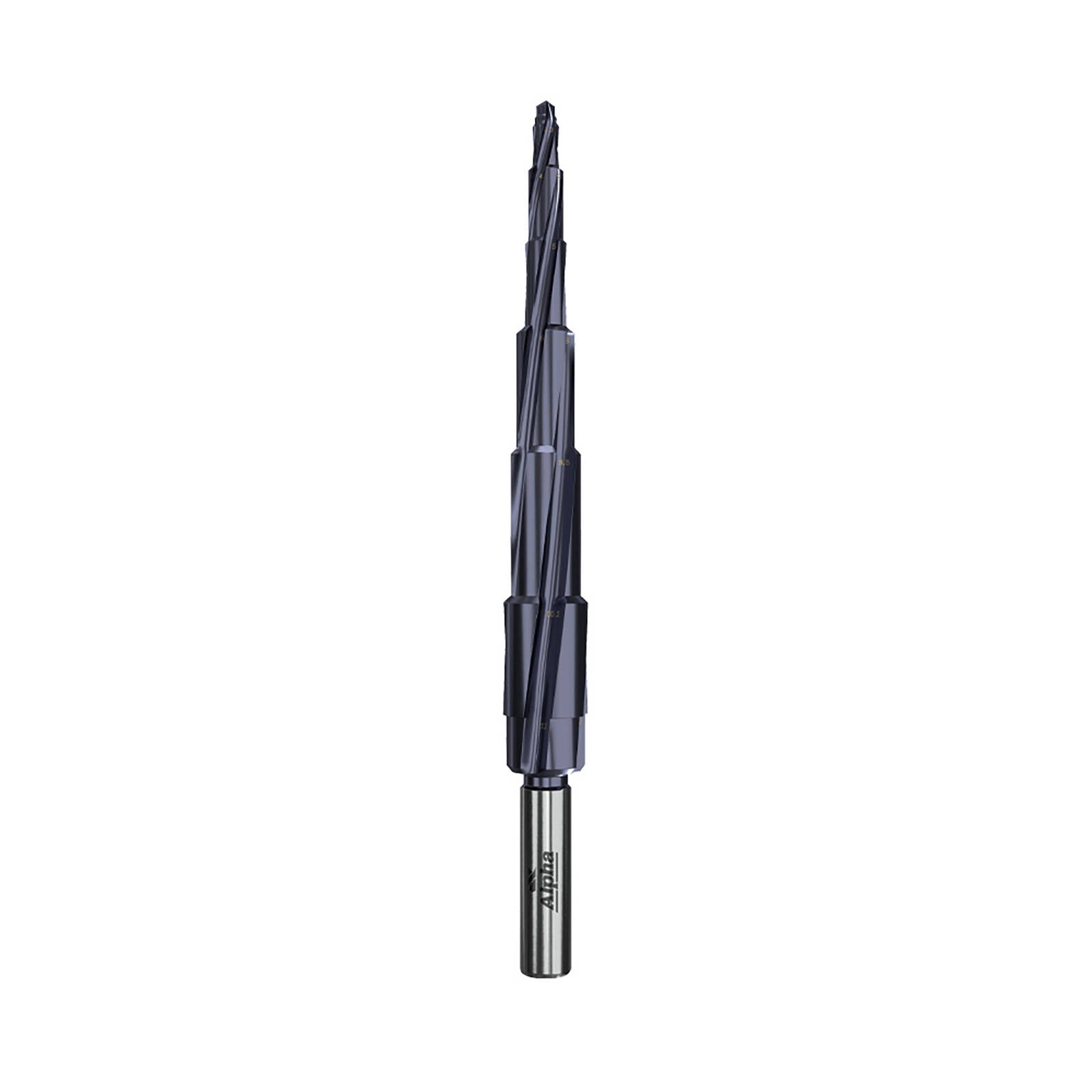

Alpha Onsite+ M4-M12 Step Tip Step Cutter Drill Bit

$133.65 $200.48 -33% OFF
You save: $66.83
Price reduced — was $200.48
✓ We'll notify you when this is back in stock!
Out of Stock
Qty:
14-Day Change-of-Mind Returns
Secure Checkout
Australian Stock
Dispatches within 1-2 business days Australia-wide delivery, typically 2-10 business days
Australian Stock Ships from AU warehouses
We accept:American Express Apple Pay Google Pay Mastercard PayPal Shop Pay Union Pay Visa

Frequently bought together

The Alpha Onsite+ Step Tip Step Cutter is a stepped drill bit covering the M4 to M12 size range in a single tool.

  • Size range: M4-M12
  • Type: Step tip step cutter

The cone of stepped cutting edges drills and enlarges holes through sheet metal and thin material, letting one bit produce several common hole sizes for metalworking and fabrication.

More about this product

Alpha Onsite m4 m12 Step Tip Step Cutter is a high-performance drilling tool designed for efficient drilling in various materials, eliminating the need for pre-drilling.

The Alpha Onsite m4 m12 Step Tip Step Cutter is engineered for maximum efficiency, making it suitable for a range of applications including steel, wood, plastic, and stainless steel. Its patented step tip design allows for quick drilling without the need for a pilot hole, while the AlCrN coating provides exceptional temperature resistance and longevity. With a cutting depth of 10mm, this tool can handle thicker workpieces compared to conventional step drills. The four high-performance cutting edges enable drilling that is six times faster than standard options, and the three-flat shank design prevents spinning, ensuring optimal power transmission. This versatile tool combines multiple functions, reducing the need for additional bits and streamlining your workflow.

Features

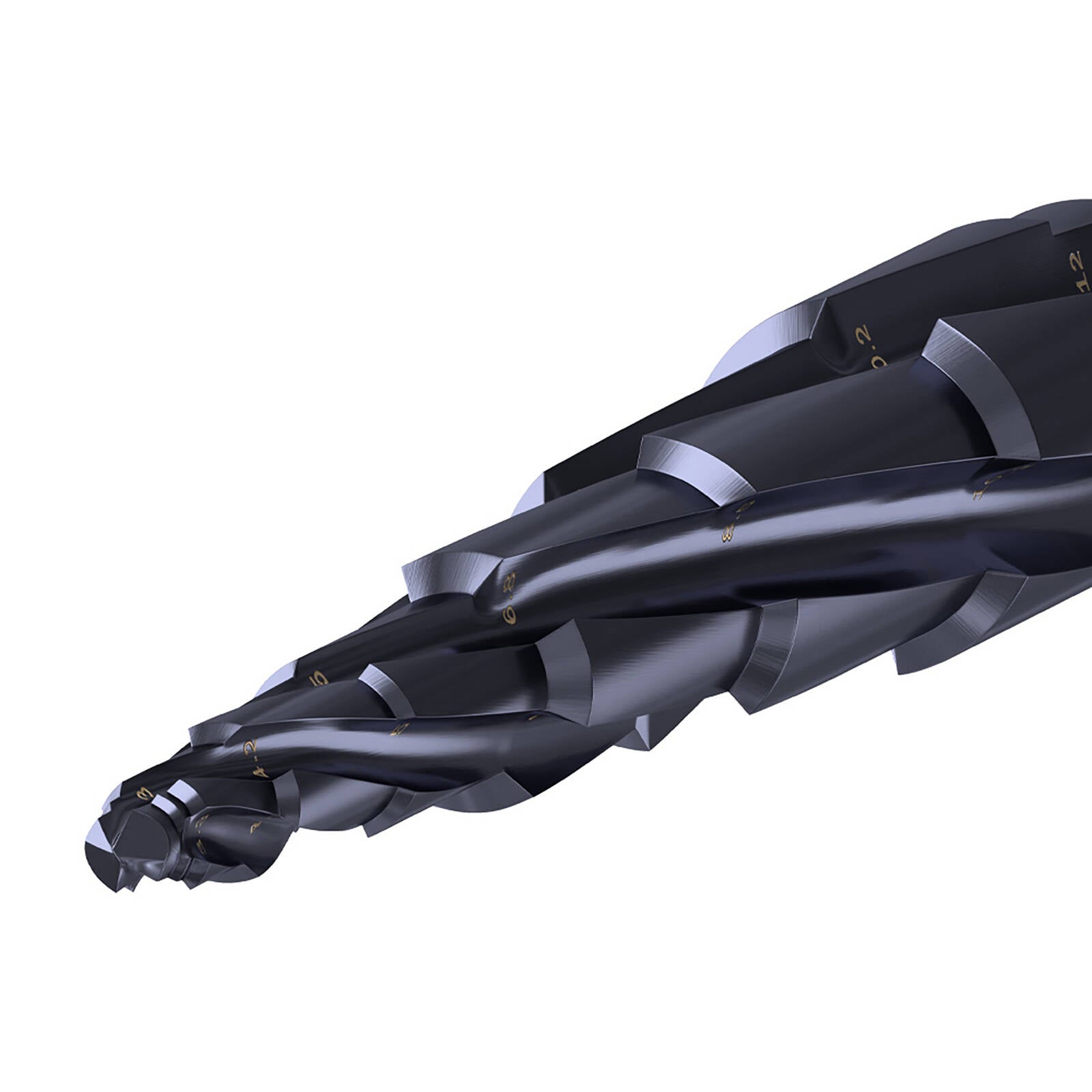

  • Patented step tip design eliminates the need for pre-drilling
  • AlCrN coating for extreme temperature resistance and long service life
  • Four high-performance cutting edges for six times faster drilling
  • Three-flat shank prevents spinning and ensures optimal power transmission
  • 10mm cutting depth suitable for M4-M12 taps with six steps: 3.3, 4.2, 5.0, 6.8, 8.5, and 10.2mm

Specifications

Dimensions (W x H x D) 46mm x 204mm x 11mm
Package Dimensions 70mm x 160mm x 30mm

The Alpha Onsite m4 m12 Step Tip Step Cutter is designed for efficient drilling in various materials.

Questions & Answers

What sizes does it cover?

It steps through the M4 to M12 range.

What is it used for?

Drilling and enlarging holes in sheet metal and thin material.
