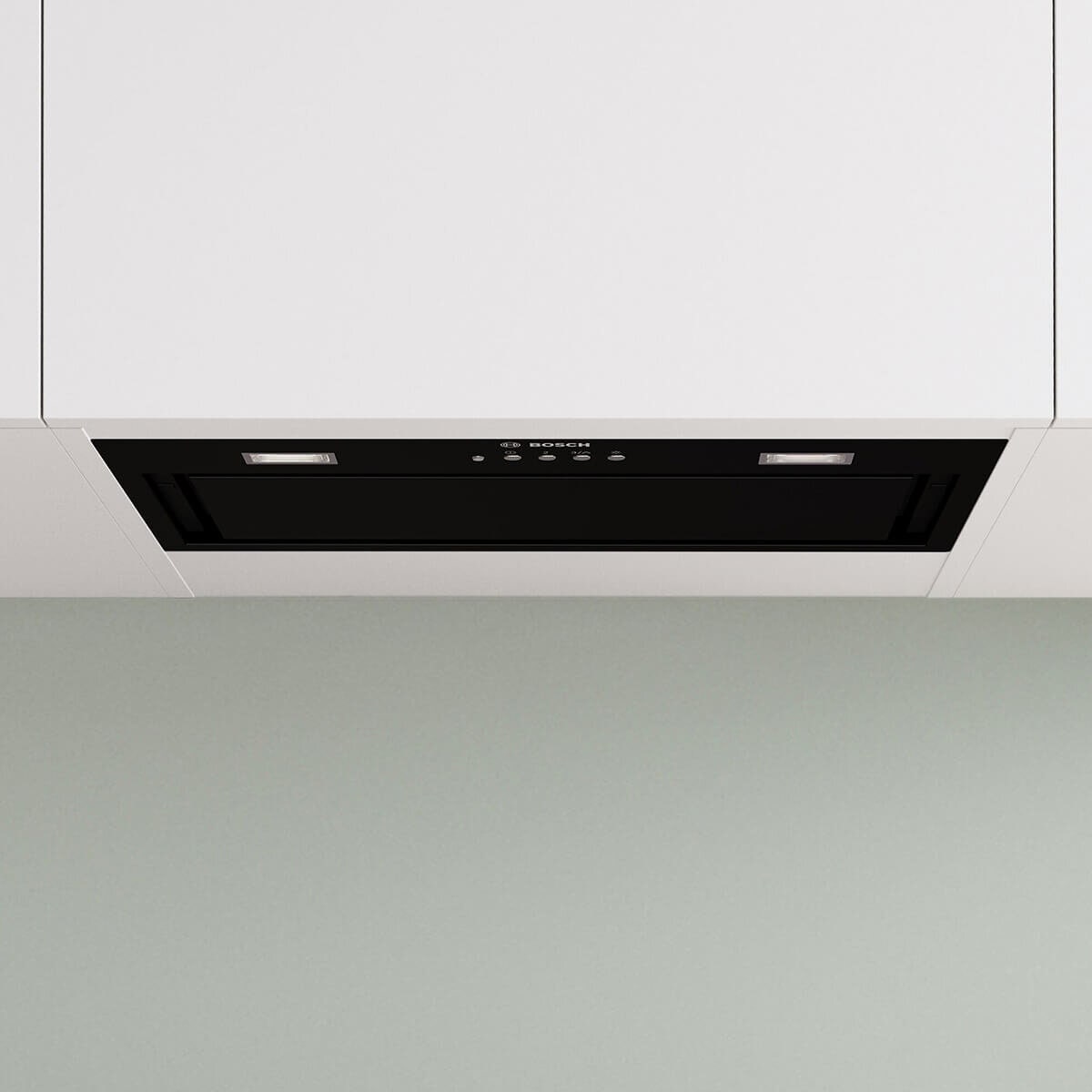

This Bosch Series 6 undermount rangehood is 52cm wide and finished in black, with a near-flush design that sits discreetly in kitchen cabinetry. It suits contemporary induction, ceramic and black-glass gas cooktops.
Key features
-
Strong extraction – up to 570m³/h on the highest normal setting, rising to 645m³/h in intensive mode for ducted extraction.
-
Automatic reset – intensive mode returns to a normal power setting after six minutes.
-

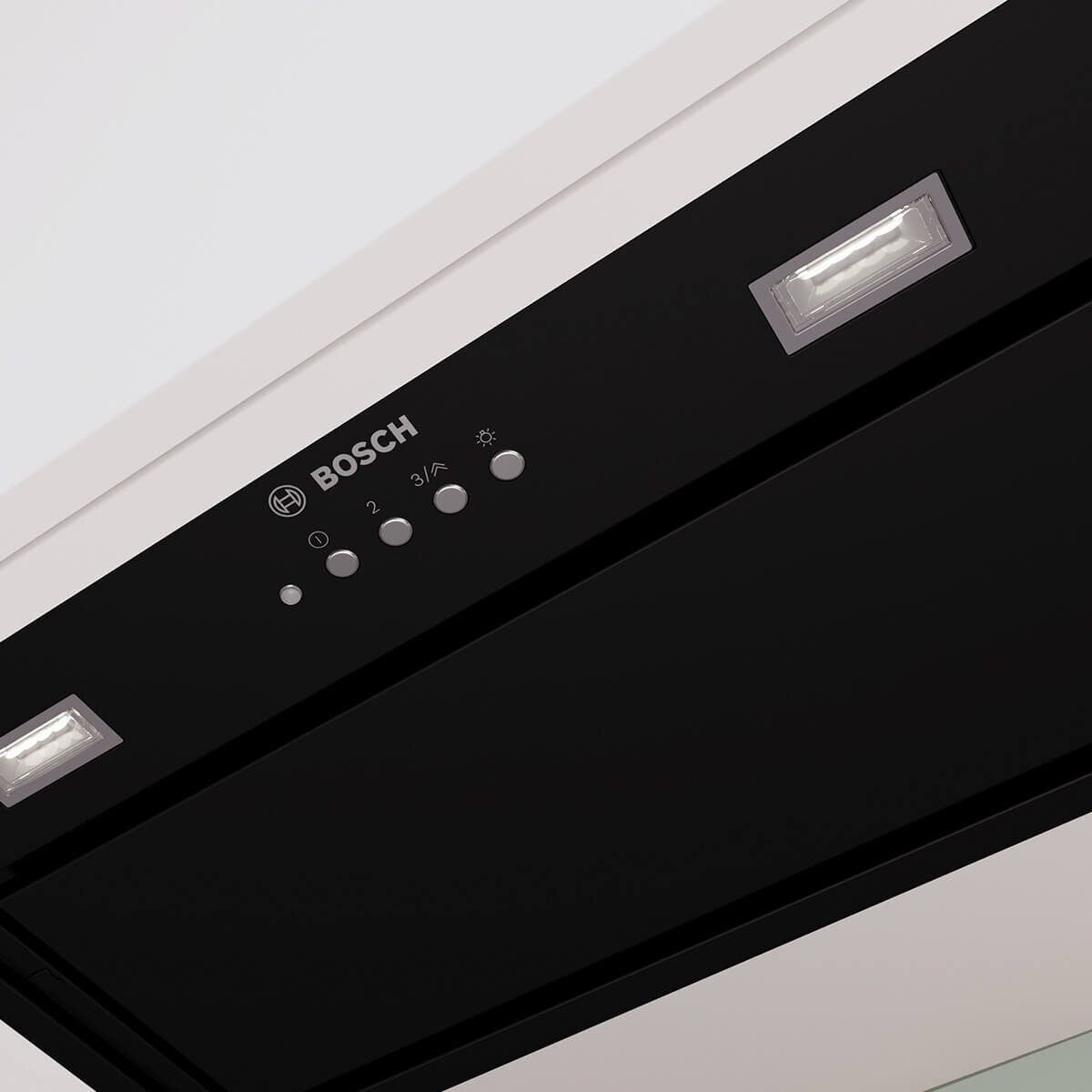

Push-button controls – electronic low-lift push buttons give access to three power settings plus intensive mode.
-
LED lighting – two 1W LED lights provide 4000K illumination and 400 lux across the cooking area.
-
Easy filter care – a washable aluminium grease filter that is dishwasher safe.
-
Flexible ventilation – ducted extraction or recirculating with a compatible optional recirculation kit.
Good to know
- A 1.5m cable, a 150mm outlet with an enclosed 120mm option and a one-way flap support flexible installation.
- It connects with a 10A plug and lead.
- 2 year domestic warranty on all parts and labour. Not intended or designed for commercial use.
Specifications
Overview
| Brand |
Bosch |
| Model number |
DLN56AC60A |
| Product type |
Integrated undermount rangehood |
| Capacity |
645m³/h |
| Colour / finish |
Black fascia panel |

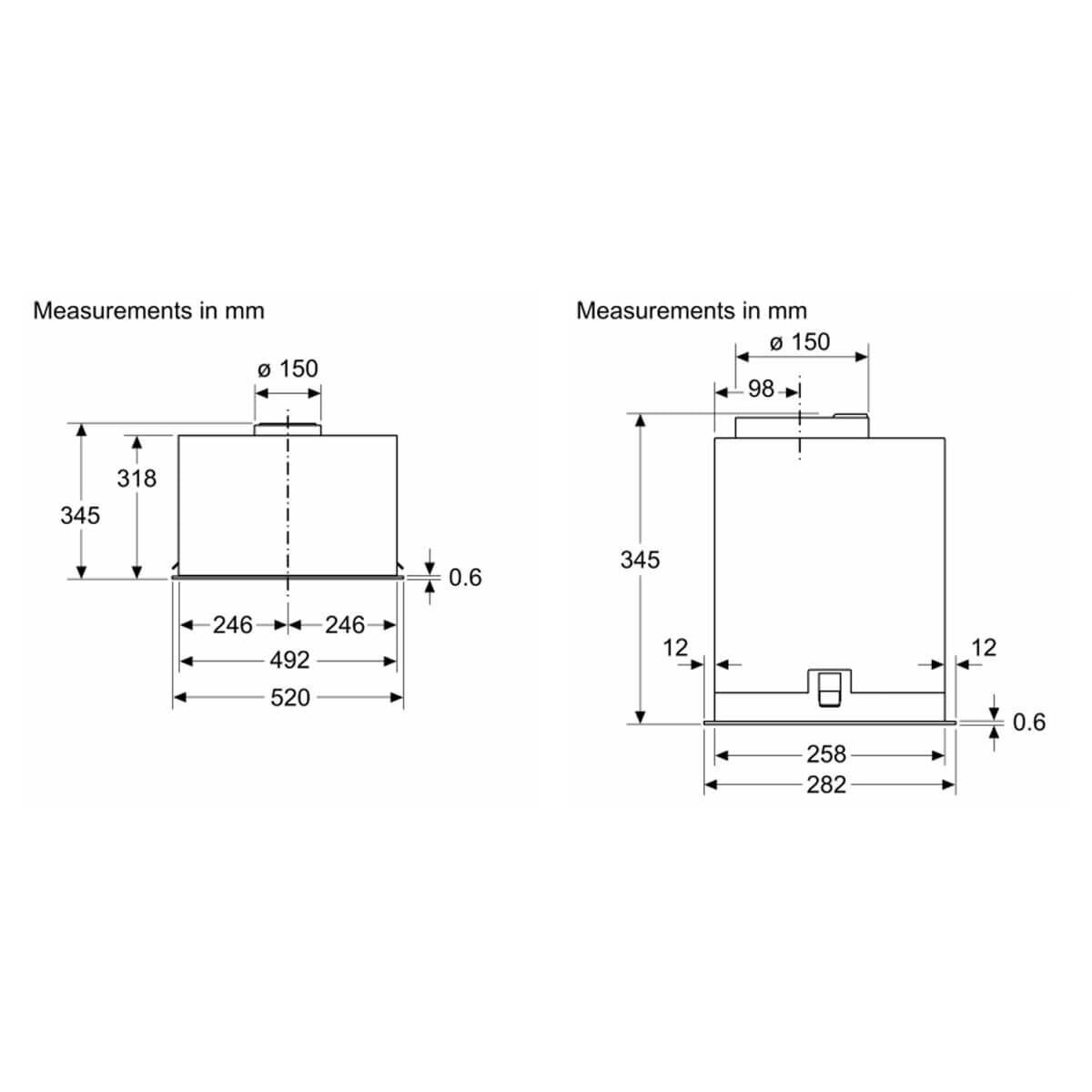

Size & weight
| Height |
345mm |
| Width |
520mm |
| Depth |
282mm |
| Weight |
7.6kg |
Programs & features
| Key functions |
4 fan speeds, boost function, intensive mode automatic reset after six minutes, 2 x 1W LED lights |
| Controls |
Electronic push buttons |
Energy & power
| Noise level |
74dB |
| Power |
252W, 10A plug and lead, 1.5m cord |
Installation & included
| Installation |
Near-flush undermount in cabinetry; ducted or recirculating with optional recirculation kit; 150mm outlet with enclosed 120mm option and one-way flap |
| In the box |
1 x mesh filter |
Warranty & origin
| Warranty |
2 year domestic warranty on all parts and labour |
| Country of origin |
Italy |
