DETA 16A 1 Pole 240V DIN Rail Miniature Circuit Breaker 6661-16B

Name: DETA 16A 1 Pole 240V DIN Rail Miniature Circuit Breaker 6661-16B
Brand: Deta
SKU: ING0167738
Price: 12.24 AUD
Availability: InStock

$12.24 $18.36 -33% OFF

You save: $6.12

Price reduced — was $18.36

Only 5 left!

Dispatches within 1-2 business days Australia-wide delivery, typically 2-10 business days

Australian Stock Ships from AU warehouses

We accept:

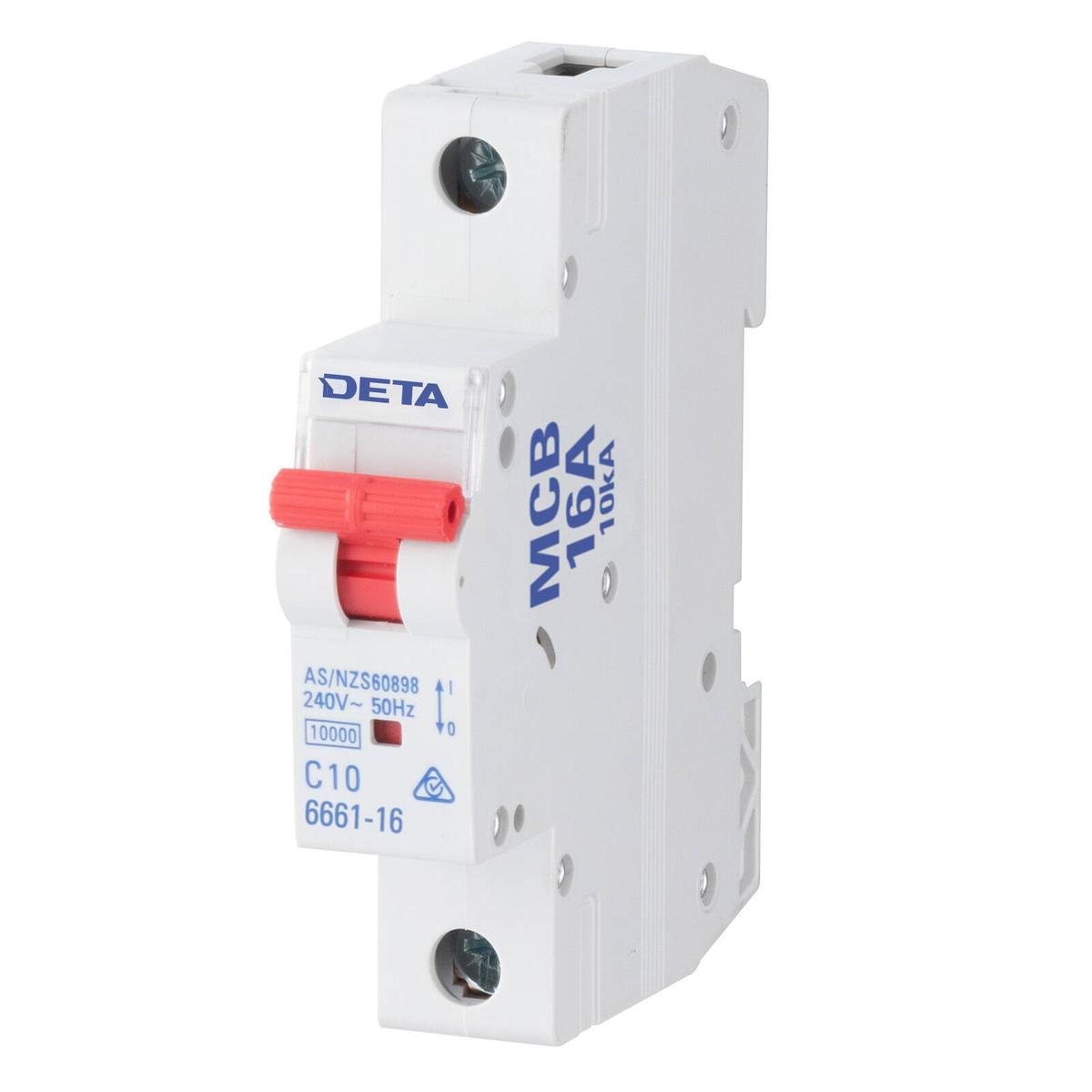

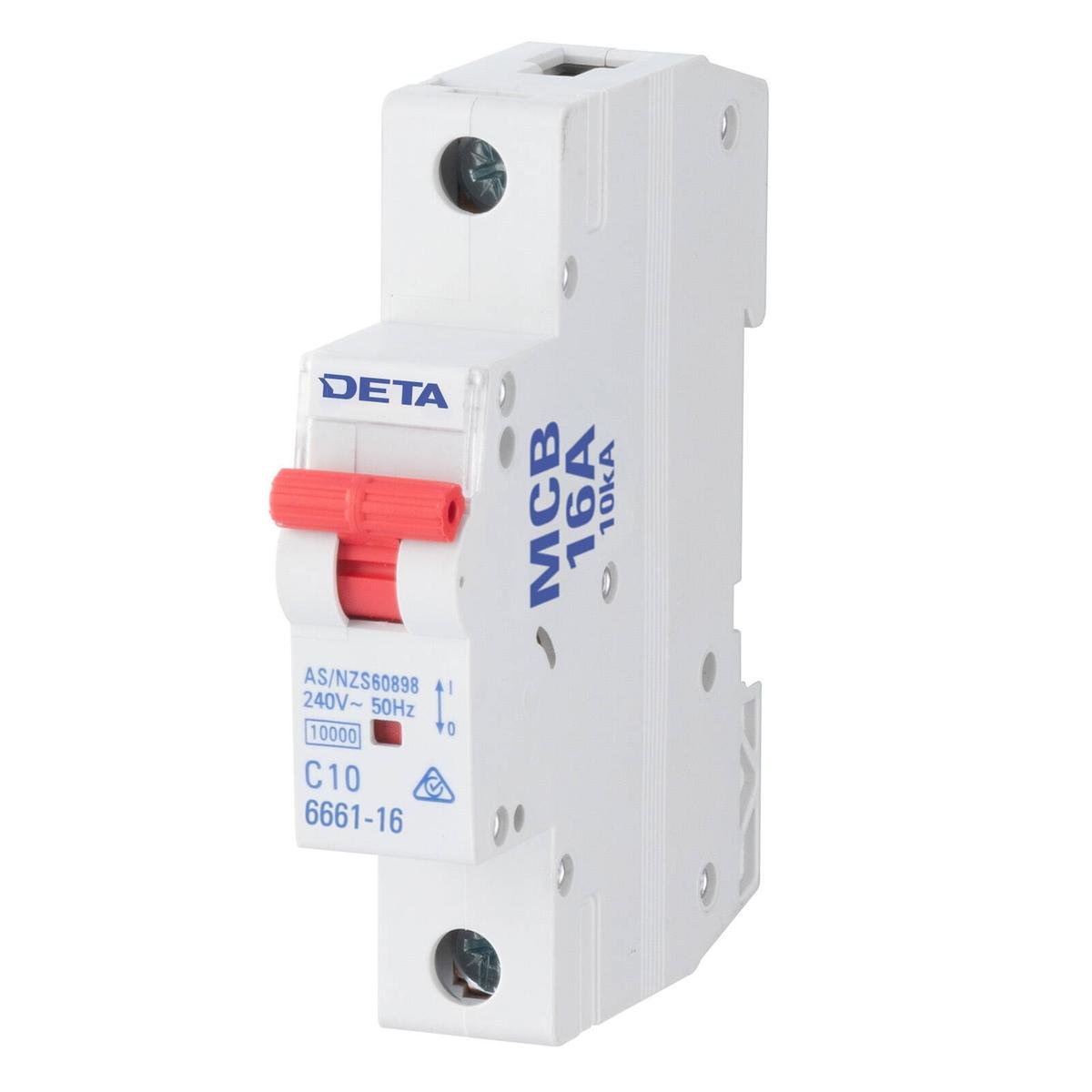

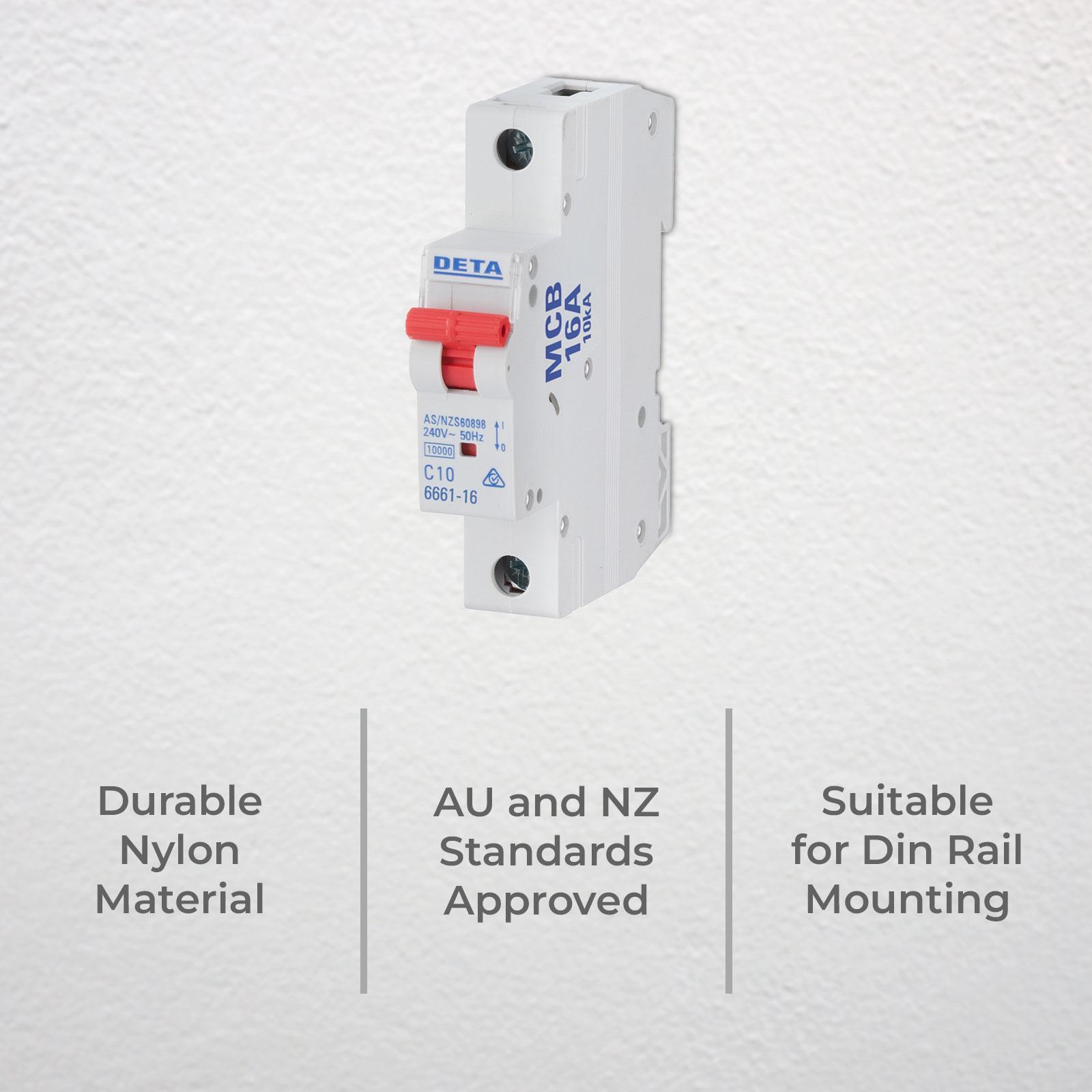

The DETA Miniature Circuit Breaker is a 16A single pole MCB for DIN rail switchboards, providing overcurrent protection.

Rating: 16A
Poles: 1
Type: MCB
Mounting: DIN rail
Voltage: 240V
Material: Nylon
Model: 6661-16B

Install it in a DIN rail switchboard to protect a 16A circuit from overload and short circuit. Electrical work should be carried out by a licensed electrician.

More about this product

Deta 16a Miniature Circuit Breaker is a reliable electrical component designed to protect against overload and short circuit conditions in various applications.

The Deta 16A Miniature Circuit Breaker (MCB) is engineered to safeguard electrical systems from overload and short circuit incidents. With a short circuit capacity of 10kA, this one-pole breaker is 18mm wide and is designed for easy mounting on a 35mm DIN rail. It is suitable for use in both flush and surface-mounted switchboards or enclosures, ensuring versatility in installation. The contact position indicator provides clear visibility of the operational status, making it a practical choice for electrical safety.

Features

10kA short circuit capacity
Contact position indicator for operational status
Easy mounting onto 35mm DIN rail
Protection against overload and short circuit
One pole design, 18mm wide

Specifications

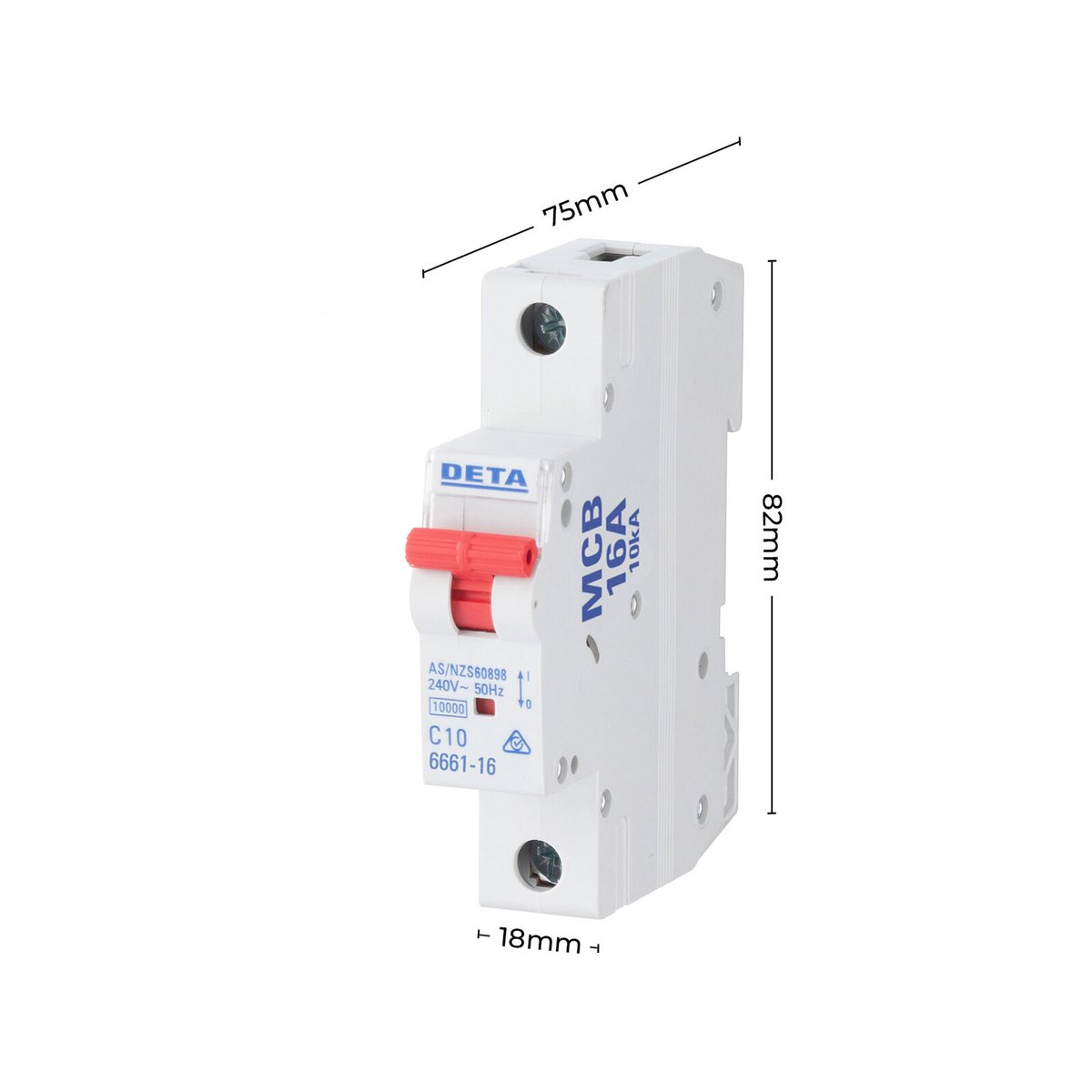

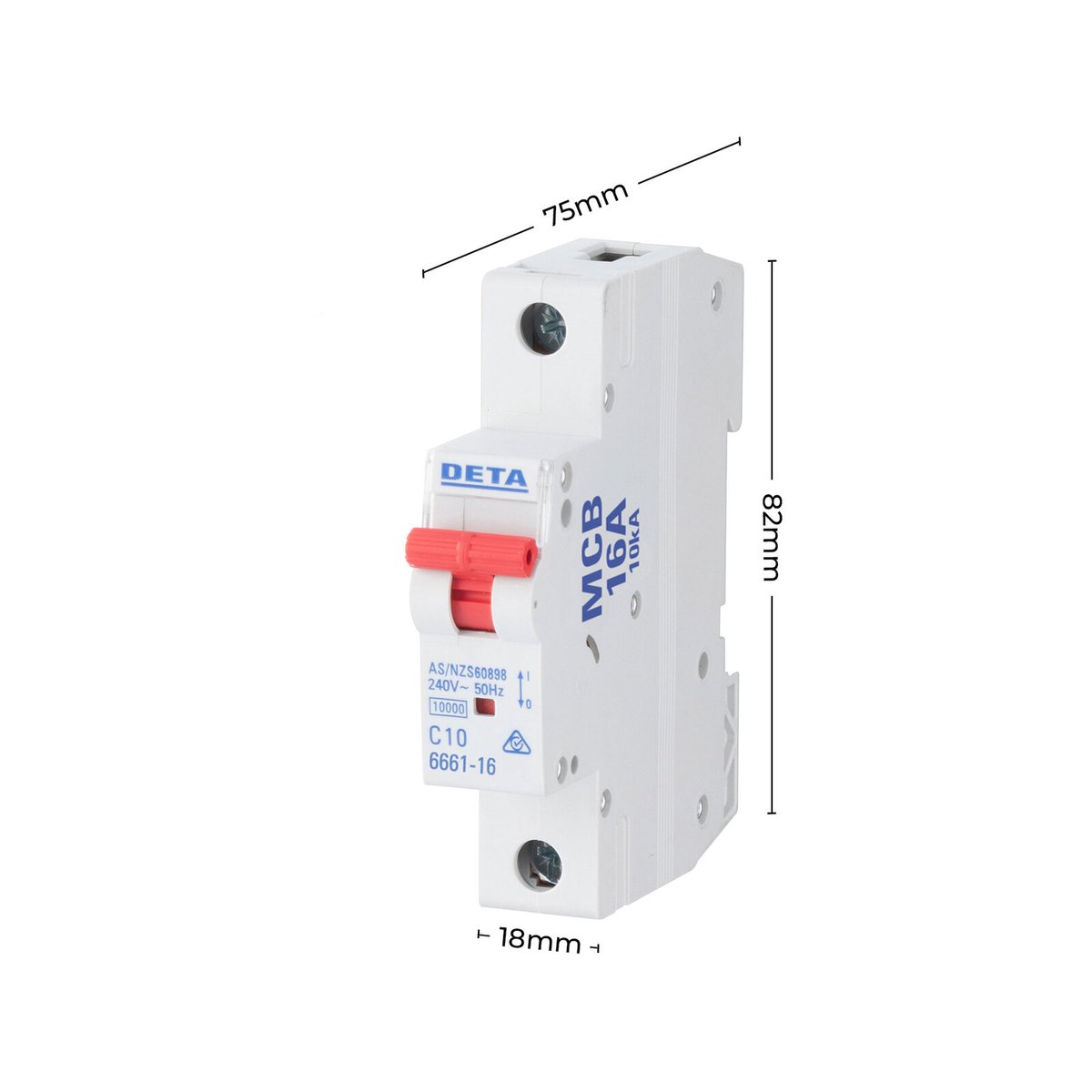

Dimensions (W x H x D)	18mm x 82mm x 75mm
Weight	0.1kg
Material	Nylon
Model Number	6661-16B
Maximum Voltage (volts)	240V
Maximum Amperage (amps)	16A

The Deta 16a Miniature Circuit Breaker is a crucial component for electrical safety and reliability.

Questions & Answers

What is the current rating?

16A, single pole.

How does it mount?

It mounts on a DIN rail and is rated to 240V.

What type of breaker is it?

It is an MCB (miniature circuit breaker).
