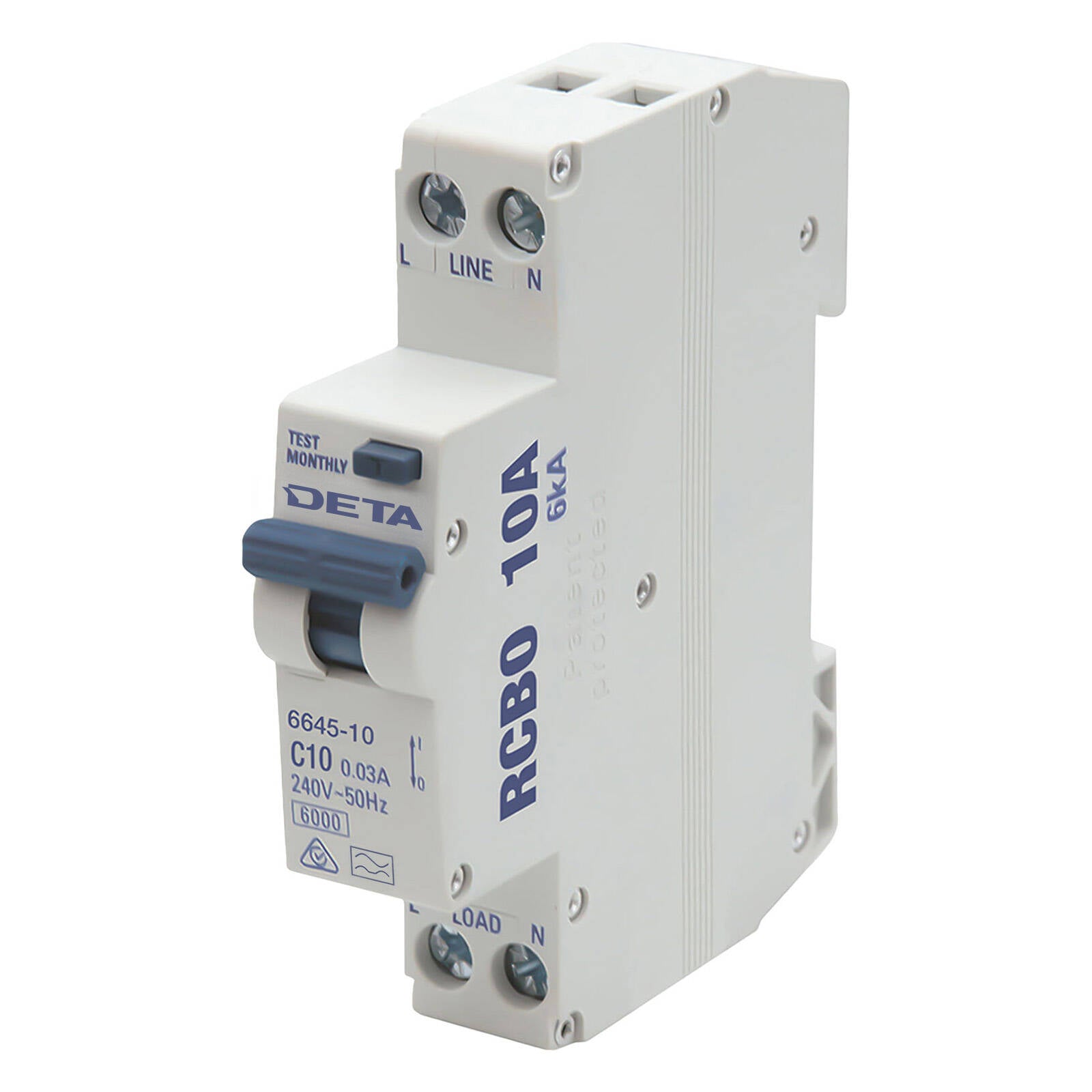

DETA 10A 240V RCBO Residual Circuit Breaker with Overload Protection 6645-10B

Name: DETA 10A 240V RCBO Residual Circuit Breaker with Overload Protection 6645-10B
Brand: Deta
SKU: ING0131969
Price: 69.45 AUD
Availability: InStock

$69.45 $104.18 -33% OFF

You save: $34.73

Price reduced — was $104.18

Only 5 left!

Dispatches within 1-2 business days Australia-wide delivery, typically 2-10 business days

Australian Stock Ships from AU warehouses

We accept:

The DETA 10A RCBO provides both residual current (earth leakage) and overload protection in a single din-rail module.

Model number: 6645-10B
Type: RCBO
Rated current: 10A
Maximum voltage: 240V
Poles: 1
Mounting: Din rail
Material: Nylon PA66
Commercial rated: Yes

Used in switchboards to protect a circuit from both earth leakage faults and current overloads.

More about this product

Deta 10a Residual Circuit Breaker with Overload Protection is designed for residential and commercial use, providing essential protection against earth faults, overloads, and short circuits.

The DETA 10A Residual Circuit Breaker with Overload Protection (RCBO) is engineered to safeguard lighting circuits by detecting earth fault and leakage currents, as well as overloads and short circuits. With a short circuit capacity rating of 6kA, it is compliant with AS/NZS 61009 standards and is suitable for single-phase 1P+N installations. The device is 18mm wide, allowing for easy mounting on a 35mm DIN rail in both flush and surface-mounted switchboards or enclosures, making it a versatile choice for various applications.

Features

Short circuit capacity rating of 6kA for residential and commercial installations
C-type, 30mA type A residual tripping current
Protection against earth fault, leakage current, overload, and short circuit
Easy mounting onto 35mm DIN rail
Compliant with AS/NZS 61009 and ESV listed

Specifications

Dimensions (W x H x D)	18mm x 82mm x 75mm
Weight	0.3kg
Material	Nylon PA66
Model Number	6645-10B
Maximum Voltage	240 volts
Maximum Amperage	10 amps

The Deta 10a Residual Circuit Breaker with Overload Protection ensures reliable electrical safety in various installations.

Questions & Answers

What type of breaker is this?

It is an RCBO, combining RCD (earth leakage) and overload protection in one device.

How is it mounted?

It is din-rail mounted and rated to 240V.

What is its current rating?

It is rated at 10A on a single pole.
