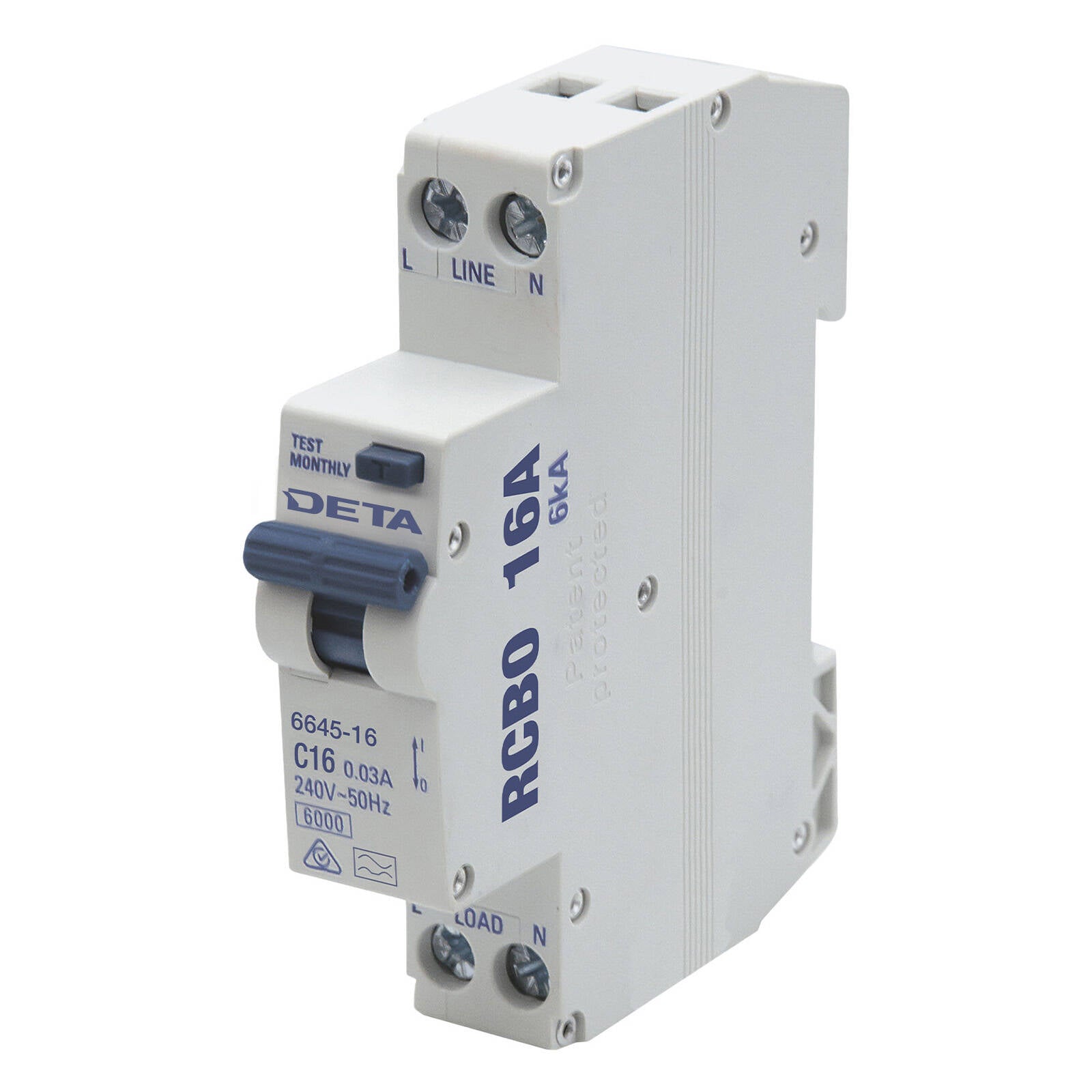

DETA 16A 240V RCBO Residual Circuit Breaker with Overload Protection 6645-16B

$69.45 $104.18 -33% OFF
You save: $34.73
Price reduced — was $104.18
Only 5 left!
Qty:
14-Day Change-of-Mind Returns
Secure Checkout
Australian Stock
Dispatches within 1-2 business days Australia-wide delivery, typically 2-10 business days
Australian Stock Ships from AU warehouses
We accept:American Express Apple Pay Google Pay Mastercard PayPal Shop Pay Union Pay Visa

Frequently bought together

The DETA 16A RCBO provides both residual current (earth leakage) and overload protection in a single din-rail module.

  • Model number: 6645-16B
  • Type: RCBO
  • Rated current: 16A
  • Maximum voltage: 240V
  • Poles: 1
  • Mounting: Din rail
  • Material: Nylon PA66
  • Commercial rated: Yes

Used in switchboards to protect a circuit from both earth leakage faults and current overloads.

More about this product

Deta 16a Residual Circuit Breaker with Overload Protection is designed to safeguard electrical circuits from earth faults, overloads, and short circuits in residential and commercial settings.

The DETA 16A Residual Circuit Breaker with Overload Protection (RCBO) is engineered to provide reliable protection against earth fault/leakage current, overload, and short circuit conditions. With a short circuit capacity rating of 6kA, it is suitable for both residential and commercial installations. This device features a C-type, 30mA type A residual tripping current and is designed for easy mounting onto a 35mm DIN rail. The compact design, measuring 18mm in width, allows for installation in flush or surface-mounted switchboards or enclosures, ensuring compliance with AS/NZS 61009 standards and ESV listing.

Features

  • Short circuit capacity rating of 6kA for residential and commercial use
  • C-type, 30mA type A residual tripping current
  • Protection against earth fault/leakage current, overload, and short circuit
  • Easy mounting onto 35mm DIN rail
  • Single phase 1P+N, compliant with AS/NZS 61009

Specifications

Dimensions (W x H x D) 18mm x 82mm x 75mm
Weight 0.3kg
Material Nylon PA66
Model Number 6645-16B
Maximum Voltage 240 volts
Maximum Amperage 16 amps

The Deta 16a Residual Circuit Breaker with Overload Protection is essential for ensuring electrical safety in various applications.

Questions & Answers

What type of breaker is this?

It is an RCBO, combining RCD (earth leakage) and overload protection in one device.

How is it mounted?

It is din-rail mounted and rated to 240V.

What is its current rating?

It is rated at 16A on a single pole.
