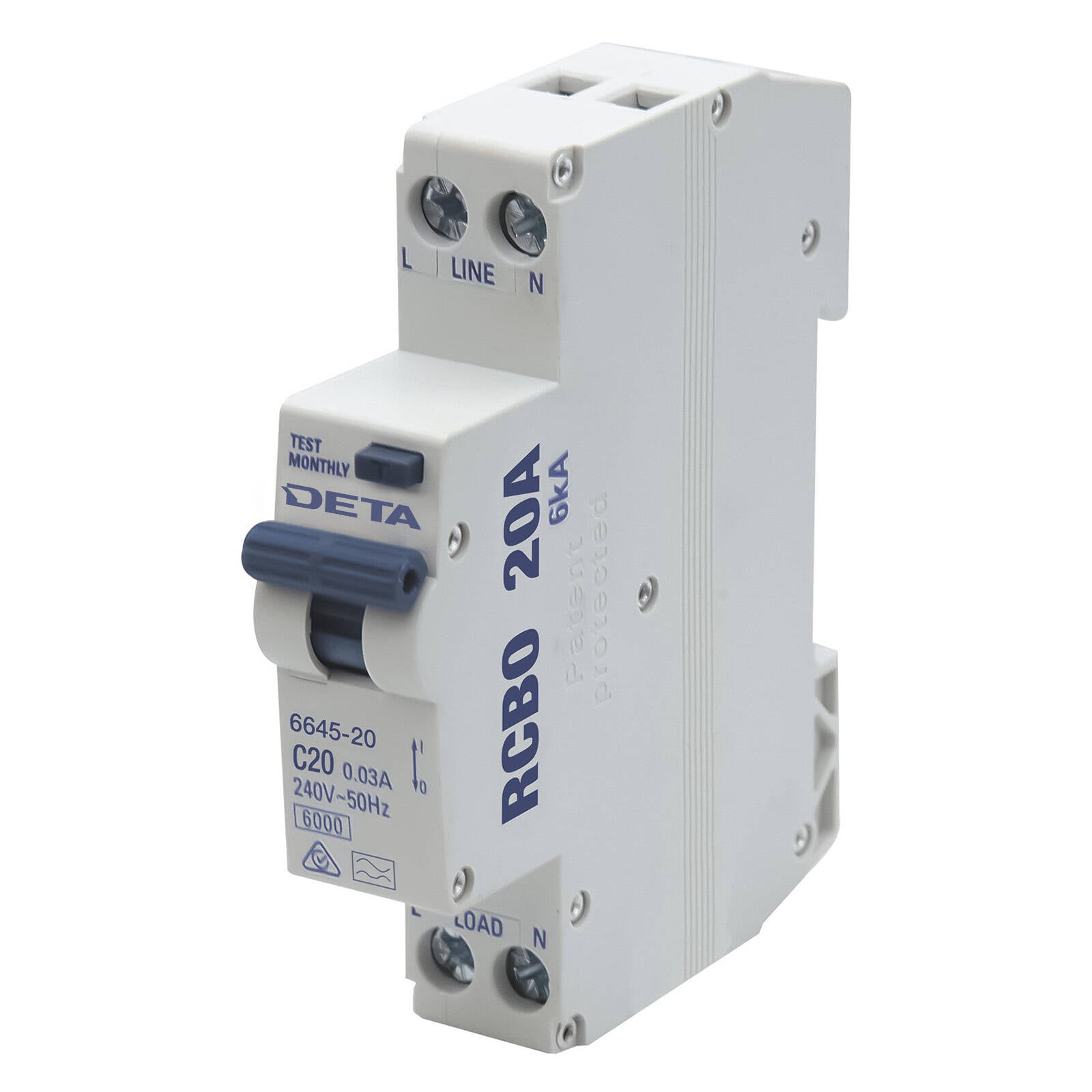

DETA 20A 240V RCBO Residual Circuit Breaker with Overload Protection 6645-20B

★★★★★
53 reviews · 476+ sold
$69.45 $104.18 -33% OFF
You save: $34.73
Price reduced — was $104.18
11 people bought this in the last week
3 people have this in their cart right now
🔥 88% claimed — only 5 left at this price!
Only 5 left!
Qty:
30-Day Returns
Secure Checkout
Australian Stock
Last purchased 14 minutes ago by someone in Brisbane
Ships in 1-2 business days Australia-wide delivery
Australian Stock Ships from AU warehouses
We accept:American Express Apple Pay Google Pay Mastercard PayPal Shop Pay Union Pay Visa

The DETA 20A RCBO provides both residual current (earth leakage) and overload protection in a single din-rail module.

  • Model number: 6645-20B
  • Type: RCBO
  • Rated current: 20A
  • Maximum voltage: 240V
  • Poles: 1
  • Mounting: Din rail
  • Material: Nylon PA66
  • Commercial rated: Yes

Used in switchboards to protect a circuit from both earth leakage faults and current overloads.

More about this product

Deta 20a Residual Circuit Breaker with Overload Protection is designed to safeguard electrical circuits from earth faults, overloads, and short circuits in residential and commercial settings.

The Deta 20A Residual Circuit Breaker with Overload Protection (RCBO) is engineered to provide reliable protection against earth fault/leakage currents, overloads, and short circuits. With a short circuit capacity rating of 6kA, it is suitable for both residential and commercial installations. This device features a C-type, 30mA type A residual tripping current and is designed for easy mounting onto a 35mm DIN rail. It operates on a single-phase 1P+N configuration and complies with AS/NZS 61009 standards, making it an ideal choice for hot water and power circuits. The compact design, measuring 18mm in width, allows for installation in flush or surface-mounted switchboards or enclosures.

Features

  • Short circuit capacity rating of 6kA for residential and commercial use
  • C-type, 30mA type A residual tripping current
  • Protection against earth fault/leakage current, overload, and short circuit
  • Easy mounting onto 35mm DIN rail
  • Single phase 1P+N, compliant with AS/NZS 61009 and ESV listed

Specifications

Dimensions (W x H x D) 18mm x 82mm x 75mm
Weight 0.3kg
Material Nylon PA66
Model Number 6645-20B
Maximum Voltage 240 volts
Maximum Amperage 20 amps

Deta 20a Residual Circuit Breaker with Overload Protection ensures safety in electrical installations.

Questions & Answers

What type of breaker is this?

It is an RCBO, combining RCD (earth leakage) and overload protection in one device.

How is it mounted?

It is din-rail mounted and rated to 240V.

What is its current rating?

It is rated at 20A on a single pole.
