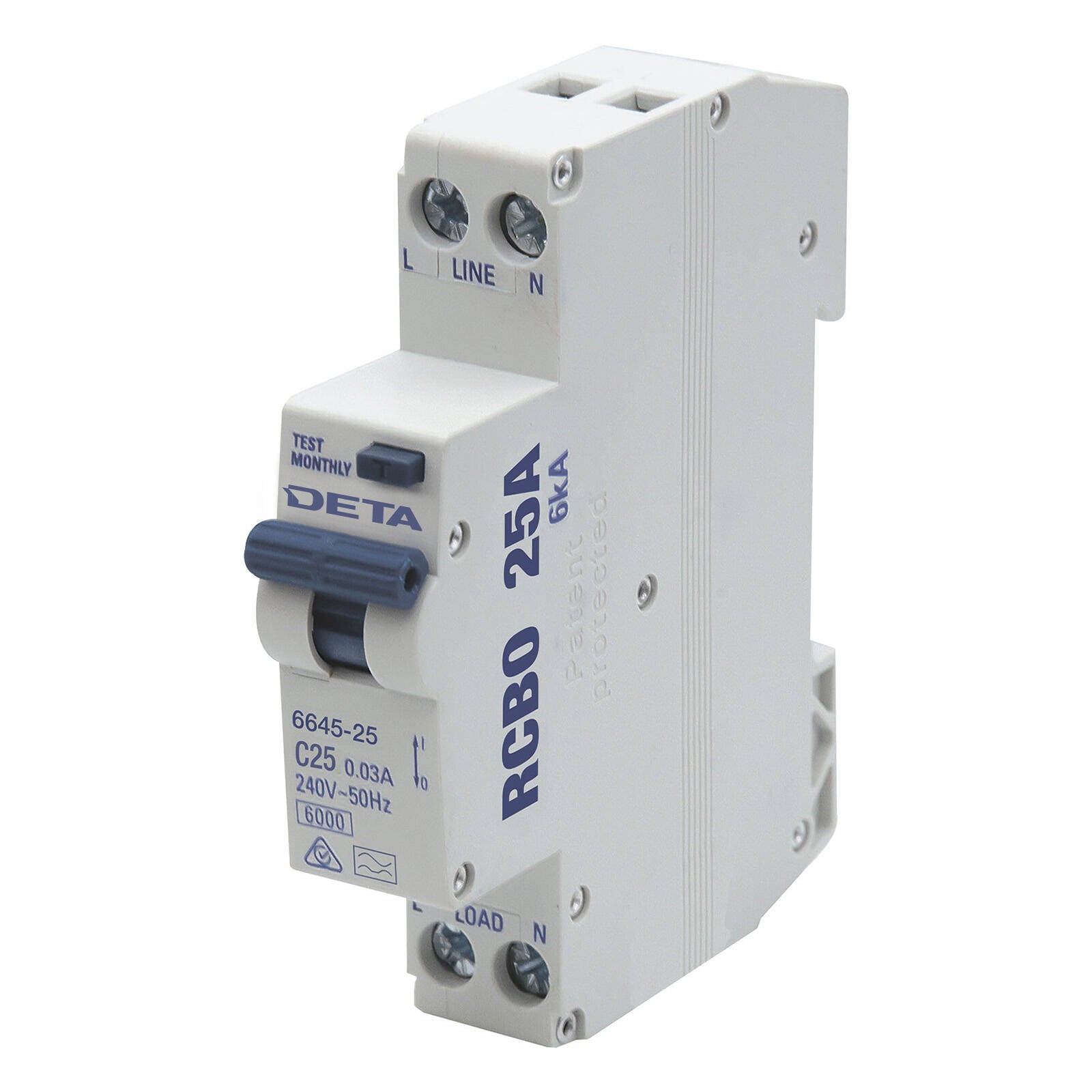

The DETA 25A RCBO provides both residual current (earth leakage) and overload protection in a single din-rail module.

Model number: 6645-25B
Type: RCBO
Rated current: 25A
Maximum voltage: 240V
Poles: 1
Mounting: Din rail
Material: Nylon PA66
Commercial rated: Yes

Used in switchboards to protect a circuit from both earth leakage faults and current overloads.

More about this product

Deta 25a Residual Circuit Breaker with Overload Protection is designed for residential and commercial applications, providing essential protection against electrical faults.

The DETA 25A Residual Circuit Breaker with Overload Protection (RCBO) is engineered to safeguard against earth fault/leakage current, overload, and short circuits. With a short circuit capacity rating of 6kA, it is suitable for both hot water and power circuits. This device features a C-type, 30mA residual tripping current and is designed for easy mounting onto a 35mm DIN rail. It complies with AS/NZS 61009 standards and is ESV listed, making it a reliable choice for flush or surface-mounted switchboards and enclosures.

Features

Short circuit capacity rating of 6kA for residential and commercial installations
C-type, 30mA type A residual tripping current
Protection against earth fault/leakage current, overload, and short circuit
Easy mounting onto 35mm DIN rail
Single phase 1P+N, compliant with AS/NZS 61009 and ESV listed

Specifications

Dimensions (W x H x D)	18mm x 82mm x 75mm
Weight	0.3kg
Material	Nylon PA66
Model Number	6645-25B
Maximum Voltage	240 volts
Maximum Amperage	25 amps

The Deta 25a Residual Circuit Breaker with Overload Protection is a reliable solution for electrical safety.

Questions & Answers

What type of breaker is this?

It is an RCBO, combining RCD (earth leakage) and overload protection in one device.

How is it mounted?

It is din-rail mounted and rated to 240V.

What is its current rating?

It is rated at 25A on a single pole.
