DETA 32A Residual Circuit Breaker With Overload Protection 240V RCBO Din Rail 6645-32b

Name: DETA 32A Residual Circuit Breaker With Overload Protection 240V RCBO Din Rail 6645-32b
Brand: Deta
SKU: ING0131973
Price: 69.45 AUD
Availability: InStock

$69.45 $104.18 -33% OFF

You save: $34.73

Price reduced — was $104.18

Only 5 left!

Dispatches within 1-2 business days Australia-wide delivery, typically 2-10 business days

Australian Stock Ships from AU warehouses

We accept:

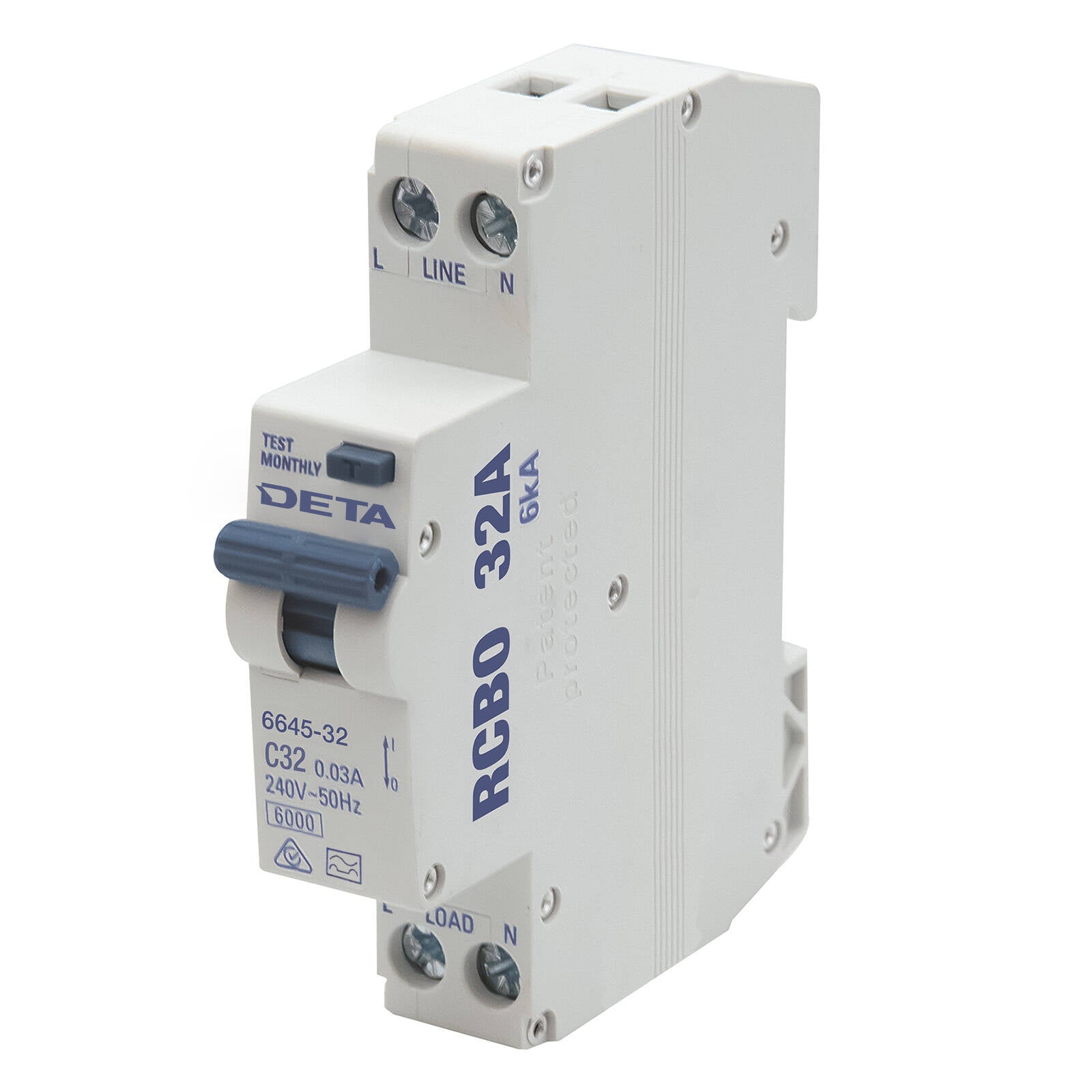

The DETA 6645-32b is a 32A RCBO — a residual current device and overload circuit breaker combined in one din rail module, protecting a circuit from earth leakage, overload and short circuit.

Current rating: 32A
Voltage: 240V
Type: RCBO (safety switch + circuit breaker)
Poles: Single pole, din rail mount
Width: 18mm single module, 6kA breaking capacity
Housing: Nylon PA66, commercial rated

Used in household and commercial switchboards to protect power circuits while guarding people against electric shock. Installation must be carried out by a licensed electrician.

More about this product

Deta 32a Residual Circuit Breaker with Overload Protection is designed for effective protection against earth faults, overloads, and short circuits in various installations.

The Deta 32A Residual Circuit Breaker with Overload Protection (RCBO) is suitable for both residential and industrial applications. It features a short circuit capacity rating of 6kA and a 30mA type A residual tripping current, ensuring reliable protection against earth fault and leakage currents. This single-phase device is compliant with AS/NZS 61009 standards and is ESV listed. With a compact design of 18mm width, it can be easily mounted onto a 35mm DIN rail, making it ideal for flush or surface-mounted switchboards and enclosures.

Features

Short circuit capacity rating of 6kA
30mA type A residual tripping current
Suitable for residential and industrial installations
Protects against earth fault, leakage current, overload, and short circuit
Easy mounting onto 35mm DIN rail

Specifications

Dimensions (W x H x D)	18mm x 82mm x 75mm
Weight	0.3kg
Material	Nylon PA66
Model Number	6645-32b
Maximum Voltage	240 volts
Maximum Amperage	32 amps

The Deta 32a Residual Circuit Breaker with Overload Protection is an essential component for electrical safety.
