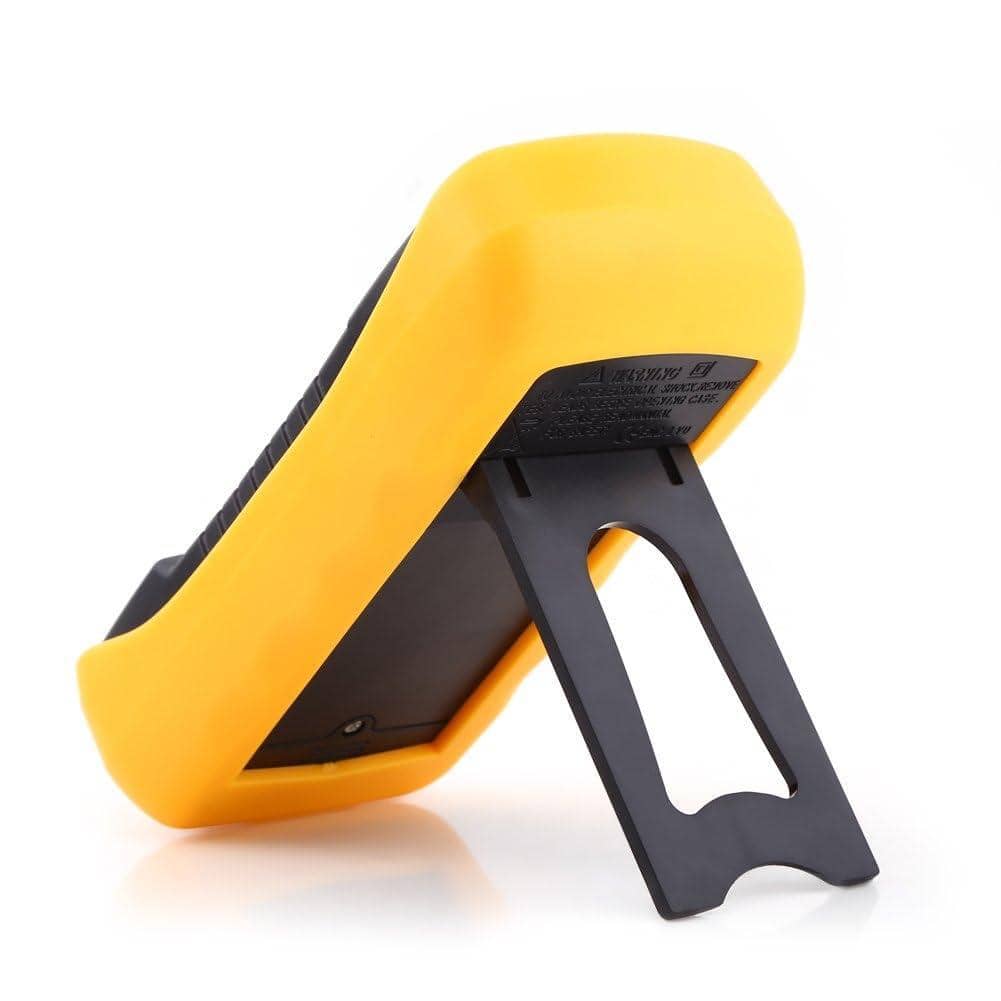

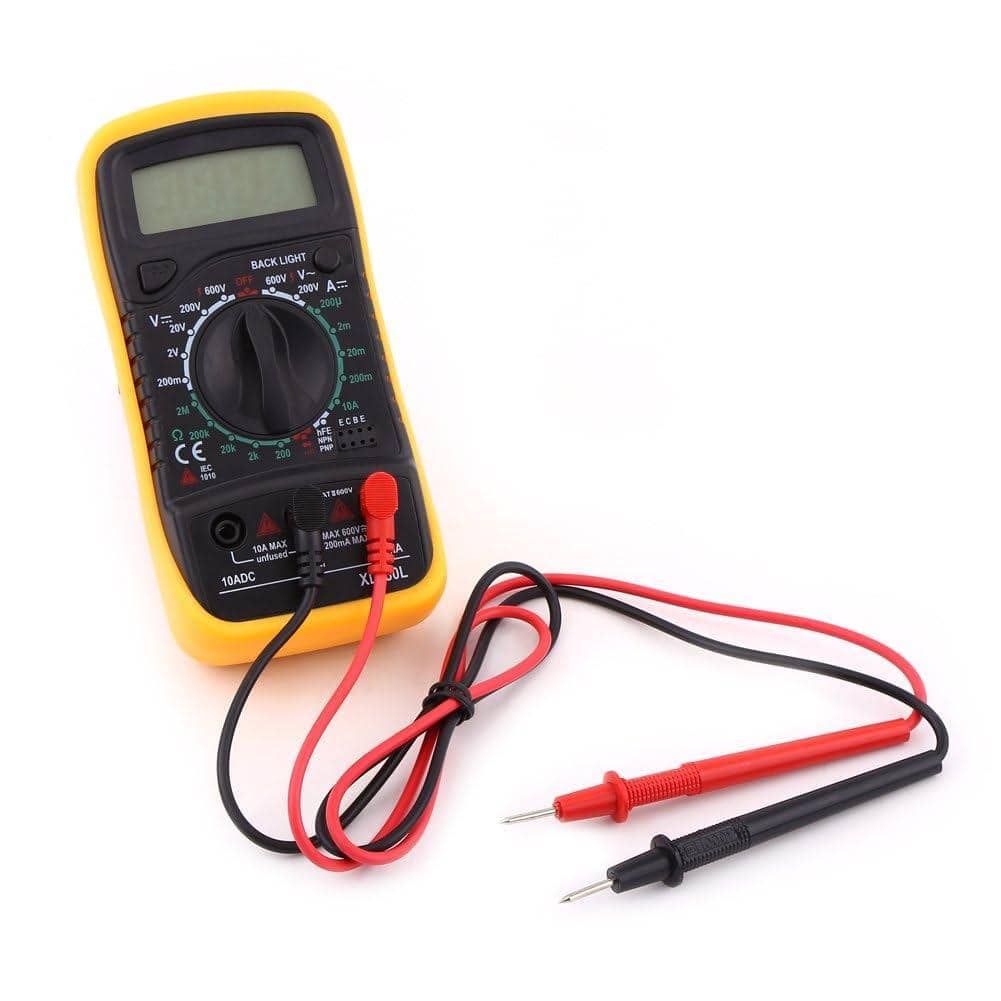

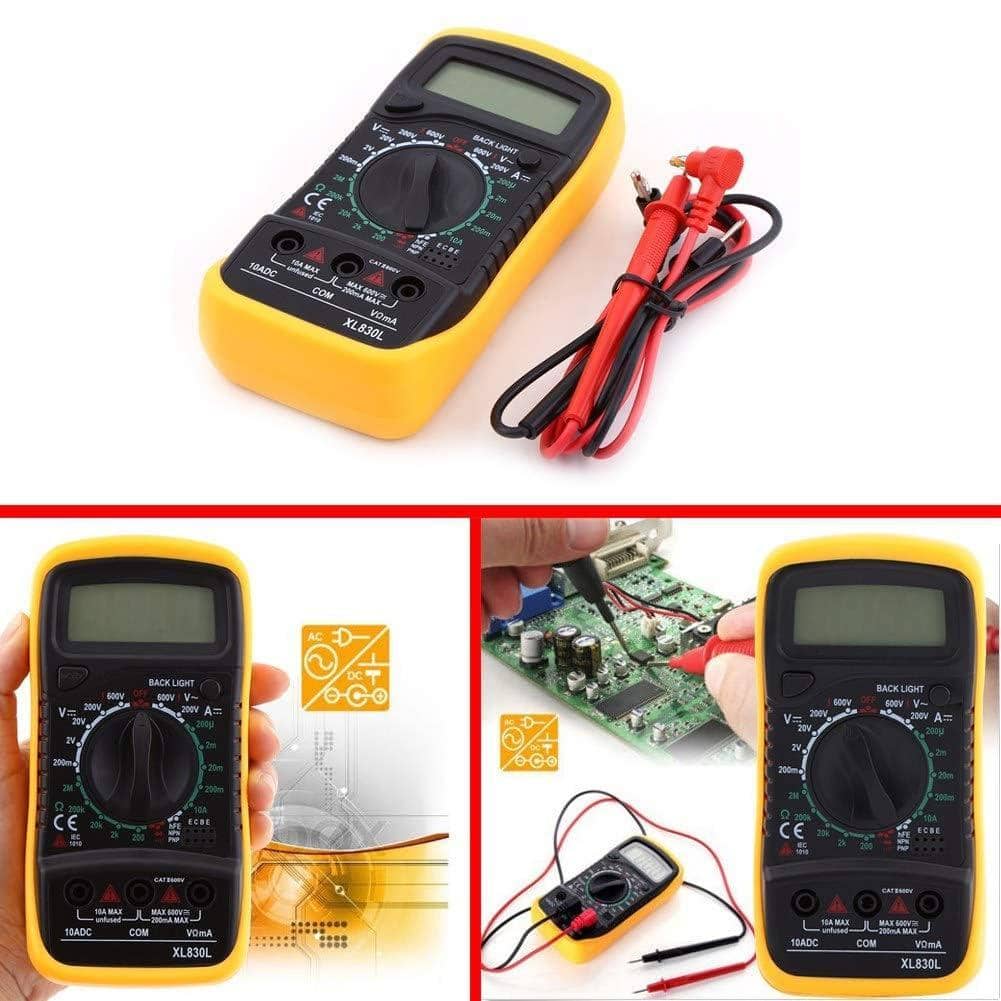

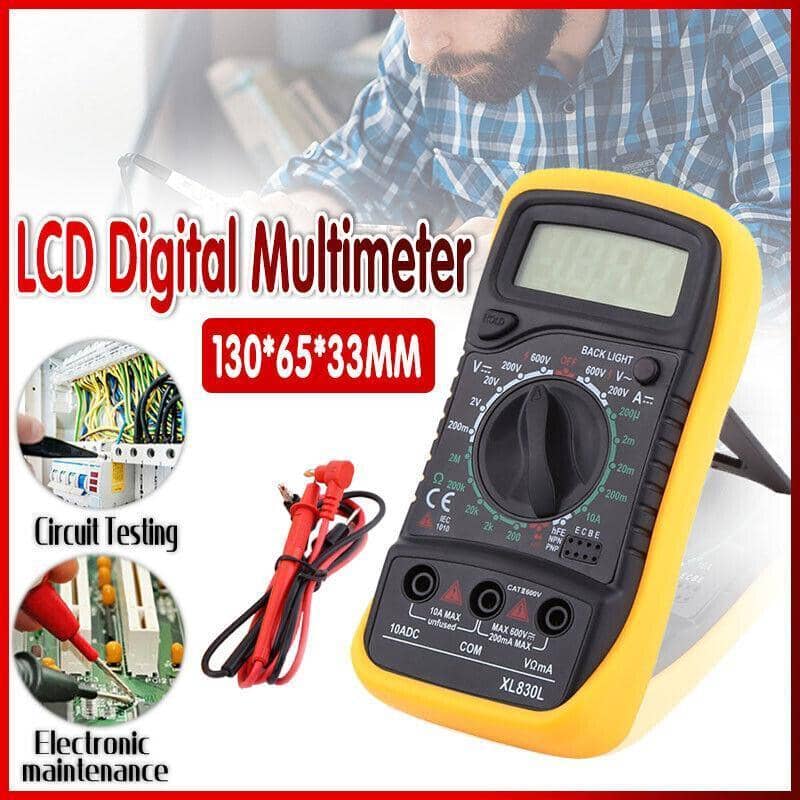

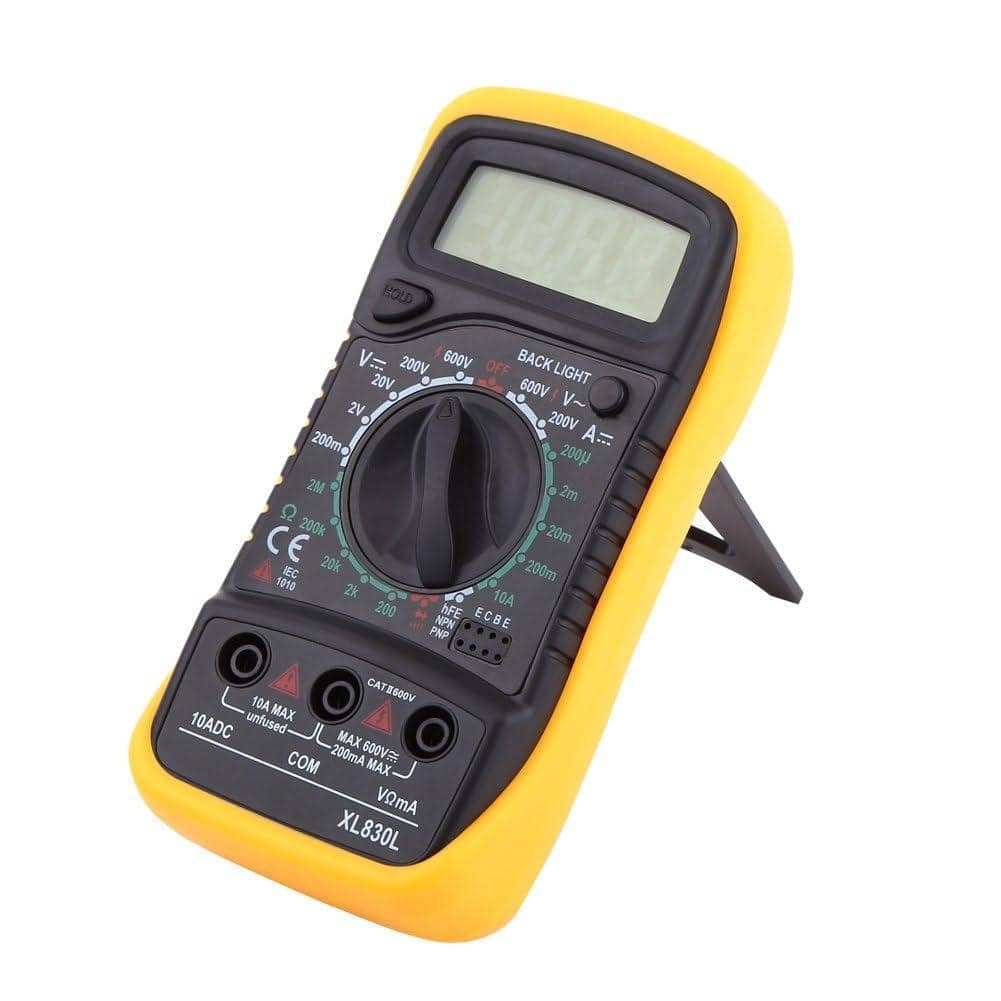

Digital Multimeter with Backlight and Test Leads

This digital multimeter measures AC and DC voltage, DC current and resistance. Its handheld design includes a backlight, with standard and crocodile clip test leads supplied for testing.

Features

• Combines voltage, current and resistance measurements in one handheld meter.
• Diode and transistor test functions support component checks.
• Backlit display helps make readings visible.
• Two lead sets provide standard probes and crocodile clip connections.

Specifications

• Display: 3½-digit digital display
• DC voltage ranges: 2 V, 20 V, 200 V, 600 V
• AC voltage ranges: 200 V, 600 V
• DC current ranges: 20 µA, 200 µA, 2 mA, 20 mA, 200 mA, 10 A
• Resistance ranges: 200 Ω, 2 kΩ, 20 kΩ, 200 kΩ, 2 MΩ
• Additional tests: Diode and transistor
• Weight: 188 g

Package includes

• 1 digital multimeter
• 1 set of black and red test leads
• 1 set of black and red test leads with crocodile clips
