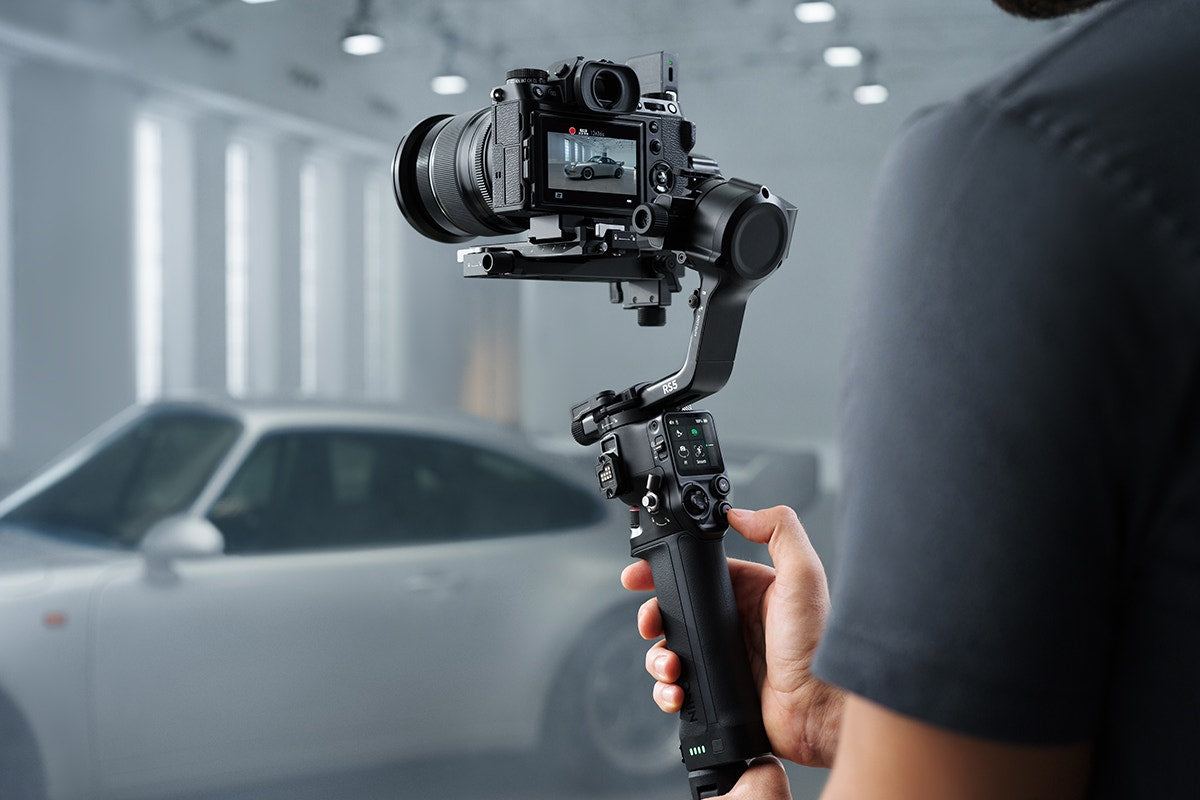

Take camera movement control further with the DJI RS 5 Combo, designed for creators who need professional stabilisation, flexible setup options and a more complete filmmaking kit. It combines precision balancing, smart tracking and long battery life for a stronger overall shooting experience.
Precision and convenience combined

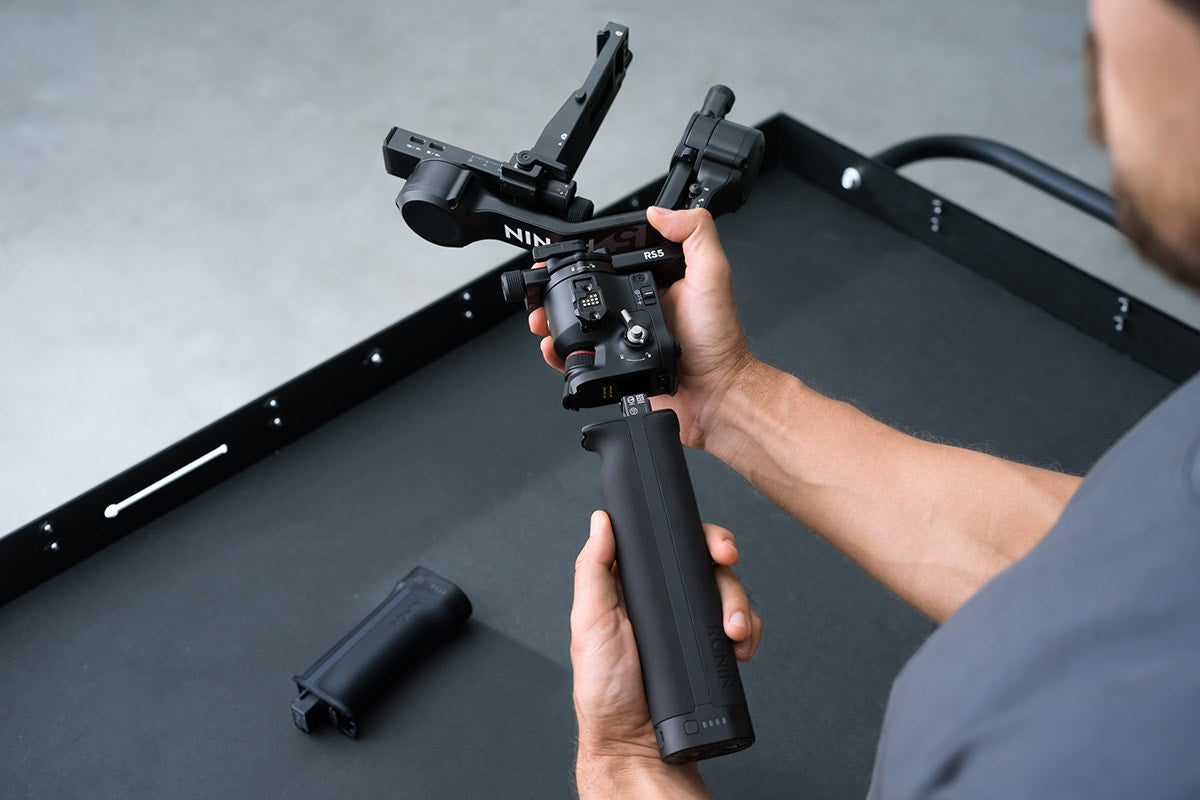

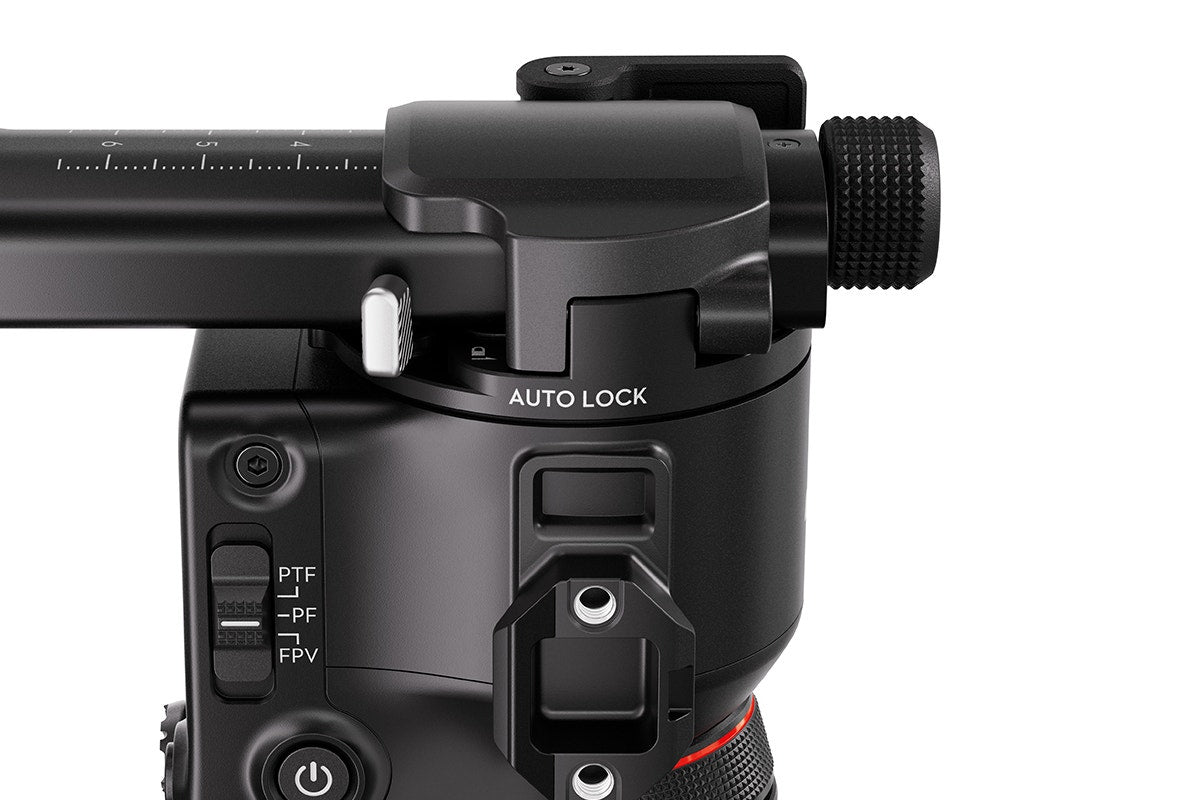

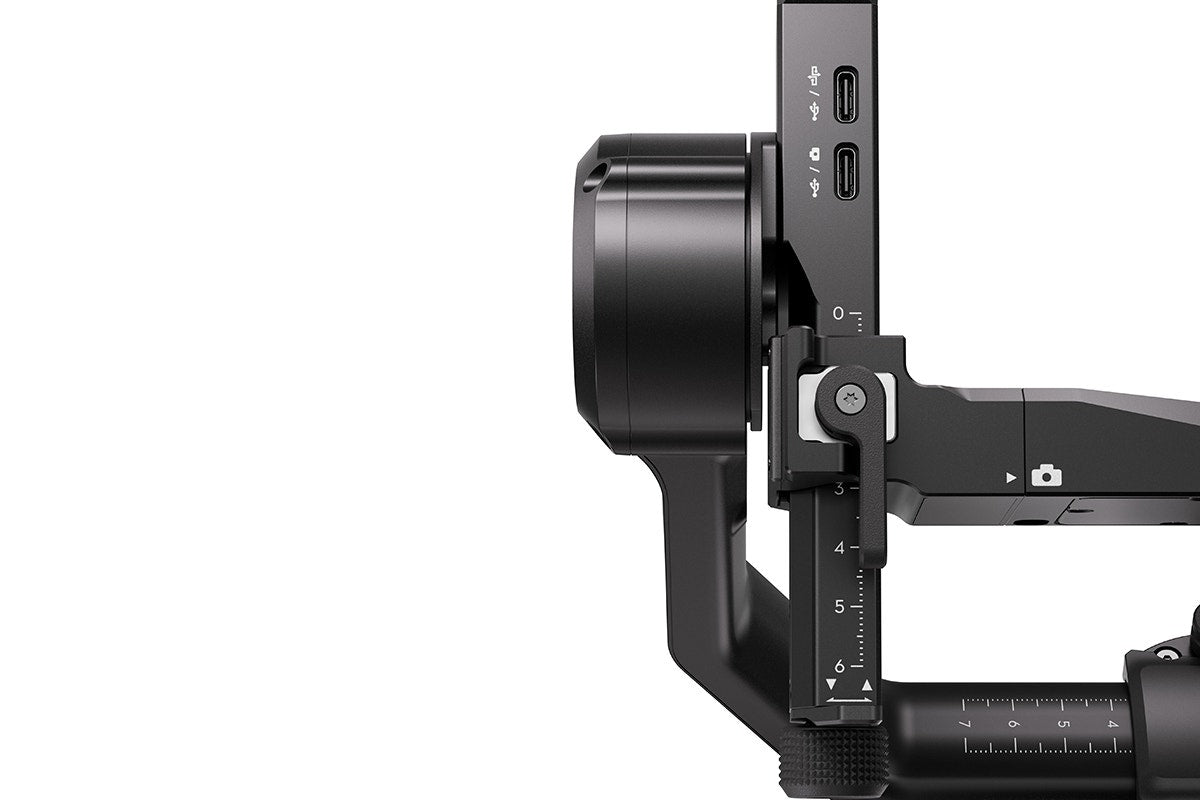

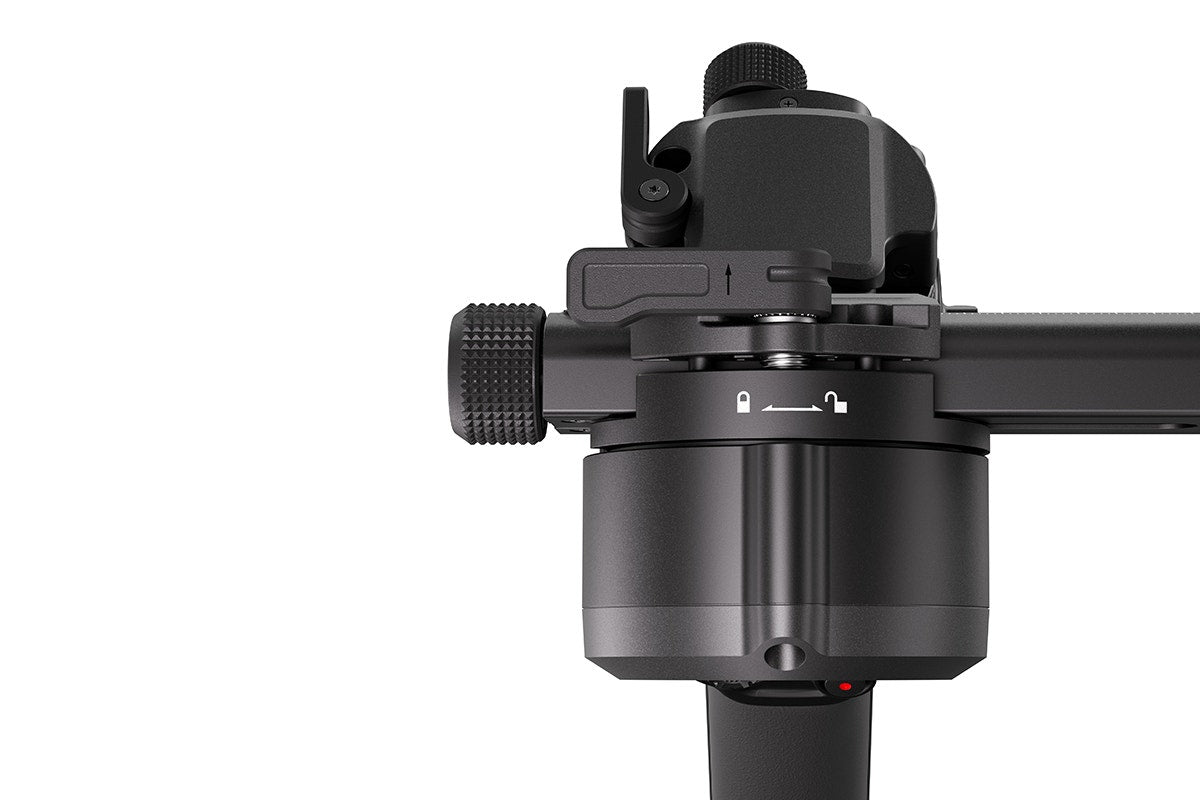

The upper and lower quick-release plates, balance scales and fine-tuning controls help filmmakers dial in more stable performance with less time spent adjusting.
Better support for dynamic filming

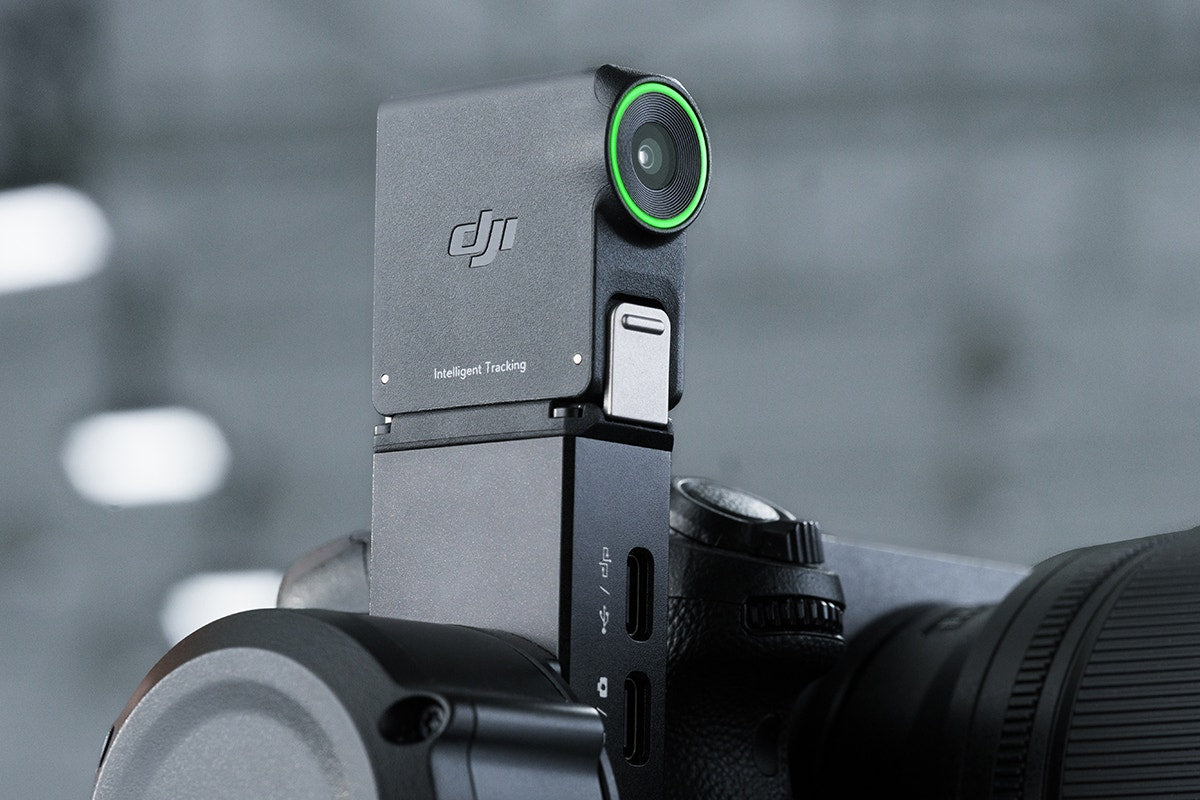

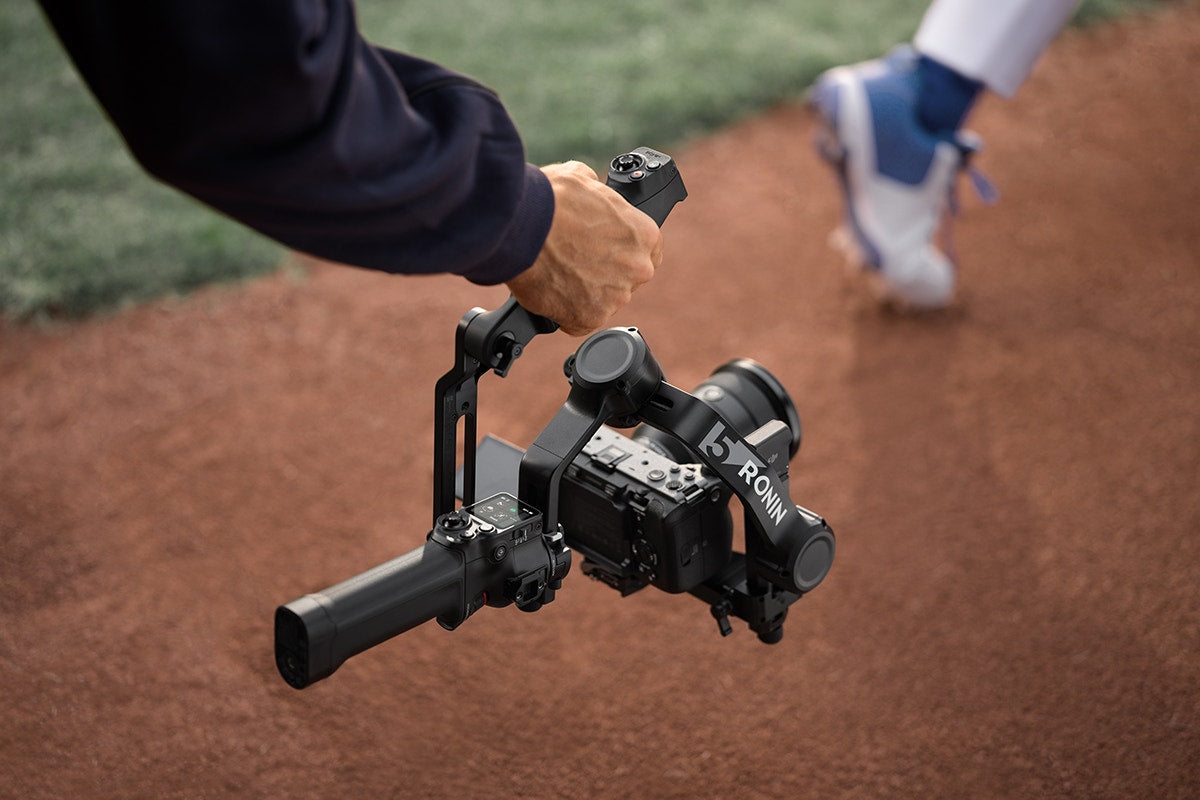

Tracking features and flexible control options help the gimbal adapt more easily to moving subjects, solo creators and low-angle compositions.
Complete package for creators

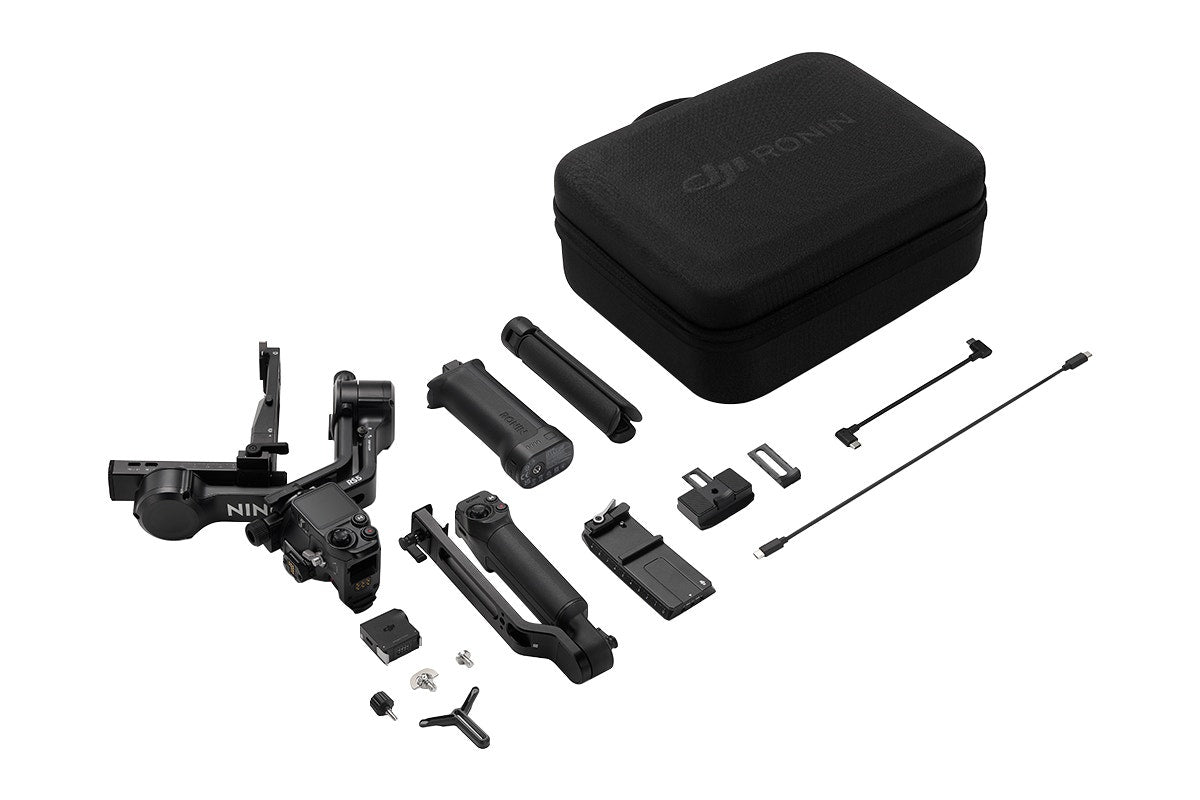

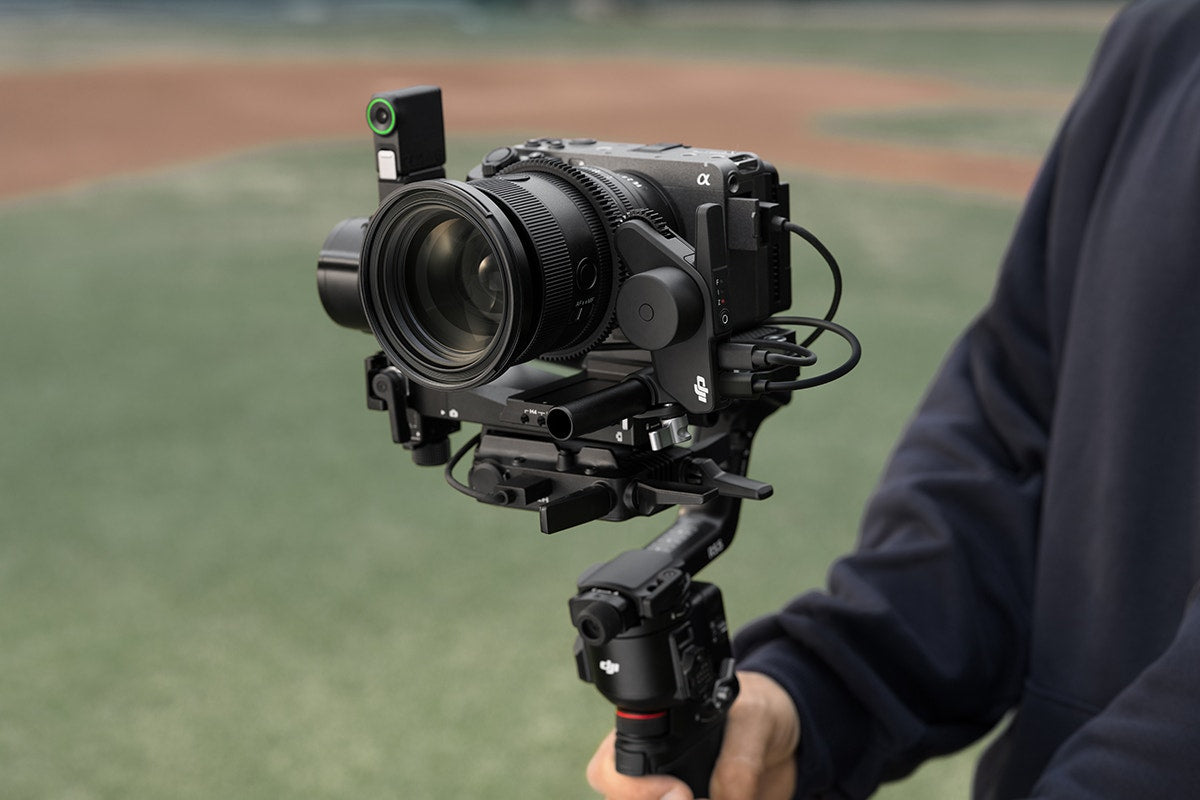

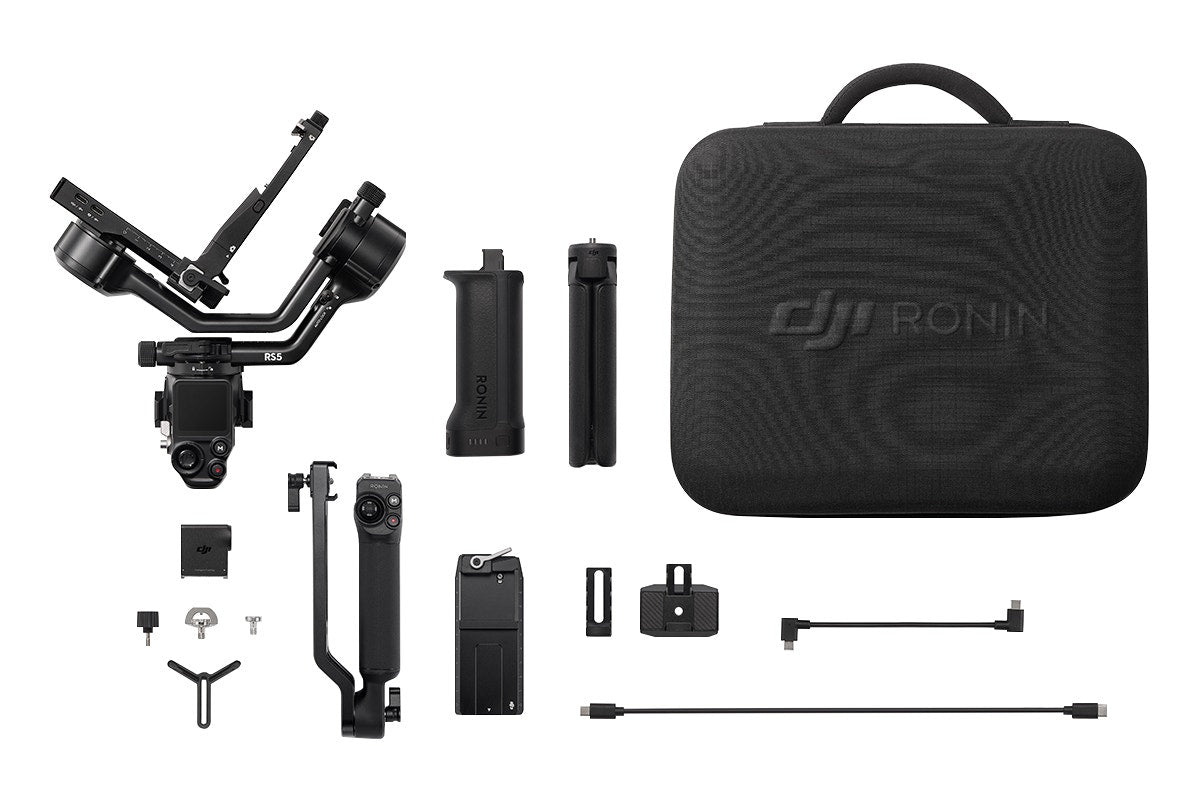

By combining the gimbal with useful accessories like the tracking module, handle, battery grip and case, the Combo is better prepared for real production use.
| Connectivity / Bluetooth | 5.0 |
| Connectivity / Operational Frequency | 2.4000 - 2.4835GHz |
| Connectivity / Transmit Power | < 8dBm |
| Dimensions / Dimensions | Folded: 247.4 x 115.7 x 258.7mm |
| Unfolded | 223.2 x 192.2 x 418.8mm |
| RS enhanced intelligent tracking module | 35.9 x 17.5 x 38.5mm |
| Electronic briefcase handle | 60 x 197.5 x 79.5mm |
| Dimensions / Weight | Gimbal: Approx. 1193g |
| Grip | Approx. 274g |
| Quick-open tripod | Approx. 149g |
| Upper & Lower quick-release plates | Approx. 93g |
| RS enhanced intelligent tracking module | Approx. 19g |
| Electronic briefcase handle | Approx. 149g |
| Features / Colour | Black |
| Features / Minimum Illumination(Lux) | 20 lux |
| Features / Mounting method | Magnetic attachment |
| Features / Vertical Shooting Controls | Supported |
| Functions and Features / Modes | Gimbal trigger, Gesture & Gimbal touchscreen gesture: Start/stop of tracking, Start/stop of recording & Framing adjustment |
| General / Distance | Tracking: 0.5-10m |
| General / Features | Auto axis lock |
| General / Mechanical Range | Roll: -95° to 240° |
| Tilt | -112° to 214° |
| General / Suitable for | DSLR & Mirrorless Cameras |
| General / Type | Gimbal Stabiliser |
| General / Weight Capacity | 3kg |
| Model / Type | DJI RS 5 Combo |
| Other / Language Support | English, Simplified Chinese, Traditional Chinese, German, French, Korean, Japanese, Spanish, Portuguese (Brazil), Russian & Thai |
| Performance / Battery Energy | 33.29Wh |
| Performance / Charging Temperature | 5°C to 40°C |
| Performance / Operating Temperature | Gimbal & Electronic briefcase handle: -20°C to 45°C |
| RS enhanced intelligent tracking module | -10°C to 45°C |
| Performance / Rotation | Pan, Tilt & Roll: 360°/s |
| Performance / System Requirements | iOS 14.0 or above & Android 9.0 or above |
| Power / Battery Capacity | 2150mAh |
| Power / Battery Life | Approx. 14 hours |
| Power / Battery Type | LiPo 4S battery |
| Power / Battery Voltage | 11.2V to 17.8V |
| Power / Charging Interface | USB-C |
| Power / Charging Time | Approx. 1 hour |
| Power / Input | USB: 5V-3A, 9V-3A, 12V-3A, 15V-3A & 20V-3A |
| Power / Power Consumption | 1W |
| Power / Standby Consumption | Approx. 0.2W |
| Warranty / Manufacturer Warranty | 1 Year |
