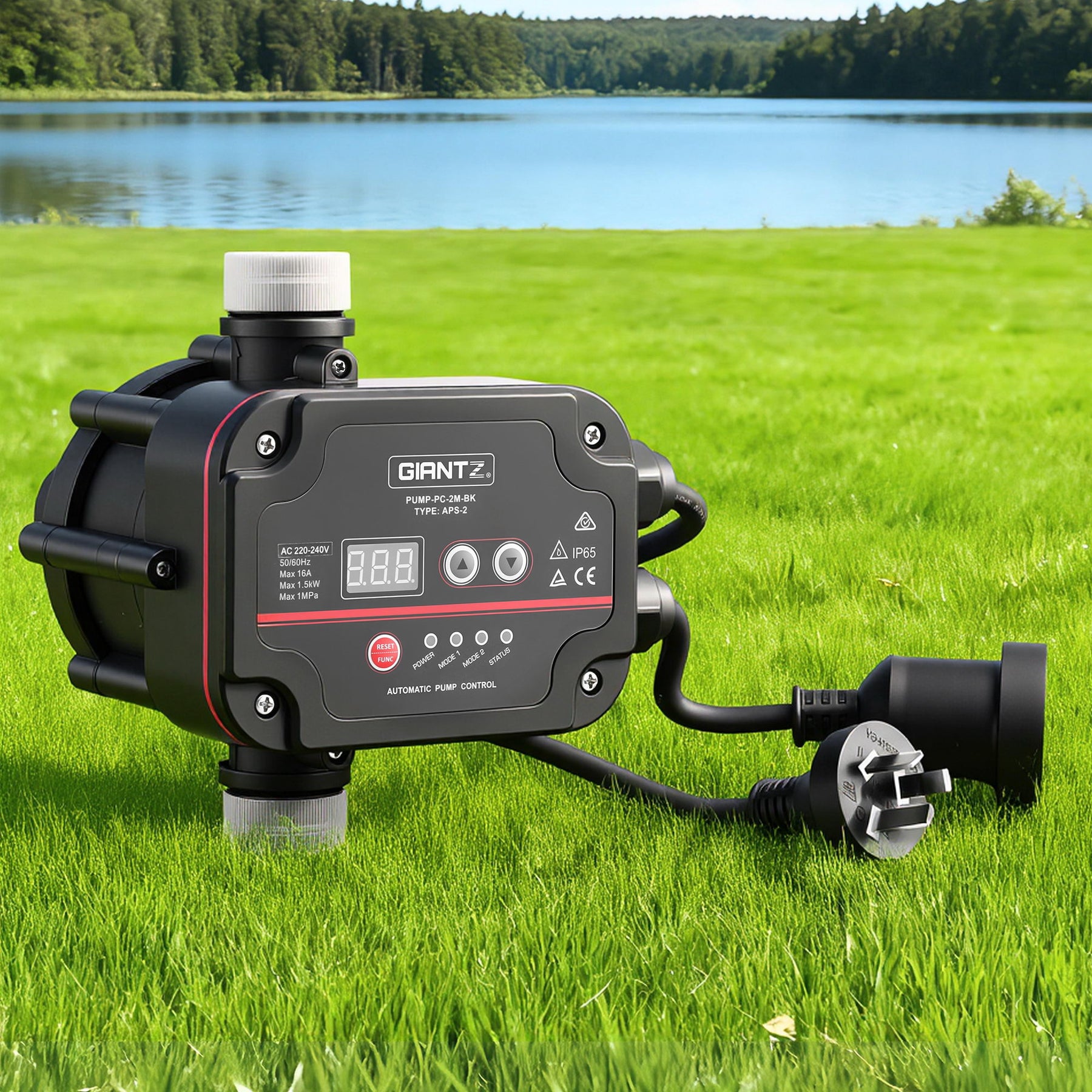

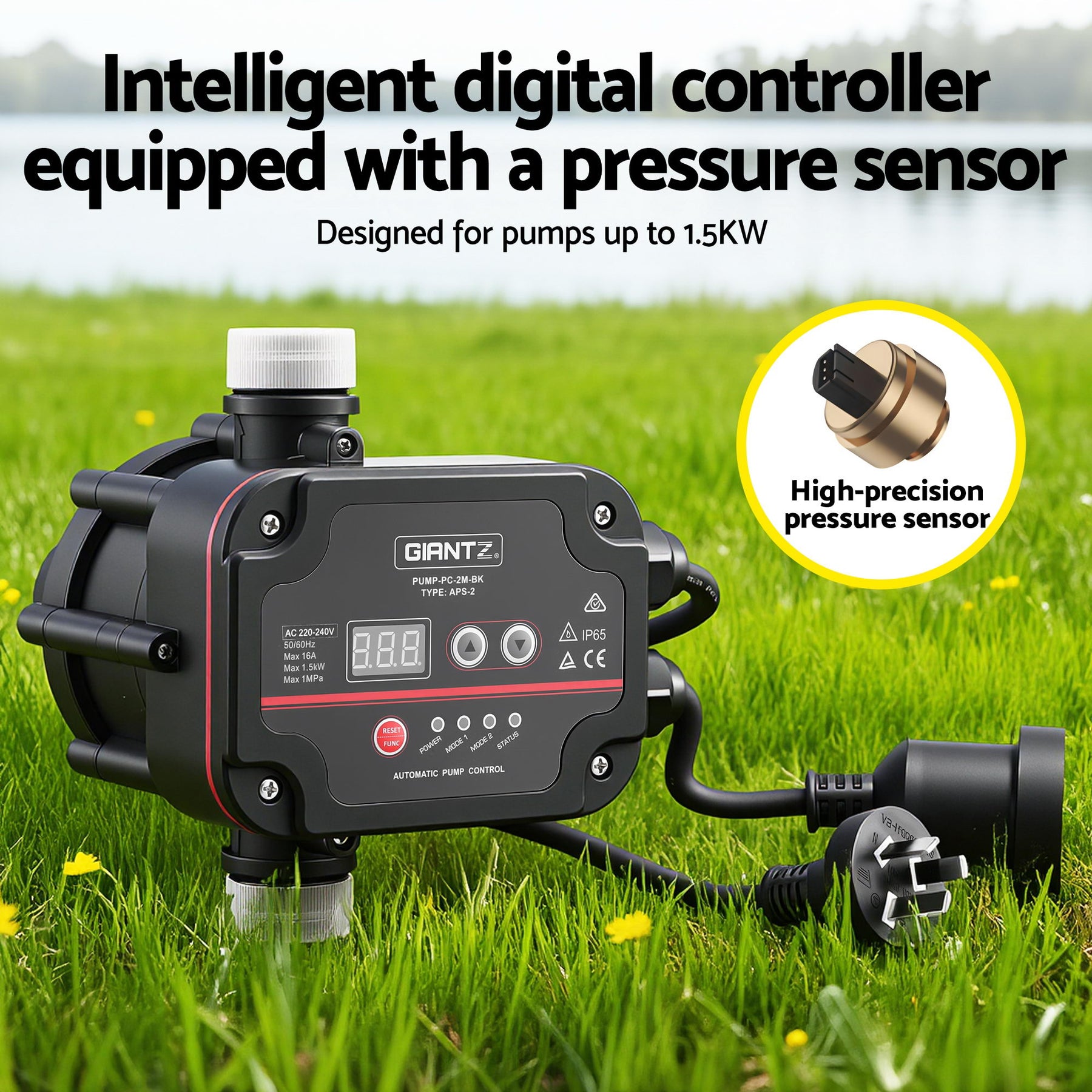

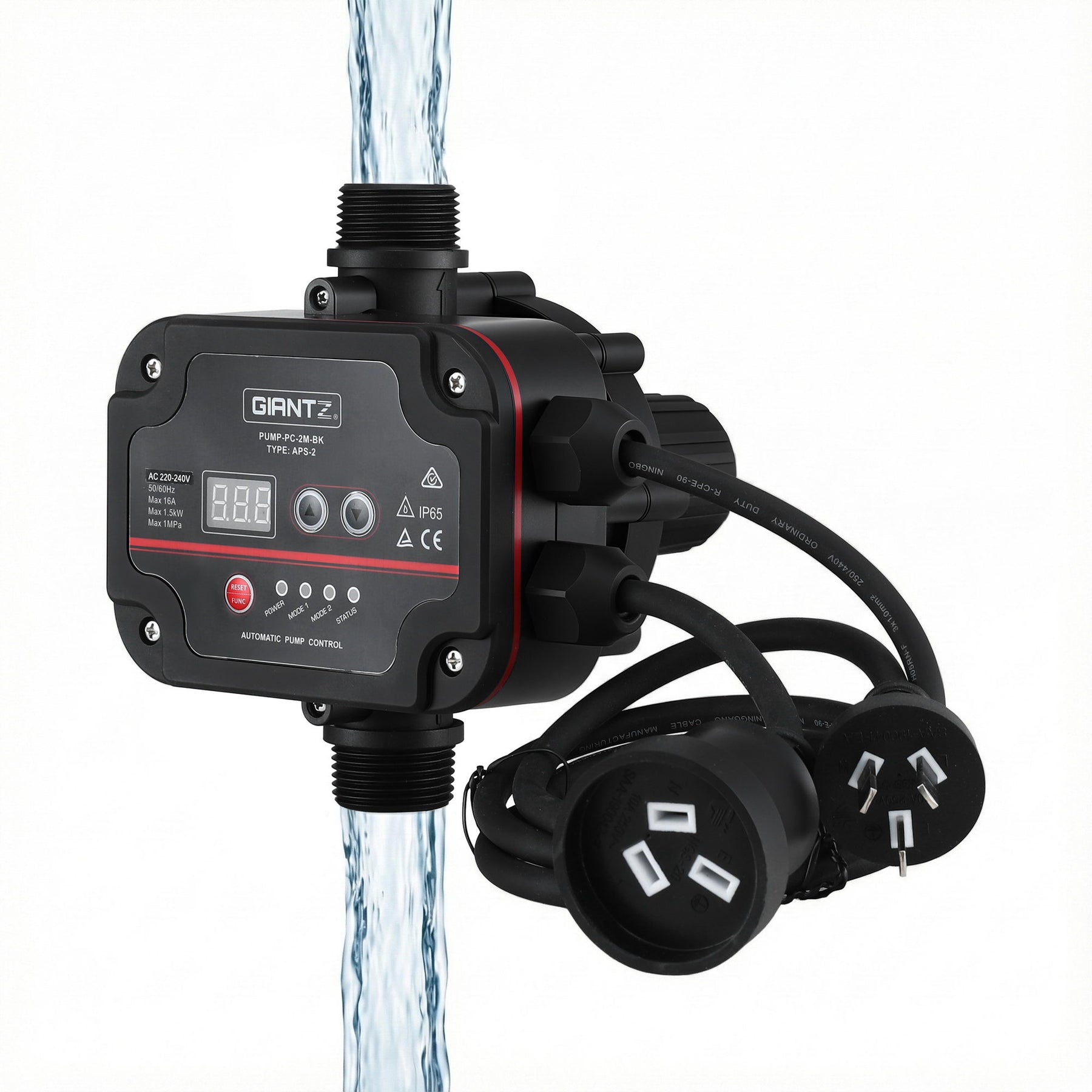

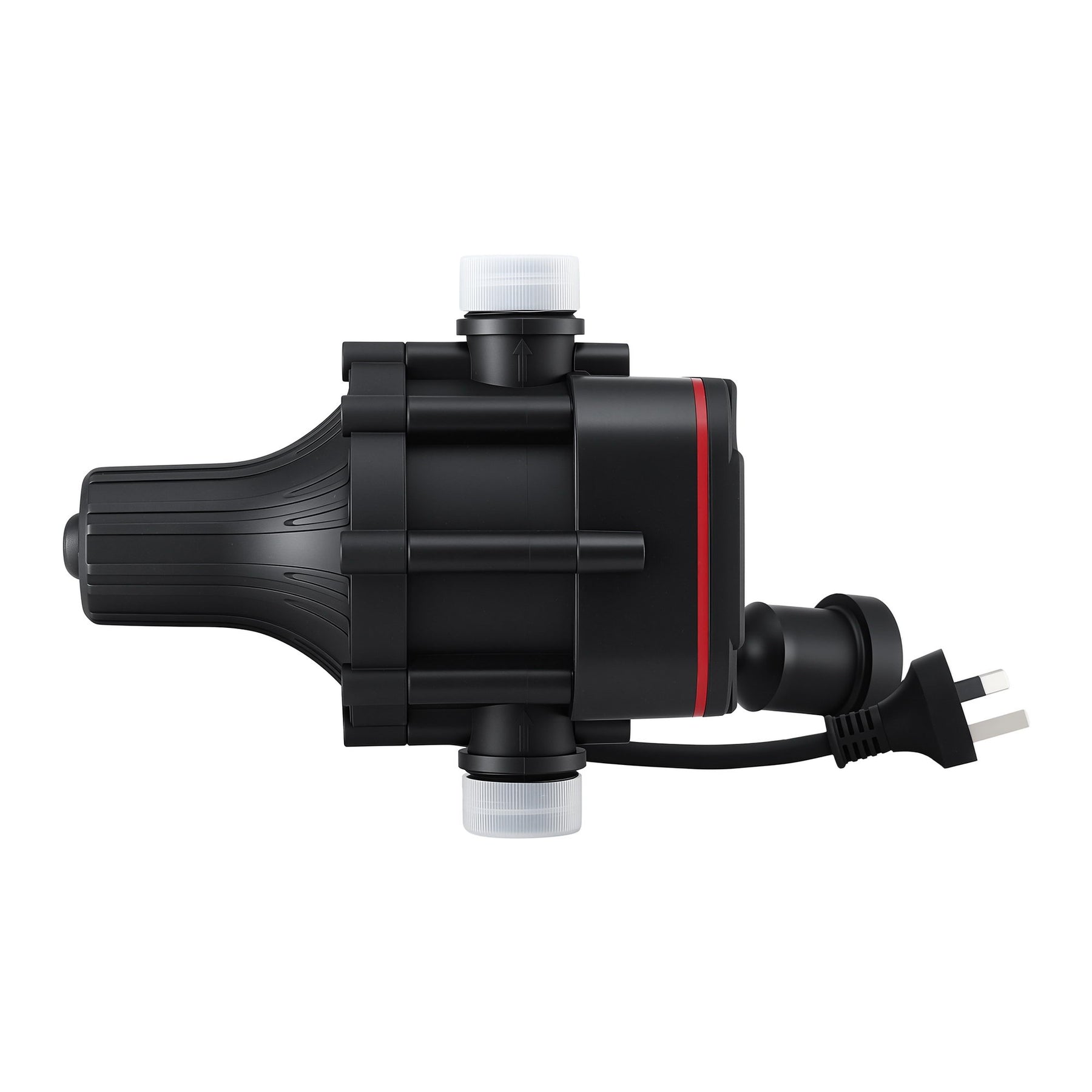

The GIANTZ Digital Water Pump Controller is designed to turn a water pump into an automatic booster system with LED display, adjustable pressure settings and dry run protection.
Features
- 16A maximum current and 1.5kW maximum motor capacity

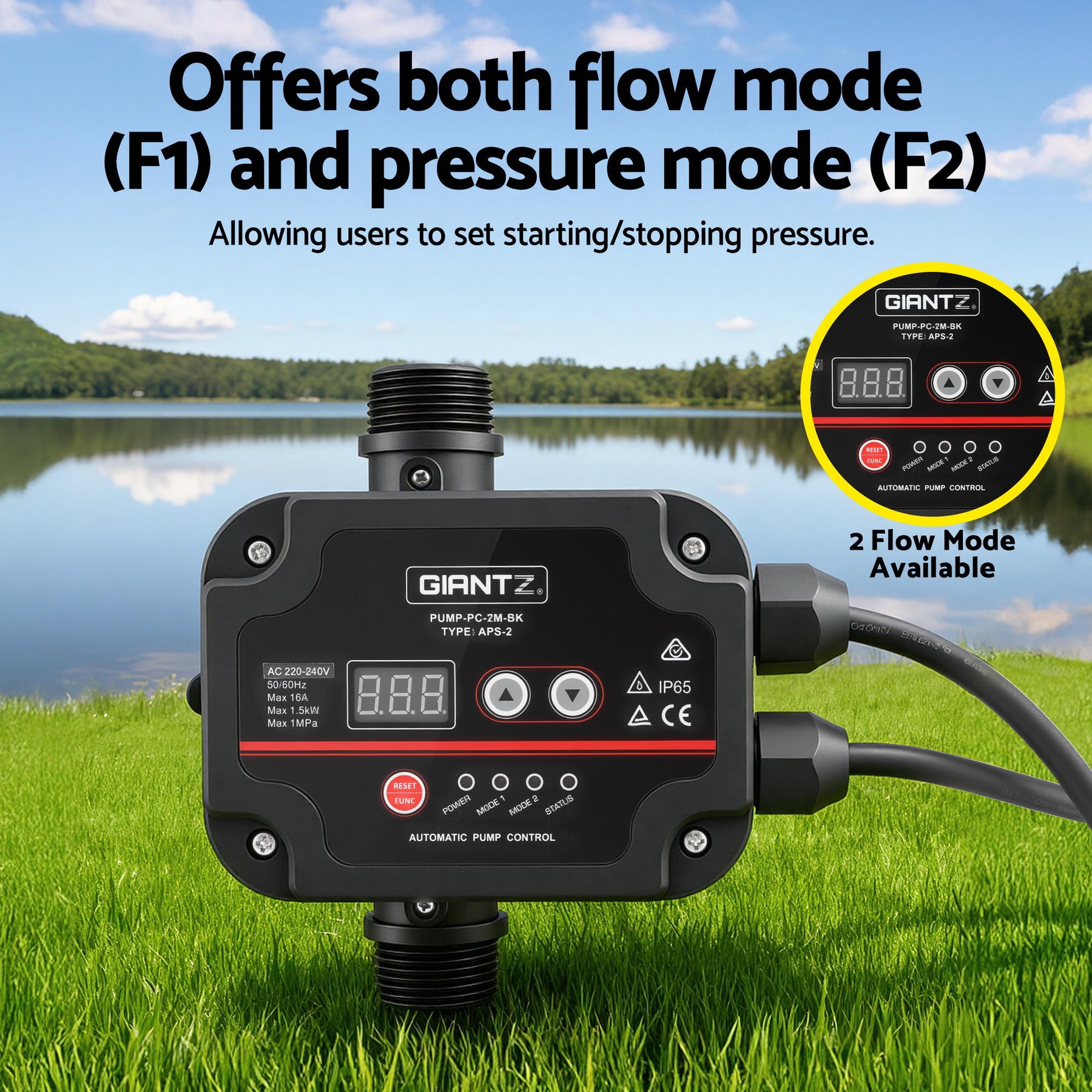

- Digital LED pressure display with flow and pressure control modes

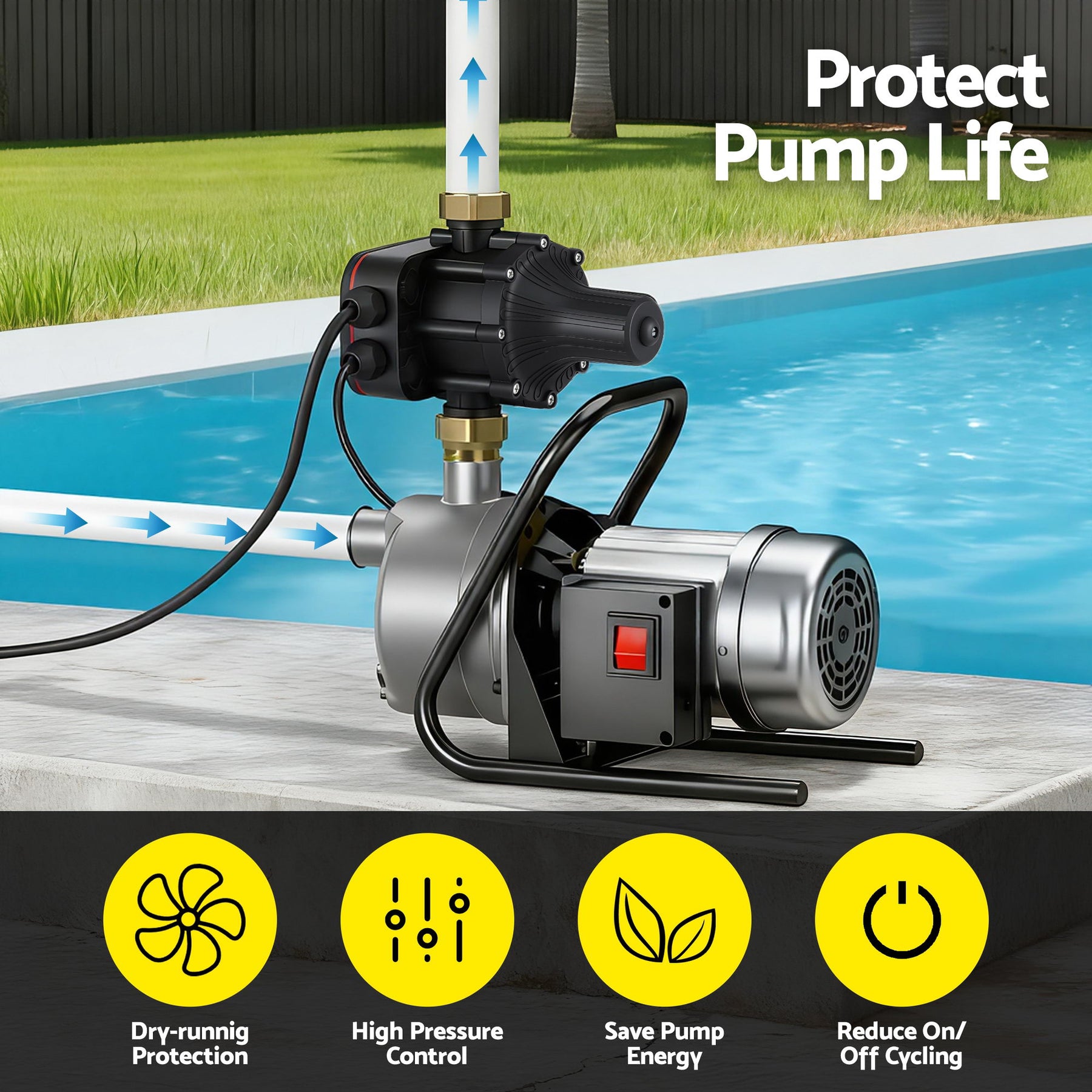

- IP65 weatherproof housing with automatic dry run protection
Description
This GIANTZ digital pump controller features adjustable start and stop pressure settings, dry run protection and pipe over pressure protection. It includes a digital LED display, plug and play AU socket lead and a 1 inch male thread connection for water pump control.

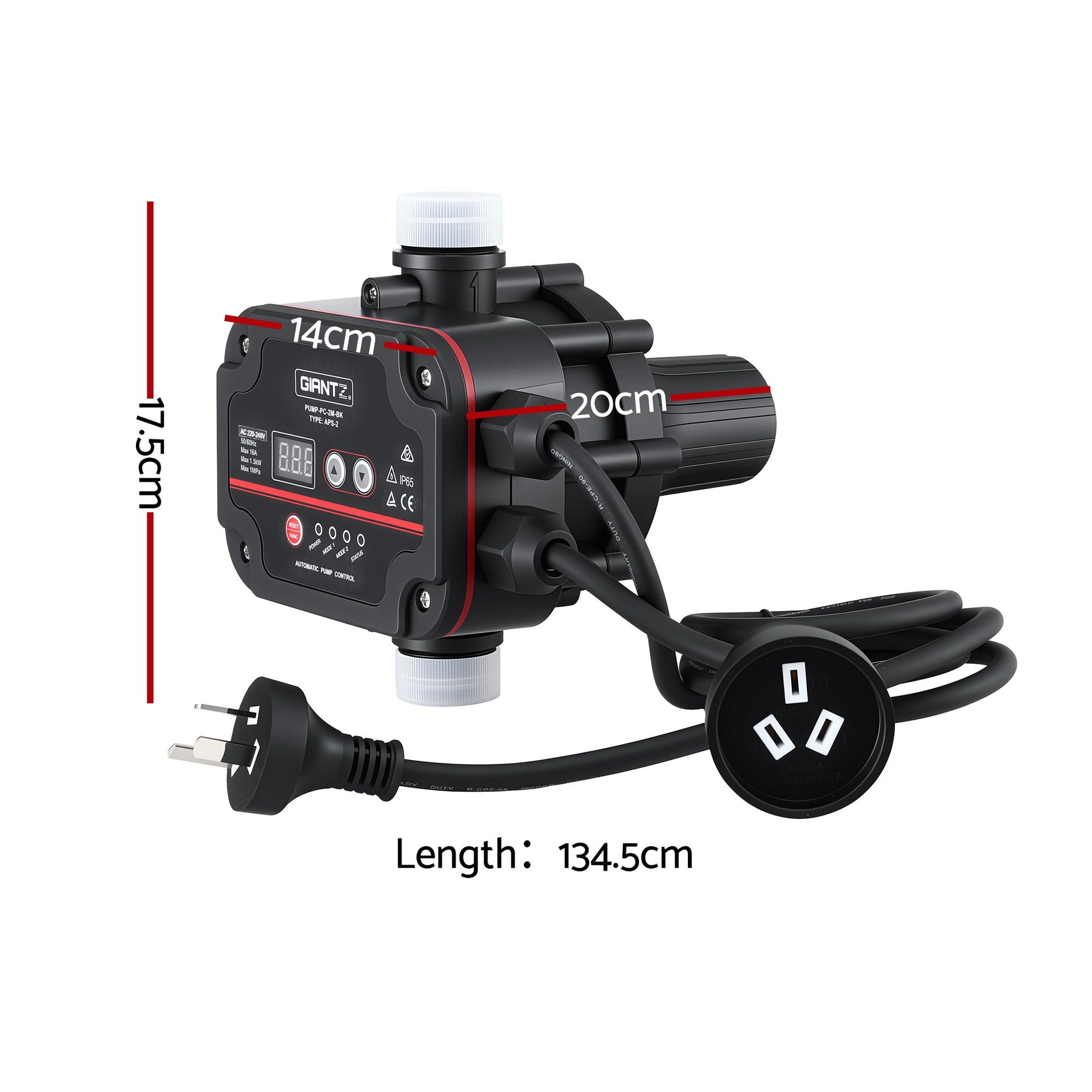

Specifications
- Brand or Vendor: GIANTZ
- Model: PUMP-PC-2M-BK
- Max Current: 16A
- Max Power: 1.5kW
- Starting Pressure: Adjustable 0.5 to 4.5 Bar
- Stopping Pressure: Adjustable 1.0 to 8.0 Bar
- Max Working Pressure: 10 Bar
- Max Flow Rate: 60 to 160 L/min
- Protection: Pipe Over Pressure and Dry Run
- IP Rating: IP65
- Connection: 1 inch 25mm Male Thread
- Max Temp: 60°C
- Package Content: Water pump controller x 1 and instruction manual x 1
