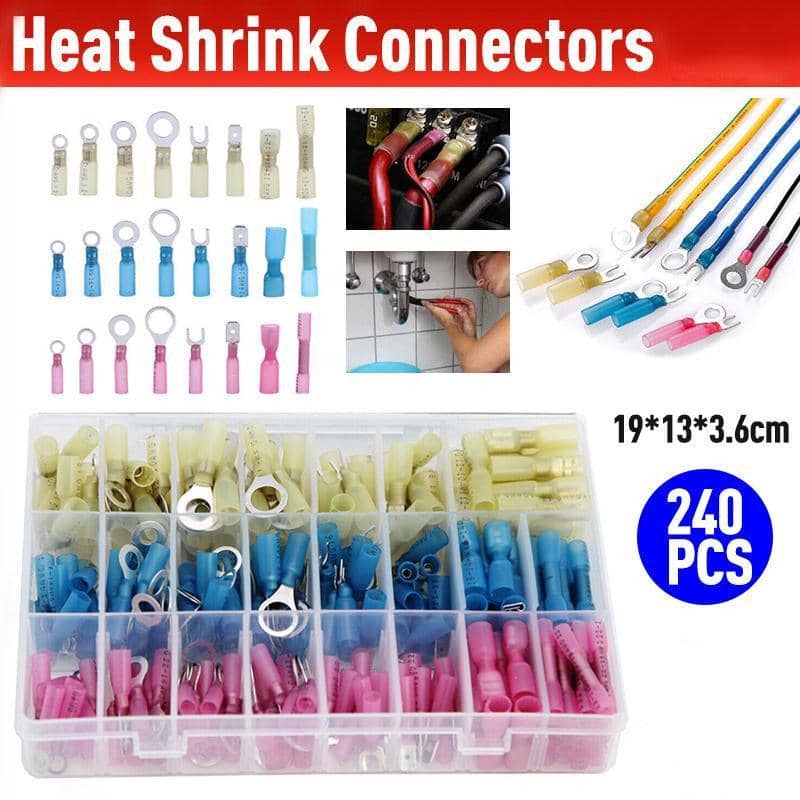

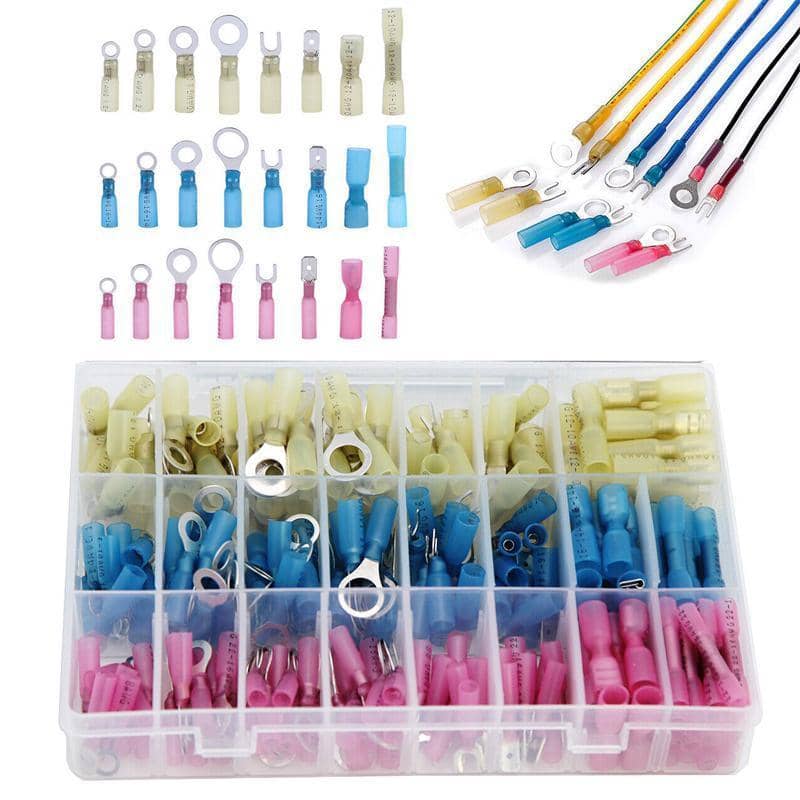

Heat Shrink Wire Connector Kit with Storage Box, 240 Connectors

This heat shrink wire connector kit contains 240 connectors for automotive, marine and DIY wiring projects. Copper barrels and adhesive-lined polyolefin insulation provide conductive connections with environmental sealing.

Features

• Heat-shrink insulation seals around correctly crimped connections when heated.
• High-purity copper barrels support conductivity with low resistance.
• Adhesive-lined tubing helps resist moisture, vibration, salt, oil and corrosion.
• Compartmentalised storage keeps different terminal types organised and accessible.

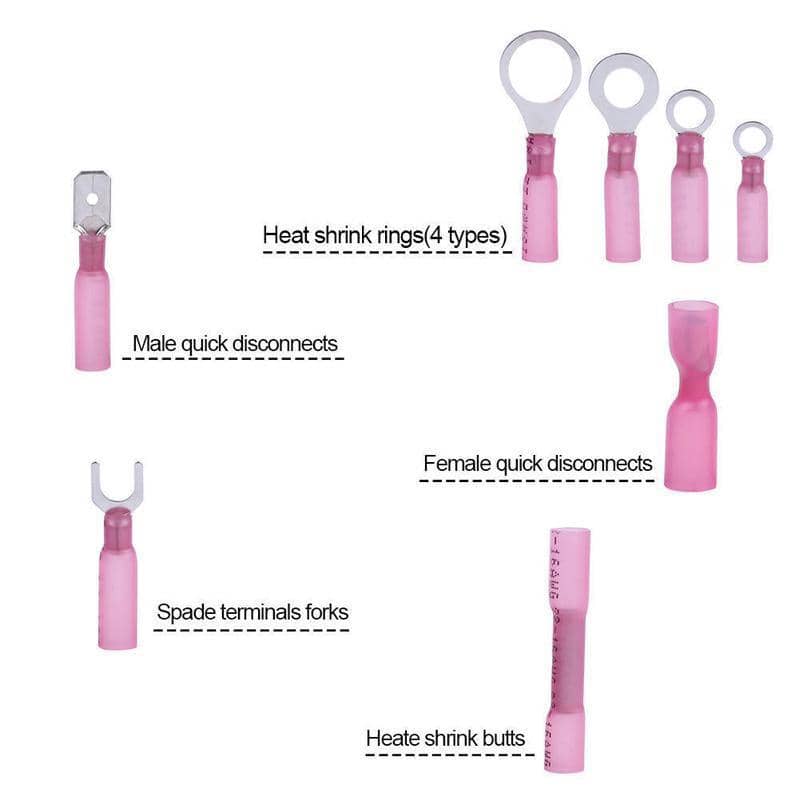

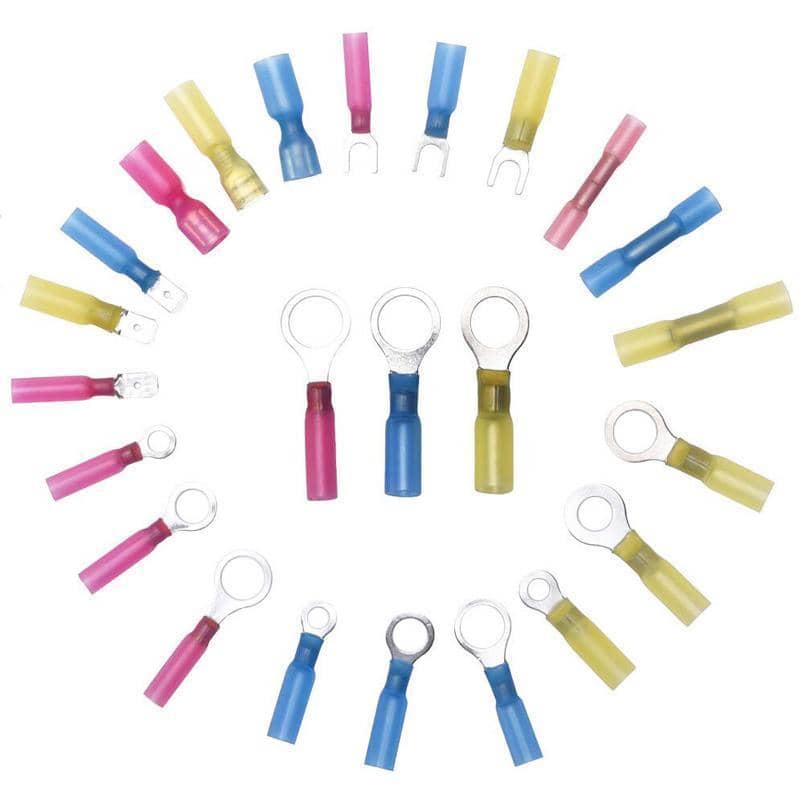

• Assorted butt, ring, fork and quick-disconnect terminals support varied wiring tasks.

Specifications

• Quantity: 240 connectors
• Materials: Polyolefin outer tubing and copper inner barrels
• Shrink ratio: 3:1
• Rated voltage: Up to 400 V
• Rated current: Approximately 19-48 A, according to wire gauge
• Waterproof rating: IP67

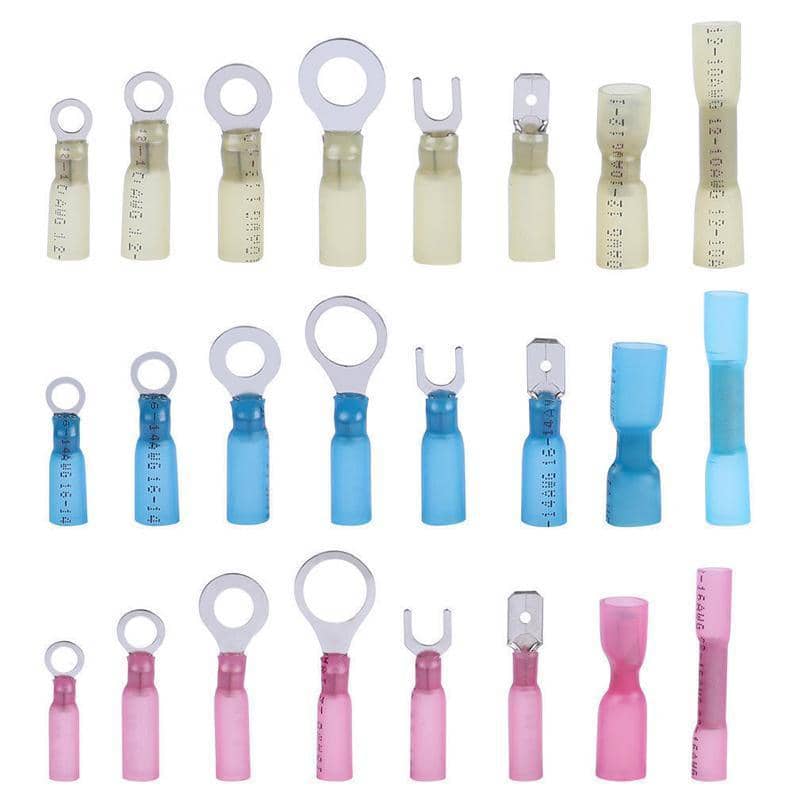

• Red connector wire range: 22-16 AWG, 0.5-1.5 mm²
• Blue connector wire range: 16-14 AWG, 1.5-2.5 mm²
• Yellow connector wire range: 12-10 AWG, 4.0-6.0 mm²
• Weight: 386 g

Crimp each connection correctly before applying heat. Use a heat gun to activate the tubing and adhesive; do not use an open flame.

Package includes

• 240 assorted heat shrink wire connectors
• 1 plastic storage box
