Philmac

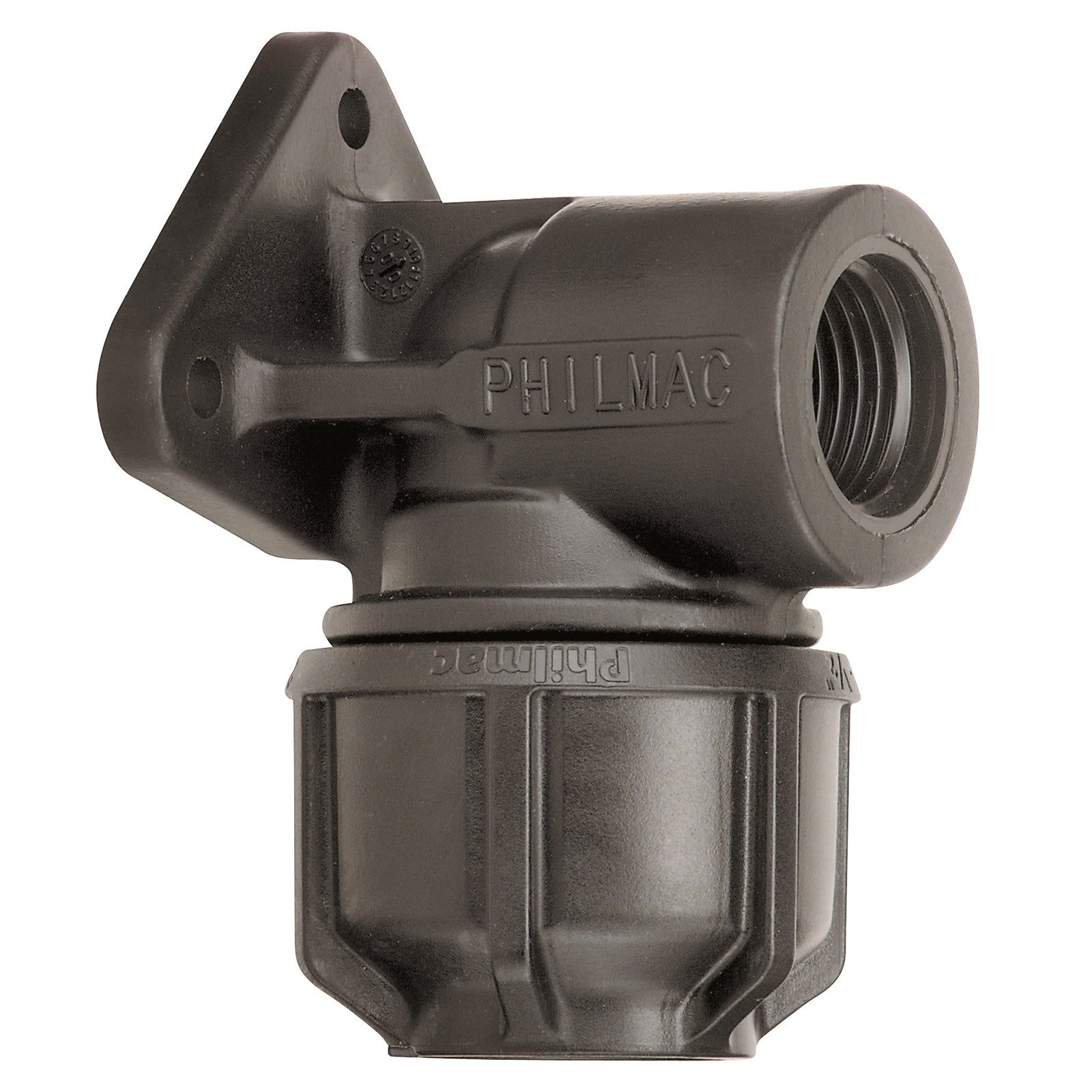

Philmac 25mm x 1/2" Poly x FI BSP 90 Degree Wall Plate Elbow PN16

$27.32 $40.98 -33% OFF
You save: $13.66
Price reduced — was $40.98
✓ We'll notify you when this is back in stock!
Out of Stock
Qty:
14-Day Change-of-Mind Returns
Secure Checkout
Australian Stock
Dispatches within 1-2 business days Australia-wide delivery, typically 2-10 business days
Australian Stock Ships from AU warehouses
We accept:American Express Apple Pay Google Pay Mastercard PayPal Shop Pay Union Pay Visa

Frequently bought together

The Philmac 25mm x 1/2" poly x FI BSP wall plate elbow is a 90-degree fitting that takes metric polyethylene pressure pipe to a 1/2" female BSP outlet at a wall plate. It is the connection point for tap outlets and risers fixed to a wall or post.

  • Fitting size: 25mm x 1/2"
  • Bend: 90 degrees
  • Connection: Poly x FI BSP
  • Material: Polypropylene body, acetal nuts
  • Pressure rating: PN16, 1600kPa max working pressure
  • Underground rated: Yes
  • Compatible pipe material: Metric polyethylene pressure pipe

The compression end grips 25mm poly pipe, while the threaded outlet connects taps or fittings. Being underground rated, it suits buried garden and irrigation lines as well as above-ground wall outlets.

More about this product

The Philmac 25mm x 1/2" Poly x FI BSP Wall Plate Elbow is a 90-degree fitting for connecting metric polyethylene pressure pipe to a 1/2" female BSP outlet. It is underground rated and PN16 (1600kPa) rated.

  • Fitting size: 25mm x 1/2"
  • Bend: 90 degrees
  • Connection: Poly x FI BSP
  • Material: Polypropylene body, acetal nuts
  • Pressure rating: PN16, 1600kPa
  • Underground rated: Yes
  • Compatible pipe material: Metric polyethylene pressure pipe

Questions & Answers

What angle is this wall plate elbow?

It is a 90-degree elbow.

What does it connect?

It joins 25mm metric poly pipe to a 1/2" female BSP threaded outlet (poly x FI BSP).

Can it be installed underground?

Yes. It is underground rated.

What is its pressure rating?

It is rated PN16 with a maximum working pressure of 1600kPa.

What is it made from?

It has a polypropylene body with acetal nuts.

What pipe does it suit?

It is designed for metric polyethylene pressure pipe.
