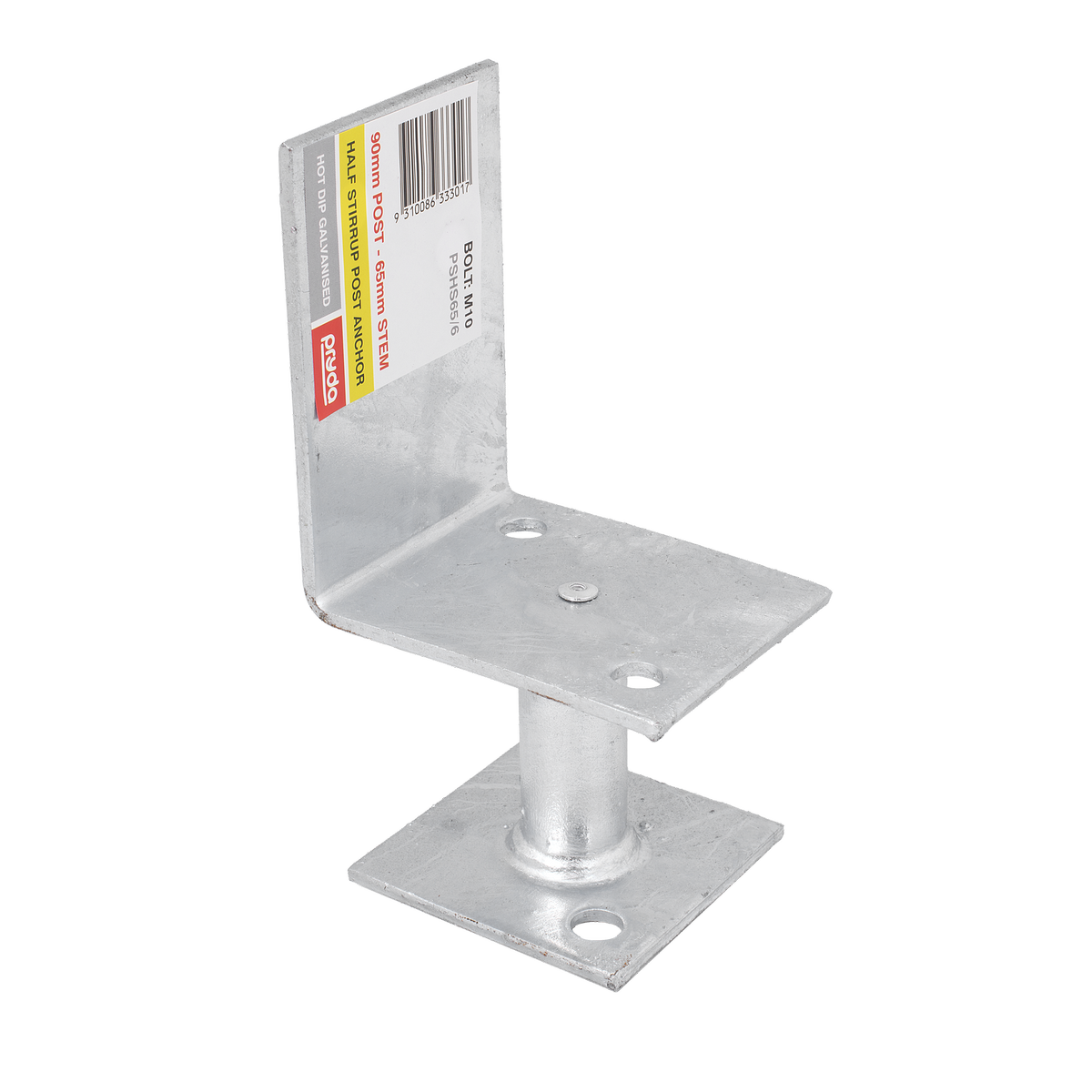

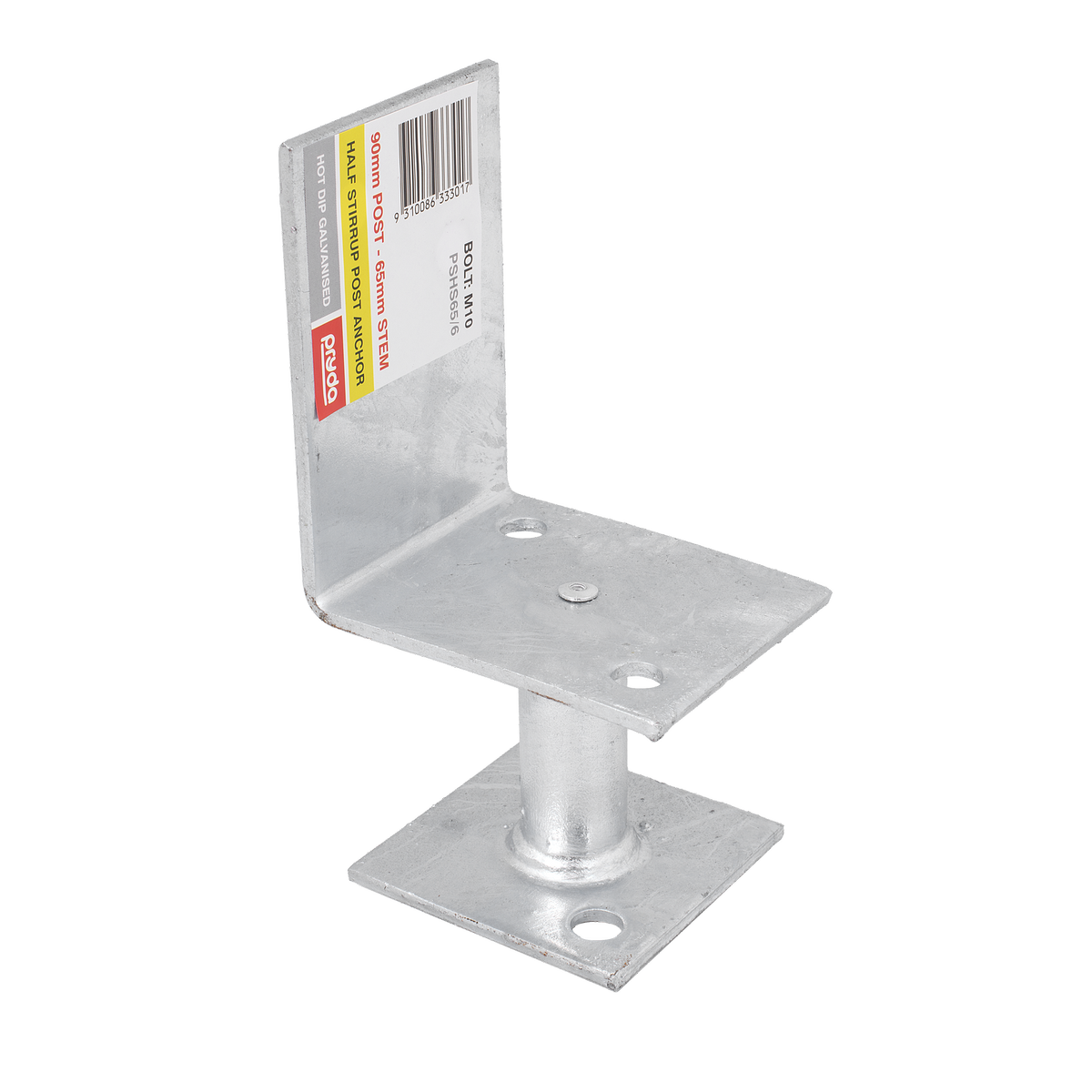

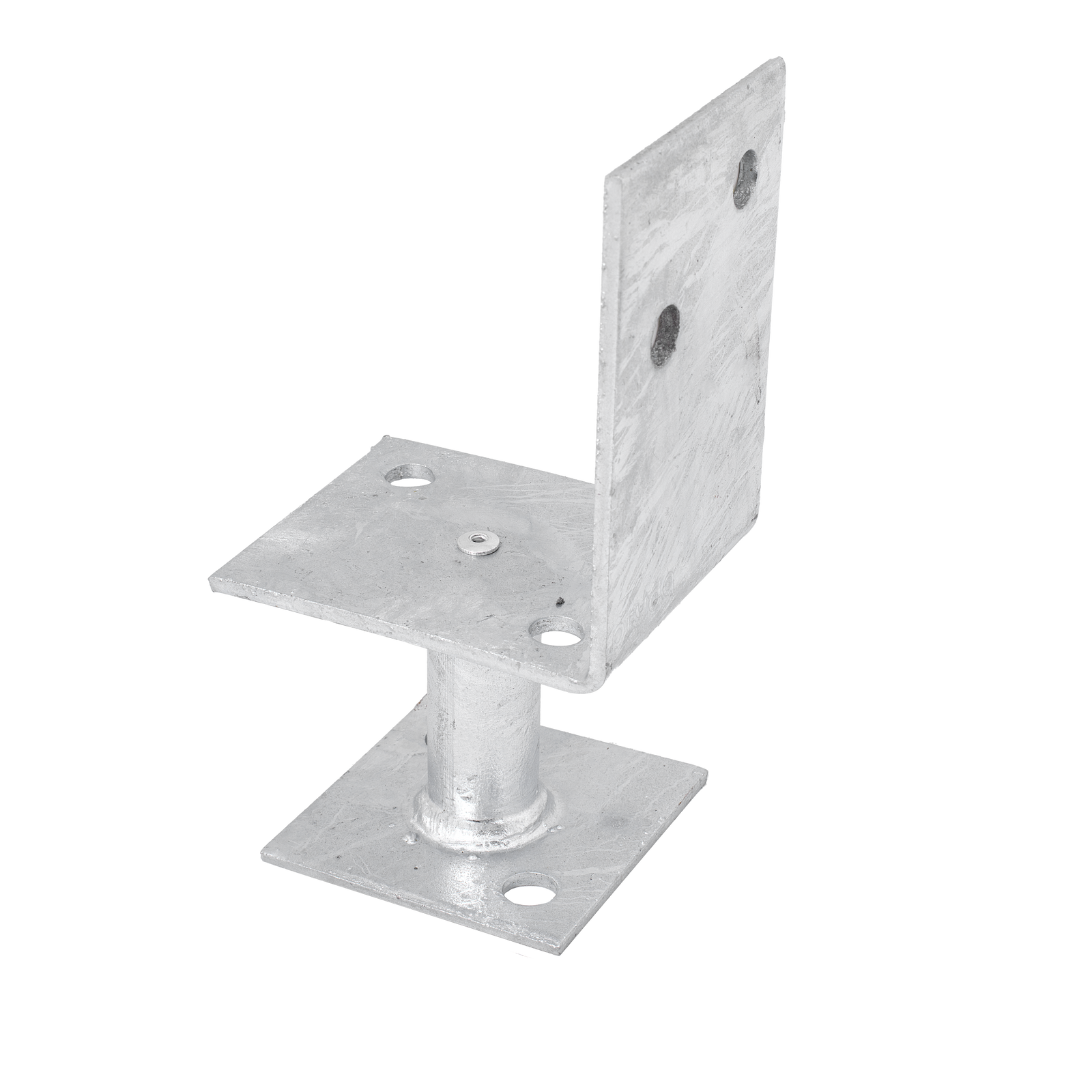

The Pryda 65mm Half Stirrup Post Anchor is a hot-dip galvanised steel anchor for securing timber posts.

Leg length: 65mm
Stirrup width: 90mm
Bolt hole size: M10
Material: Hot-dip galvanised steel
Stirrup: Half, bolt-down

The half stirrup bolts down to a concrete footing to anchor timber posts for pergolas, decks, carports and verandahs, with a galvanised finish for outdoor use.

More about this product

Pryda 65mm m10 Half Stirrup Post Anchor is a robust anchoring solution designed for securing posts to concrete surfaces, ensuring structural integrity.

This half stirrup post anchor is engineered to conform to AS3660.1 - 2000 standards for termite protection, featuring welded joints and sealed stems for enhanced durability. With a stem diameter of 25mm and a thickness of 2.0mm, it is primarily intended for bolting to existing concrete but can also be cast-in with a minimum clearance of 75mm. This design is particularly advantageous for installations where the post is positioned against a wall or step, allowing for bolting from one side only.

Features

Conforms to AS3660.1 - 2000 for termite protection
Welded joints for enhanced strength and durability
Sealed stems in stirrups for additional termite protection
Designed for bolting to existing concrete or cast-in applications
Ideal for posts located against walls or steps

Specifications

Dimensions (W x H x D)	65mm x 172mm x 35mm
Weight	0.73kg
Material	Hot Dip Galvanised Steel
Model Number	PSHS65/6
Leg Length	65mm
Bolt Hole Size	M10
Stirrup Width	90mm
Finish	Galvanised

The Pryda 65mm m10 Half Stirrup Post Anchor is designed for reliable post anchoring in various applications.

Questions & Answers

What type of stirrup is it?

A half stirrup, bolt-down.

What bolt size does it use?

M10 bolt holes.

What is the stirrup width?

90mm, with a 65mm leg length.
