33% Off
Ramset

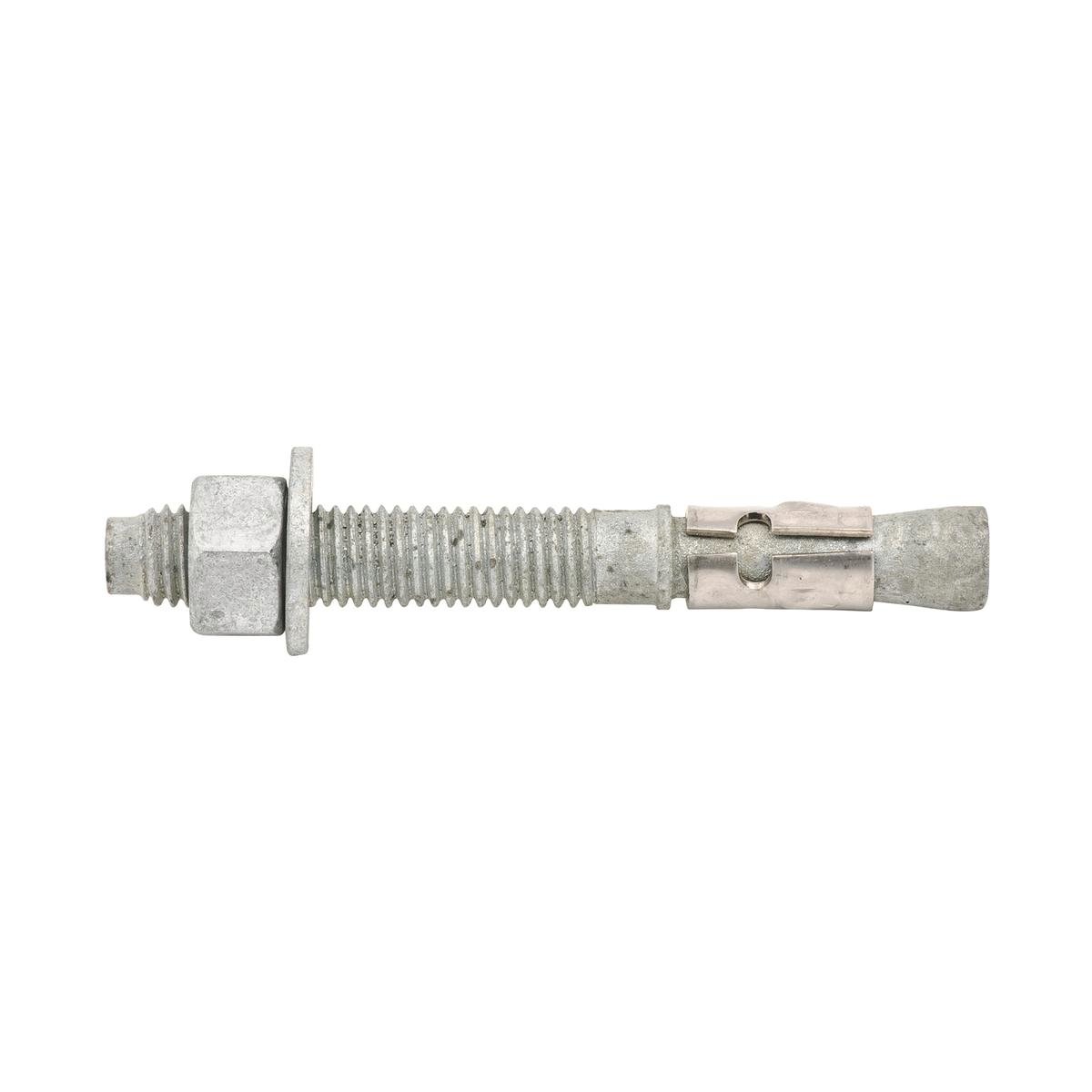

Ramset M12 x 100mm Galvanised TruBolt Hex Head Concrete Anchor

$8.68 $13.02 -33% OFF
You save: $4.34
Price reduced — was $13.02
Only 5 left!
Qty:
14-Day Change-of-Mind Returns
Secure Checkout
Australian Stock
Dispatches within 1-2 business days Australia-wide delivery, typically 2-10 business days
Australian Stock Ships from AU warehouses
We accept:American Express Apple Pay Google Pay Mastercard PayPal Shop Pay Union Pay Visa

Frequently bought together

The Ramset TruBolt is a stud (wedge) anchor for concrete, supplied as a single M12 x 100mm hex-head unit.

  • Fastener size: M12 x 100mm
  • Drill size: 12mm
  • Material: Hot-dip galvanised carbon steel
  • Head type: Hex nut
  • Pack: 1

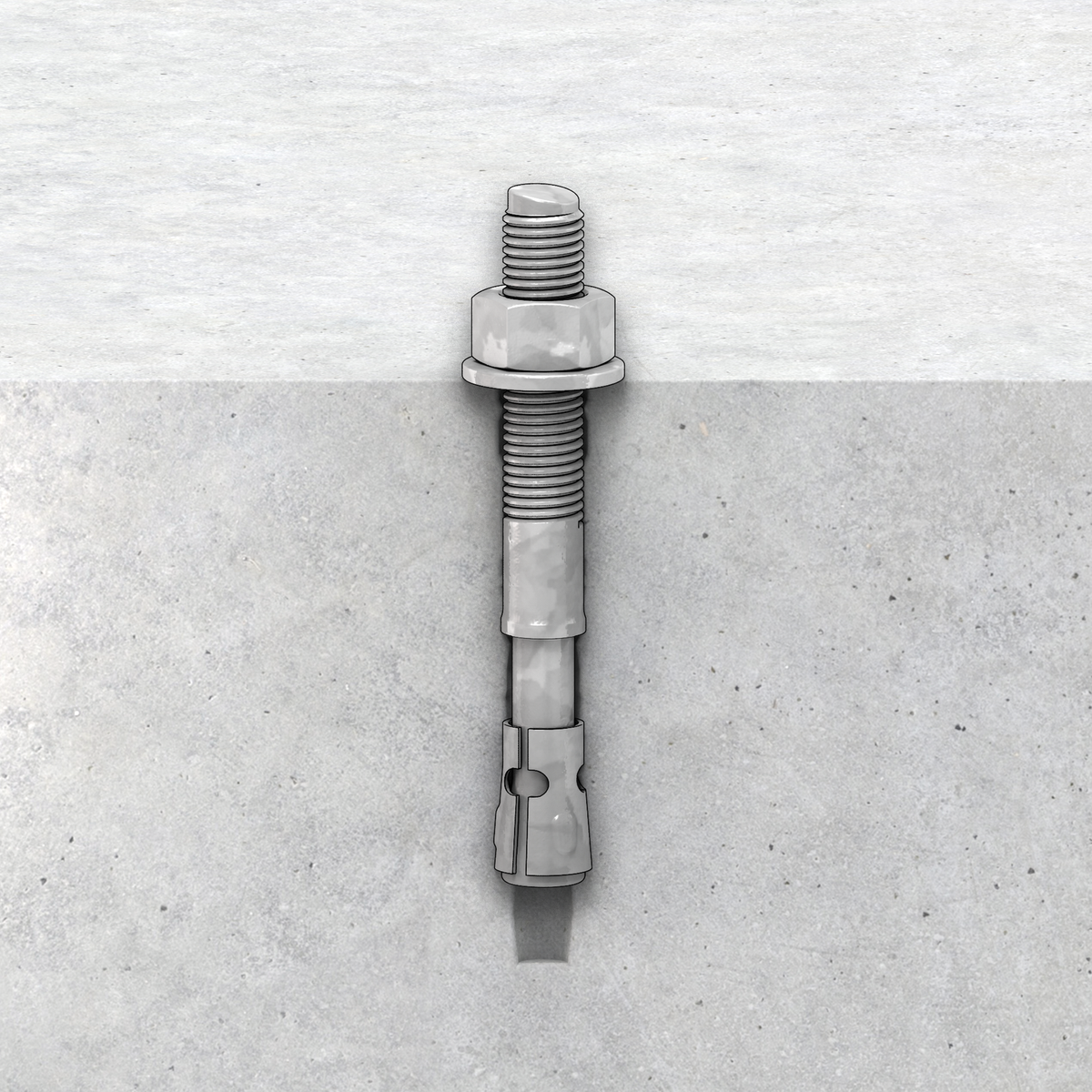

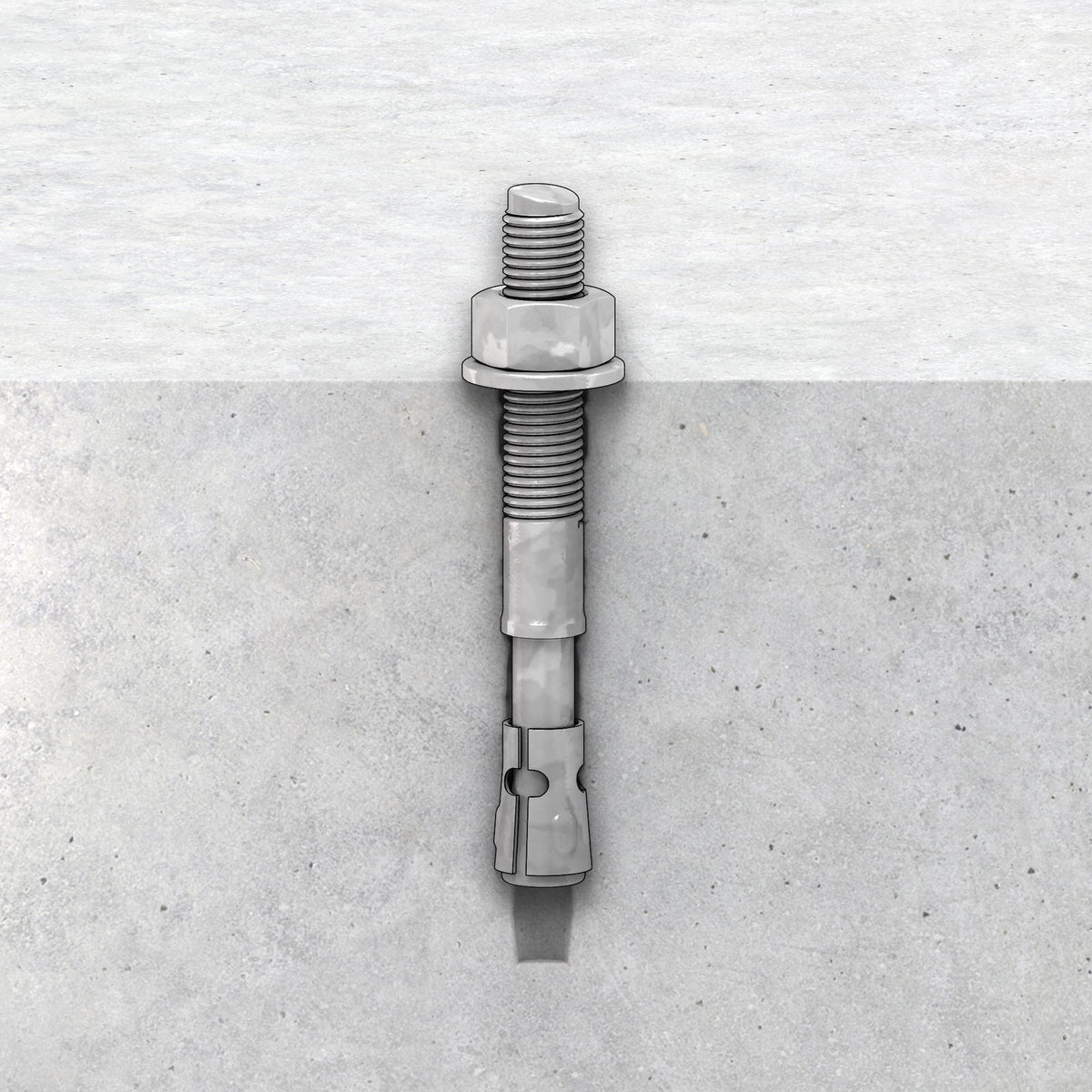

Wedge anchors expand at the base as the nut is tightened, giving a high-strength fixing in solid concrete. Suits anchoring structural steel, machinery, posts and heavy brackets; the hot-dip galvanised finish suits outdoor use. Drill a matching 12mm hole, insert and tighten.

More about this product

Ramset m12 x 100mm Galvanised Trubolt Hex Head Bolt is a heavy-duty torque-controlled expansion anchor designed for permanent anchoring into concrete.

The Ramset m12 x 100mm Galvanised Trubolt Hex Head Bolt features a cold-forged construction that ensures superior strength and reliability. With an anchor diameter that matches the required hole diameter, it provides maximum shear capacity, simplifying drill bit selection. The design allows for maximum expansion of the sleeve and pull-down on the fixture, while the anti-rotation expansion sleeve grips the sides of the hole to prevent rotation during installation. Ramset™ has been a trusted name in the Australian building and construction industry for over fifty years, known for its innovative drilling, anchoring, and fixing products.

Features

  • Anchor diameter matches required hole diameter for maximum shear capacity.
  • Cold forged construction for enhanced strength and reliability.
  • Maximum expansion of sleeve ensures secure fixture pull-down.
  • Anti-rotation expansion sleeve prevents anchor rotation during installation.
  • Designed for permanent anchoring into concrete.

Specifications

Dimensions (W x H x D) 12mm x 100mm x 2mm
Material Hot Dip Galvanised, Carbon Steel
Colour Grey
Model Number T12100GH
Pack Quantity 1
Drill Size 12mm
Fastener Size M12 x 100mm
Head Type Hex Nut

Ramset m12 x 100mm Galvanised Trubolt Hex Head Bolt is designed for reliable anchoring in concrete applications.

Questions & Answers

How does a stud anchor work?

As the nut is tightened, the clip at the base wedges against the concrete to lock the anchor in place.

Can it be used outdoors?

Yes - the hot-dip galvanised finish suits outdoor and exposed fixings.
