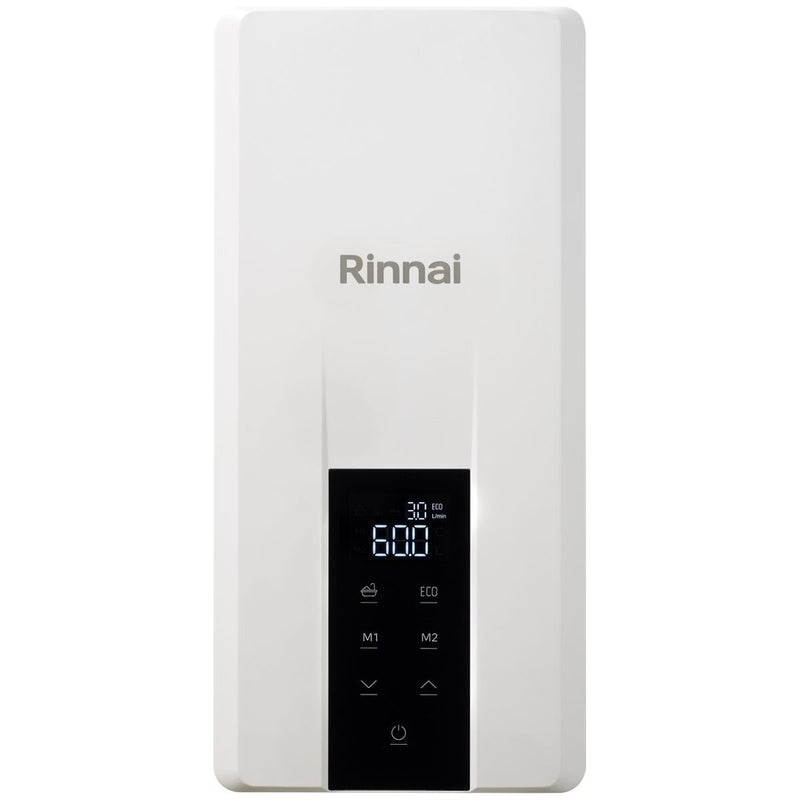

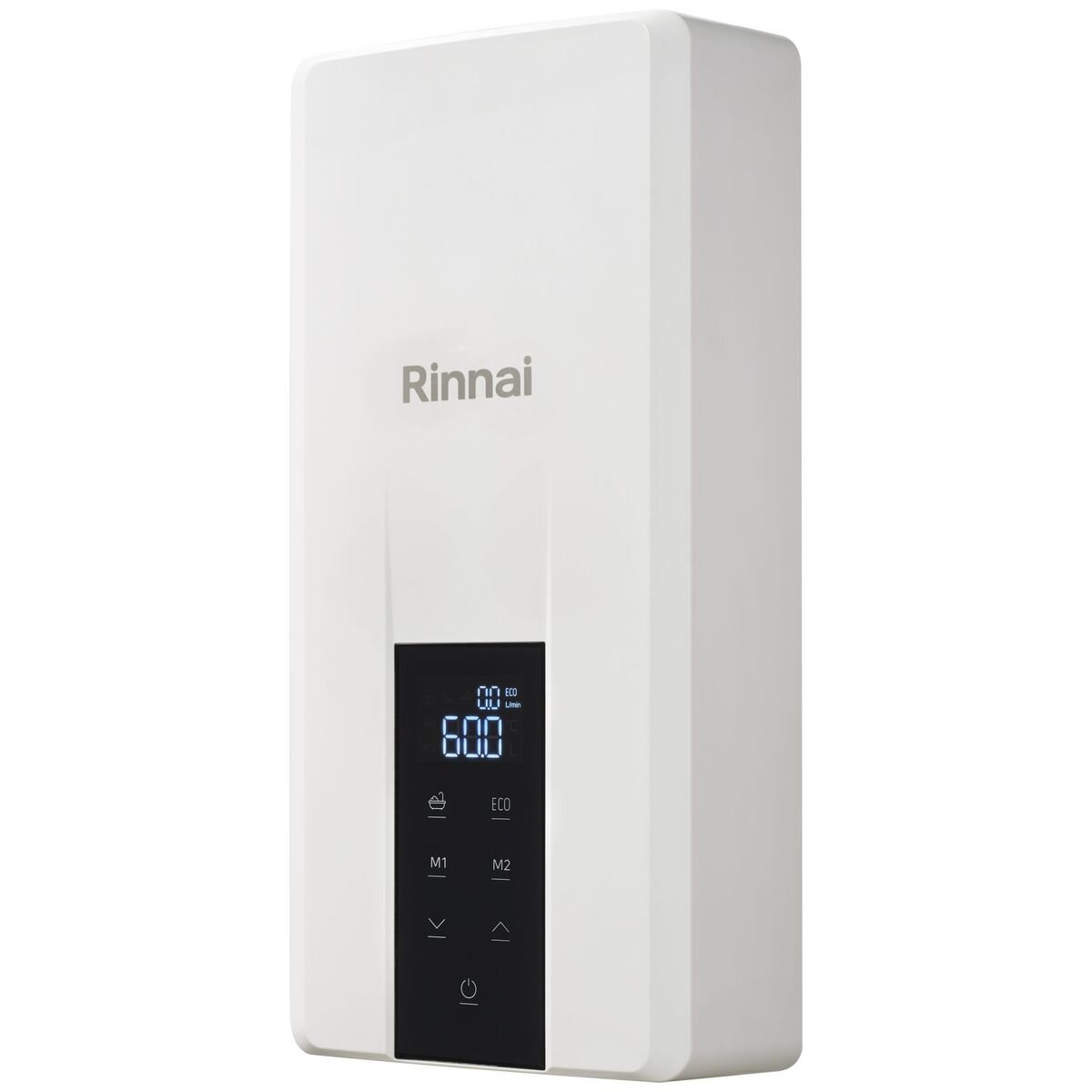

This Rinnai Efinity electric continuous flow hot water heater is a slimline unit in a Euro White cabinet, made for indoor installation. It heats water between 30°C and 60°C with precise temperature control and a touch screen display, running from a hardwired 3 phase supply.
Key features
-
Continuous flow – designed to keep hot water coming without running out.
-
Flow rate – 5.5 to 9.9L/min at 415V, with a minimum operating water flow rate of 2.5L/min.
-
Precise temperature control – electronic control within a 30°C to 60°C range.
-
Adjustable settings – set the temperature and flow rate to suit your needs.
-
Touch screen display – a Rinnai touch screen makes changes straightforward.
-
Safety lock – designed to prevent accidental operation.
-
Slimline design – a compact body that suits indoor spaces.
Good to know
- Indoor installation only, with a 3 phase hardwired electrical connection.
- Delivers hot water in accordance with AS 3498.
- Designed and intended for commercial and domestic use.
- The manufacturer warranty is 5 years, with 1 year for commercial use and 5 years for domestic use.
Specifications
Overview
| Brand |
Rinnai |
| Model number |
ECF19I60 |
| Product type |
Electric continuous flow hot water heater |
| Colour / finish |
White (Euro White cabinet finish) |

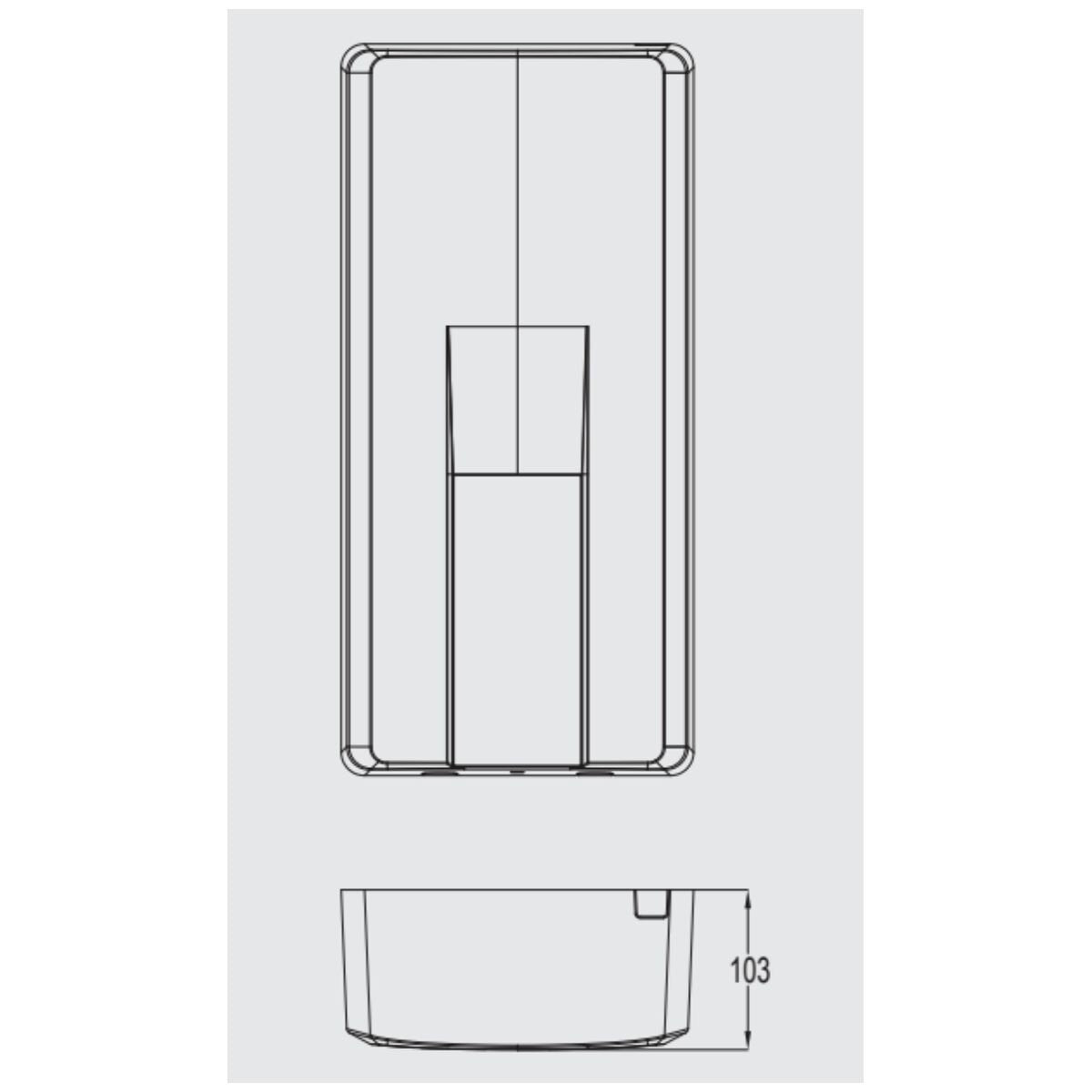

Size & weight
| Height |
483mm |
| Width |
228mm |
| Depth |
95mm |
| Weight |
5.5kg |
Programs & features
| Key functions |
Continuous flow, adjustable temperature and flow, safety lock |
| Controls |
Electronic temperature control, touch screen display |
Energy & power
| Power |
Hardwired 3 phase, 415V |
Installation & included
| Installation |
Indoor installation only |
Warranty & origin
| Warranty |
5 years; 1 year commercial use warranty, 5 year domestic use warranty |
| Country of origin |
China |
