The Rinnai MP228EML50 is a 2-pack of LPG continuous flow hot water systems made for small commercial premises such as cafes, salons, laundromats and childcare centres. It offers 48kW capacity and up to 37L per minute for high-demand use.
Key features
-
Commercial-grade output – delivers 48kW capacity and up to 37L per minute for high-demand usage.
-
External installation – designed for outdoor mounting with integrated anti-frost protection to -20°C.
-
6 star energy rating – gas is used only during operation for optimal energy savings.
-
Heat exchange bypass – reduces pressure loss while maintaining a stable water temperature.
-
Status monitor – a built-in display shows the set temperature and system status in real time.
-
MECs compatible – integrates with Manifold Electronic Control Systems for multi-unit setups.
-
Wide pressure range – operates effectively between 220 and 1000kPa for flexible installation conditions.
Good to know
- Suited to a commercial business with an LP gas connection, with each unit pre-set to 50°C and a temperature range of 50°C to 75°C.
- Connects with a 10A plug and lead.
- The manufacturer warranty is 3 Years, with a 5 Year Warranty on the internal Heat Exchanger system.
Specifications
Overview
| Brand |
Rinnai |
| Model number |
MP228EML50 |
| Product type |
Commercial continuous flow LPG hot water system 2-pack |
| Capacity |
37L/min |
| Colour / finish |
Silver finish |

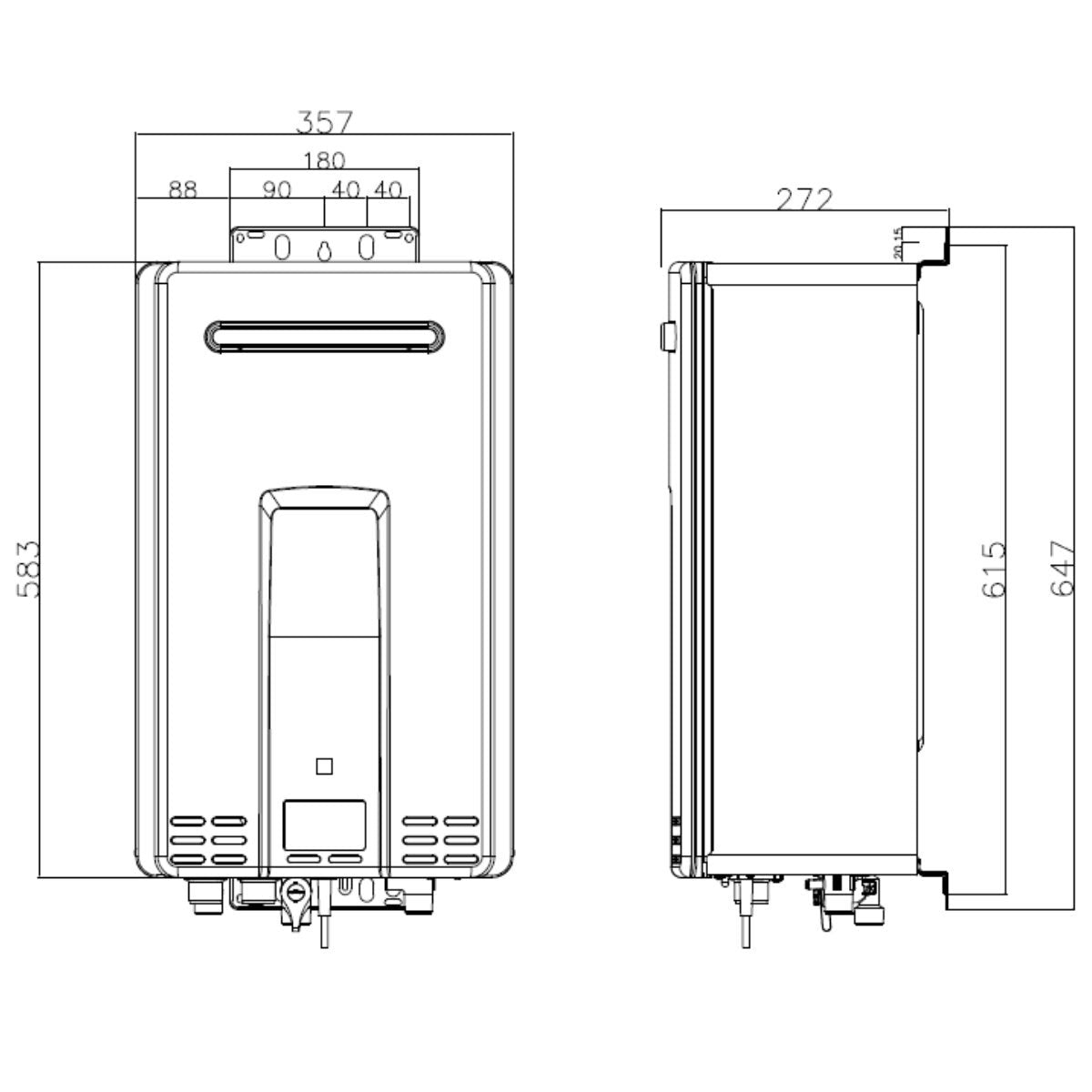

Size & weight
| Height |
583mm |
| Width |
357mm |
| Depth |
272mm |
| Weight |
20kg |
Programs & features
| Key functions |
Continuous flow, 48kW capacity, anti-frost protection to -20°C, heat exchange bypass, MECs compatible, temperature range 50°C to 75°C |
| Controls |
Built-in status monitor display |
Energy & power
| Energy star rating |
6 stars |
| Power |
10A plug and lead |
Installation & included
| Installation |
Outdoor mounting; operates between 220 and 1000kPa water pressure; LP gas connection |
| In the box |
2-pack |
Warranty & origin
| Warranty |
3 Years; 5 Year Warranty on the internal Heat Exchanger system |
| Country of origin |
Japan |
