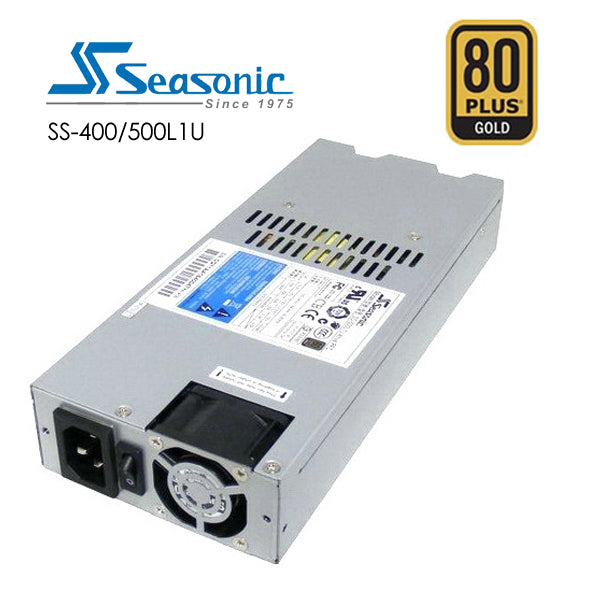

SeaSonic SS-500L1U 500W Active PFC 1U PSU

Power compact server and rackmount systems with the SeaSonic SS-500L1U Active PFC 1U PSU. Built to Intel EPS 12V compliance, it delivers reliable 500W output with DC-to-DC converter design and multiple protection features.

Features

  • 500W switch mode power supply
  • Intel EPS 12V specification compliance
  • Active PFC with 99% typical power factor correction
  • DC-to-DC converter design
  • High efficiency and reliability
  • Low THD, ripple and noise
  • Super low-noise fan control
  • Short circuit protection on all outputs
  • Over-voltage and over-power protection
  • 100% hi-pot tested and burn-in tested

Specifications

  • Brand: SeaSonic
  • Total Power: 500W
  • Input Type: Full range
  • Input Frequency: 47/63Hz
  • Efficiency: Greater than 87%
  • Line Regulation: +/-1% typical
  • Load Regulation: +/-5% typical
  • Cross Regulation: +/-5% typical
  • Ripple and Noise: 1%
  • MTBF: Greater than 100K hours, excluding DC fan
  • +3.3V: 20A
  • +5V: 20A
  • +12V Combined: 40A, 480W
  • -12V: 0.3A, 3.6W
  • +5Vsb: 2.5A, 12.5W
  • Dimensions: 235mm L x 100mm W x 40mm H
  • Connectors: Customized modular cables
  • Certifications: CUL, UV, CB, CE, FCC and C-Tick

Package Contents

  • 1 x SeaSonic 500W Active PFC F3 1U PSU
