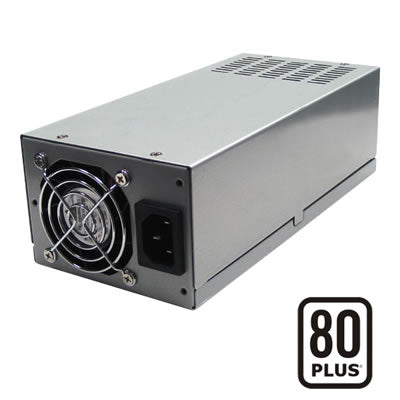

SeaSonic 600W Active PFC F0 2U PSU (SS-600H2U)

Description

The SeaSonic SS-600H2U is a robust, industrial-level 600W power supply designed specifically for 2U rackmount server chassis. Engineered for high efficiency and long-term reliability in demanding environments, this unit features Active Power Factor Correction (Active PFC), providing clean, stable power across the full AC input range (100–240VAC). Most notably, the SS-600H2U is a fully modular PSU, greatly simplifying installation and improving cable management within compact server enclosures.

Key Features

• 2U Rackmount Form Factor: Designed with a compact profile (typically $270 \text{ mm} \times 100 \text{ mm} \times 70 \text{ mm}$) to fit standard 2U server and industrial chassis.

• 600W Total Power: Provides a continuous output of 600 Watts, with a dedicated +12V rail capable of supporting up to 45A (540W), making it suitable for high-density server configurations.

• Active PFC Circuitry: Features Active Power Factor Correction (typically 99% PF) to ensure high power efficiency and compliance with industrial standards.

• Fully Modular Design: Utilizes fully modular cables with an easy-swap connector design, allowing for superior cable management and flexibility during server builds or maintenance.

• Server Reliability: Built for industrial use with a high-reliability ball bearing fan and Smart & Silent Fan Control (S2FC) to maintain component lifespan and reduce noise in data center environments.

• Comprehensive Protection: Includes vital protection circuits such as Short Circuit Protection (SCP), Over Voltage Protection (OVP), and Over Power Protection (OPP).

Technical Specifications (Summary)
