Seasonic 460W Industrial Power Supply, 80 PLUS Efficiency, Fully Modular, Silent Fan

The Seasonic 460W Industrial Power Supply is designed for high efficiency and reliability.

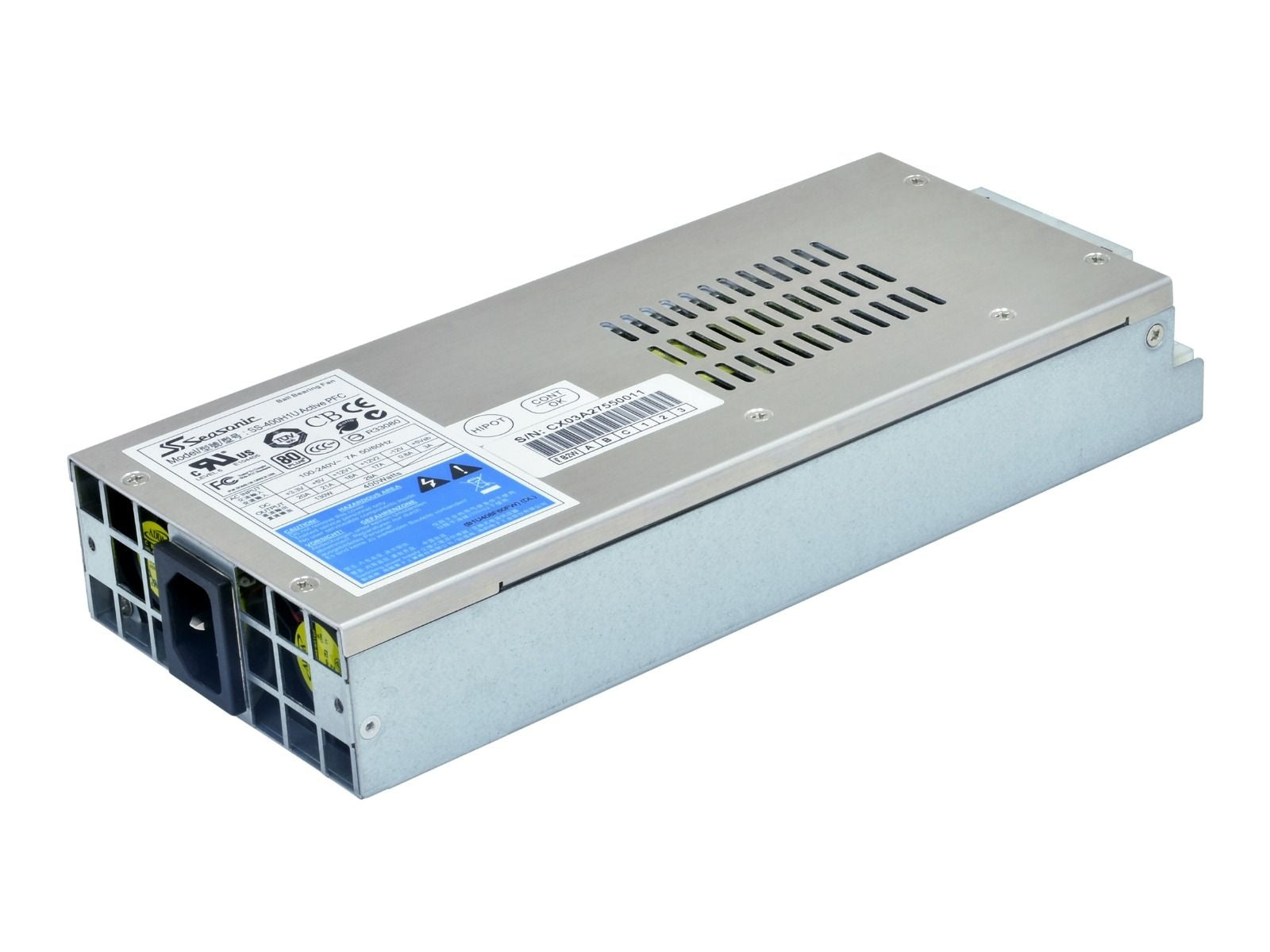

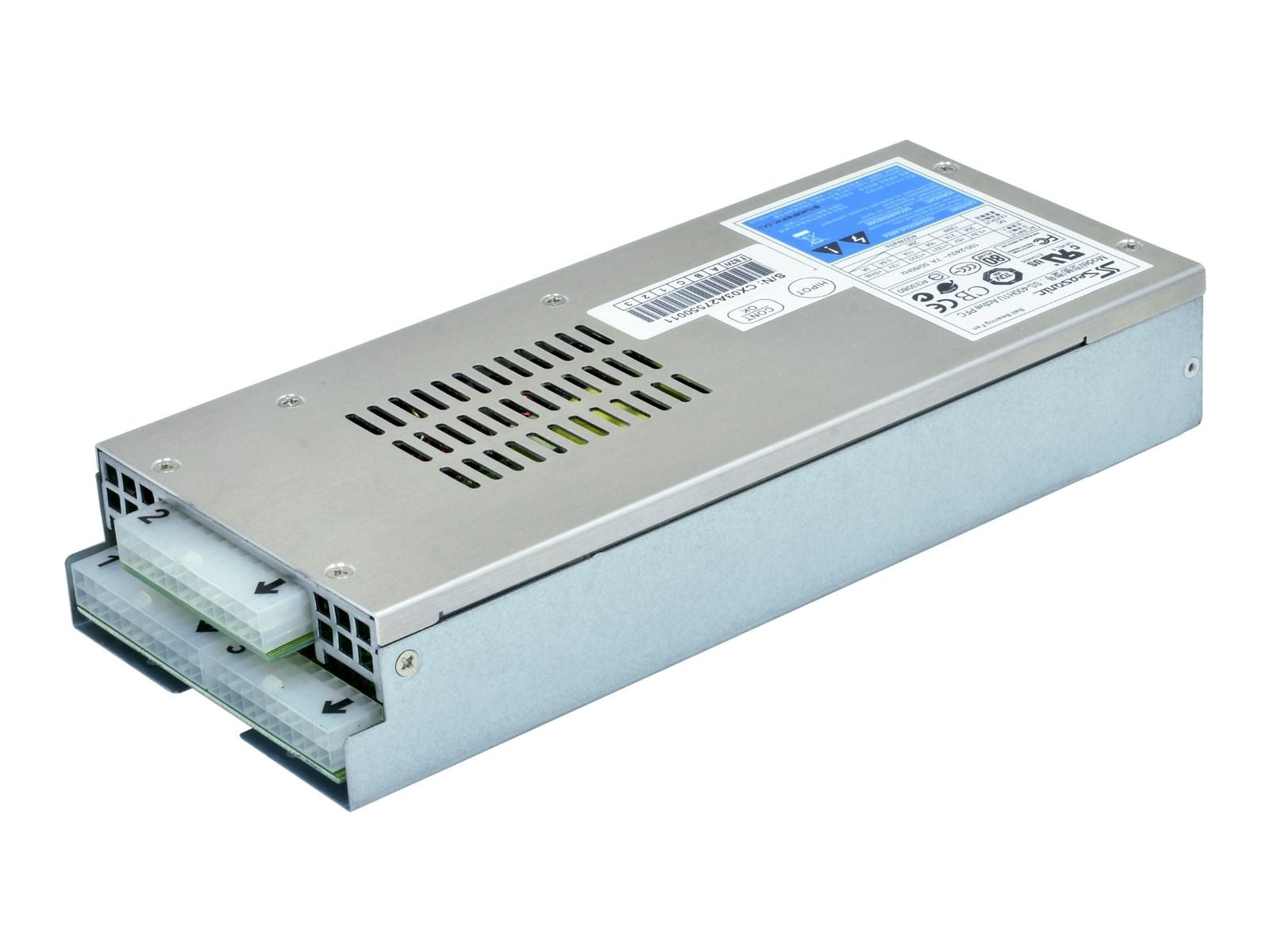

Seasonic 460W Industrial Power Supply

This power supply is 80 PLUS® efficiency rated and features a high reliability ball bearing fan. It includes fully modular cables and easy-swap connectors for versatility. The Seasonic Smart and Silent Fan Control (S2FC) system ensures quiet operation, while the unit complies with the latest PFC harmonics and is protected against short circuit, over voltage, and over power.

Key Features & Benefits

• Input frequency: 50 / 60 Hz
• Efficiency (220 V AC - 240 V AC, full load): 83 % (typical)
• Efficiency (100 V AC - 120 V AC, full load): 80 % (typical)
• Dielectric withstand, input to frame/ground: 1800 VAC, 1 sec
• Dielectric withstand, input to output: 1800 VAC, 1 sec
• Line regulation: ± 1 % (typical)
• Load regulation: ± 5 % (typical)
• Cross regulation: ± 5 % (typical)
• MTBF, full load @ 25 °C ambient (excl. DC fan): > 100,000 hours
• Active Power Factor Correction: 99 % (typical)

Specifications

• DC Outputs
• +3.3 V: 20 A
• +5 V: 21 A
• +12 Combined: 34 A
• -12 V: 0.8 A
• +5 V_sb: 3 A
• Total continuous power: 460 W
• Input Type: 100–240 VAC

Enjoy the reliability and efficiency of the Seasonic 460W Industrial Power Supply.
