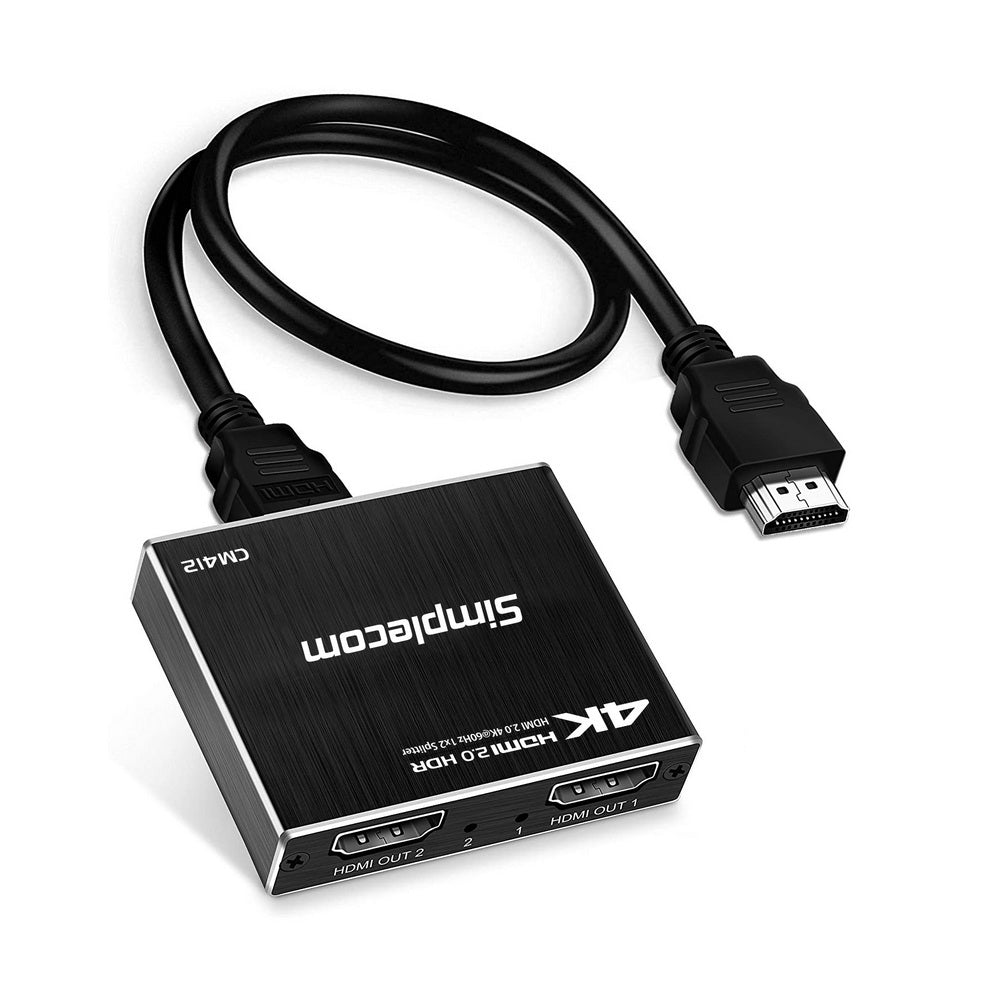

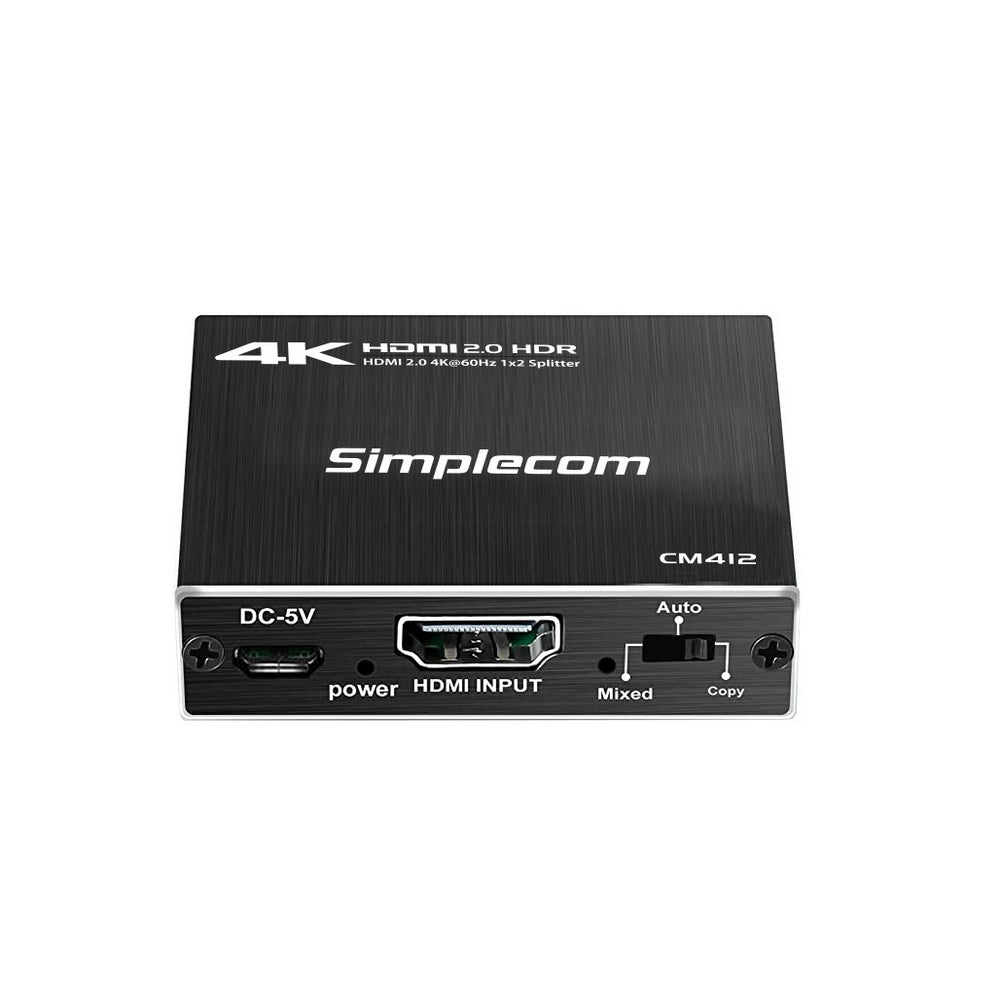

Simplecom CM412 HDMI 2.0 1x2 Splitter 4K 60Hz

Simplecom CM412 HDMI 2.0 1x2 Splitter

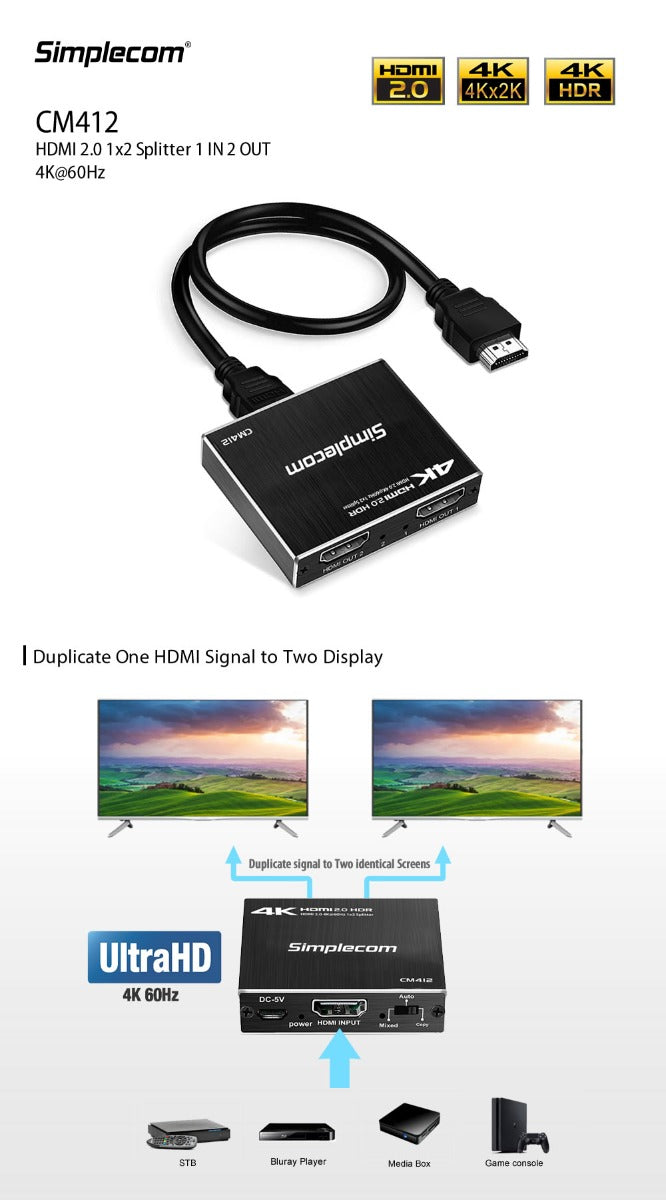

Duplicate one HDMI source to two displays with the Simplecom CM412 HDMI splitter. Supporting 4K@60Hz, HDR10 and HDCP 2.2, it is ideal for streaming boxes, game consoles and mixed-resolution display setups.

Features

• 1 input to 2 output HDMI splitter
• Duplicates one HDMI source to two HDMI displays
• Supports up to 4K@60Hz
• Supports HDMI 2.0b, HDMI 1.4 and HDMI 1.3
• Supports HDR10, 3D and HDCP 2.2

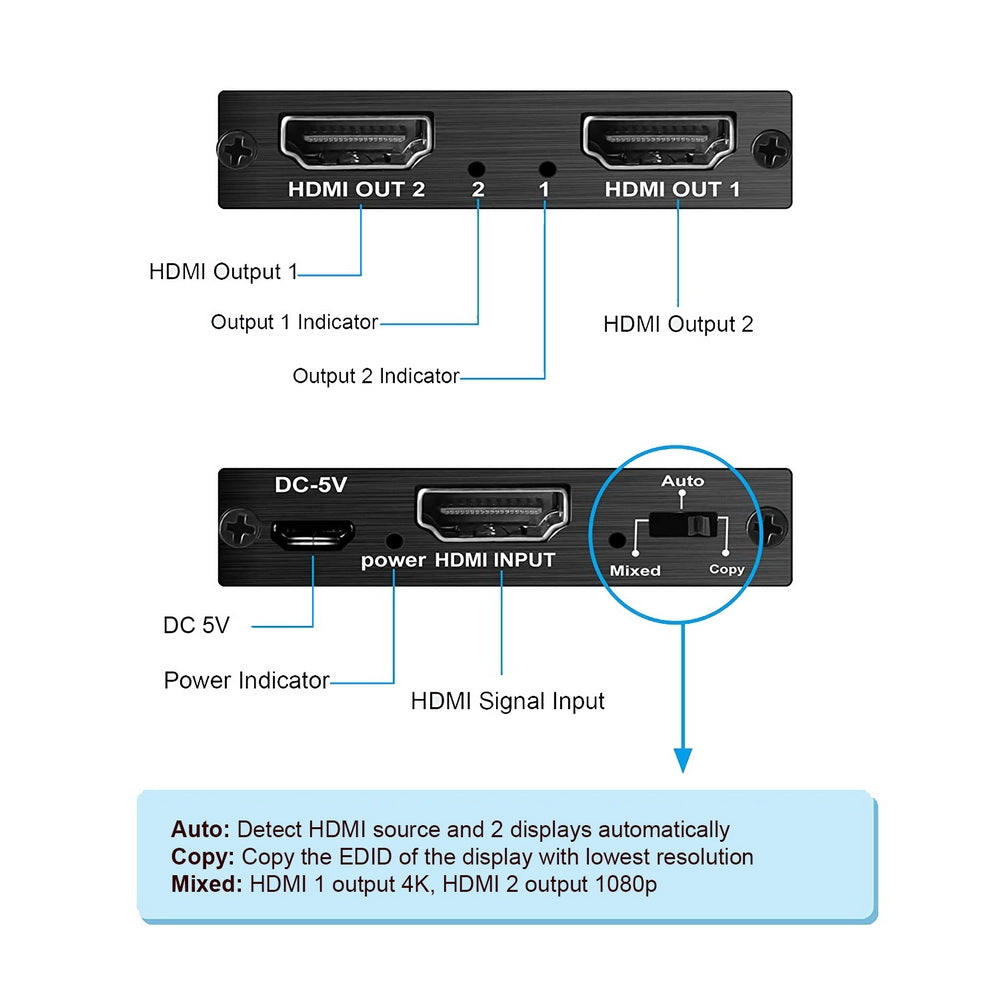

• Downscaling feature supports 4K and 1080p output simultaneously
• Auto-detects connected display capabilities
• LED power and signal indicators
• Plug and play, no software required

Specifications

• Brand: Simplecom
• Input Ports: 1 x HDMI female
• Output Ports: 2 x HDMI female
• HDMI Version: HDMI 2.0b
• Resolution: Up to 2160p@60Hz
• Bandwidth: 18Gbps
• HDR Format: HDR10
• HDCP Support: HDCP 2.2 and HDCP 1.4
• Power Requirement: USB DC 5V 1A
• Maximum Power Consumption: 5W
• Operating Temperature: -15°C to +55°C
• Dimensions: 58mm x 48mm x 12mm

Package Contents

• 1 x HDMI 2.0 1x2 4K Splitter
• 1 x HDMI Cable
• 1 x USB Power Cable
• 1 x User Manual

Important Notes

Downscaling supports 1080p only. 720p and 480p are not supported. YUV 4:2:2 downscaling and refresh frame-rate conversion are not supported.
