Sliding Patio Door Handle Set, Keyed, White, 0.75in to 1.4in Thickness

Sliding patio door handle set suitable for sliding glass patio door.

Sliding Patio Door Handle Set Mortise Lock

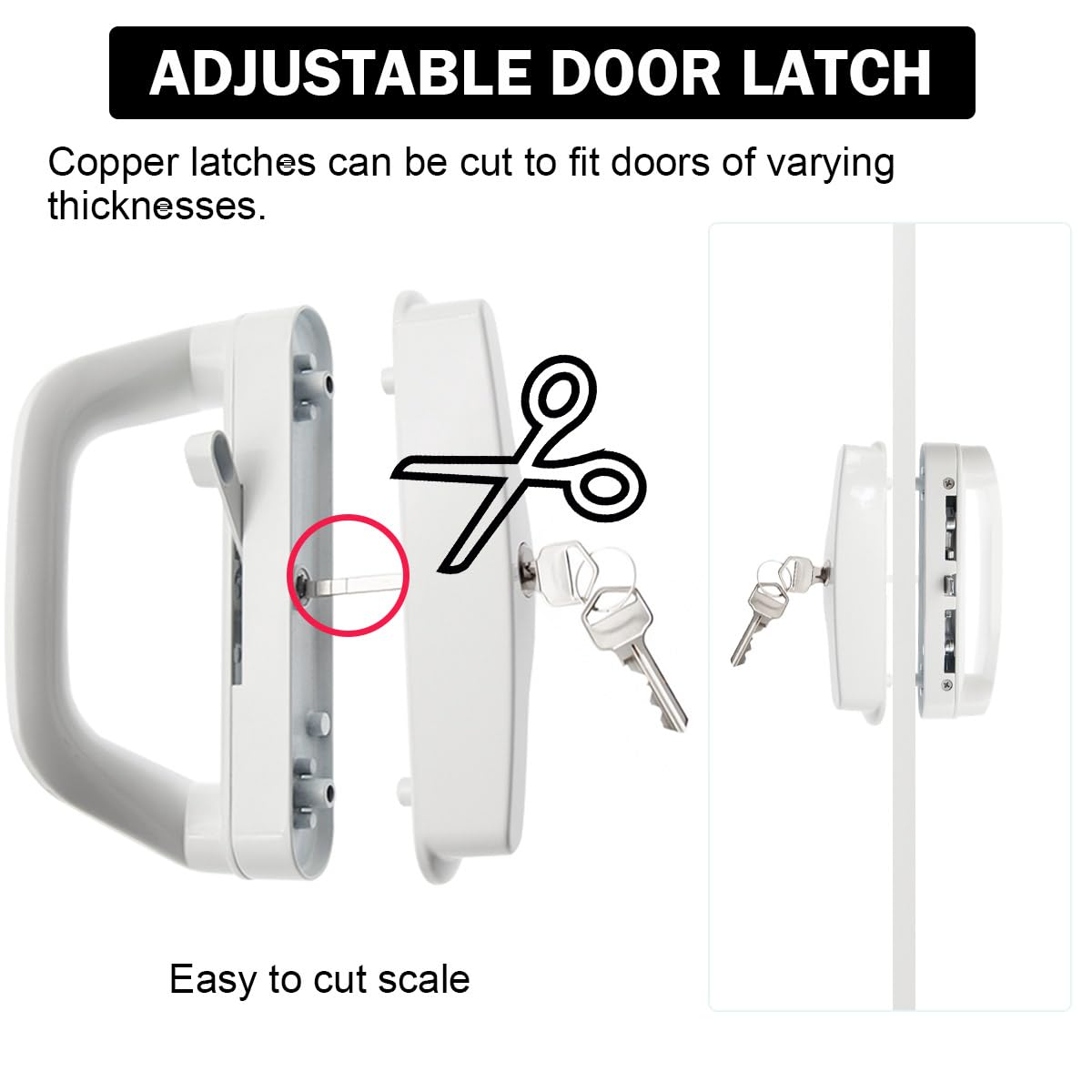

This sliding patio door handle set is made of high-quality zinc and aluminum alloy, featuring a smooth surface and comfortable hand feeling. It is easy to install, suitable for door thickness from 0.75in / 2cm to 1.4in / 3.5cm, with a center hole distance of the handle: 12.4cm/4.9in; the hole distance of the mortise lock(2): 16cm/6.3in. Installation requires drilling. Follow these steps: 1. Remove 2 screws from the interior handle, separate the handle from the mortise lock(1); 2. Insert copper lock latch, align inside handle and mortise lock(1) and outside handle with pre-drilled door holes, insert screws, tighten; 3. Unscrew the screws of mortise lock(2), install and you're done.

Key Features & Benefits

• High-quality zinc and aluminum alloy
• Smooth surface and comfortable hand feeling
• Easy to install
• Suitable for door thickness from 0.75in / 2cm to 1.4in / 3.5cm

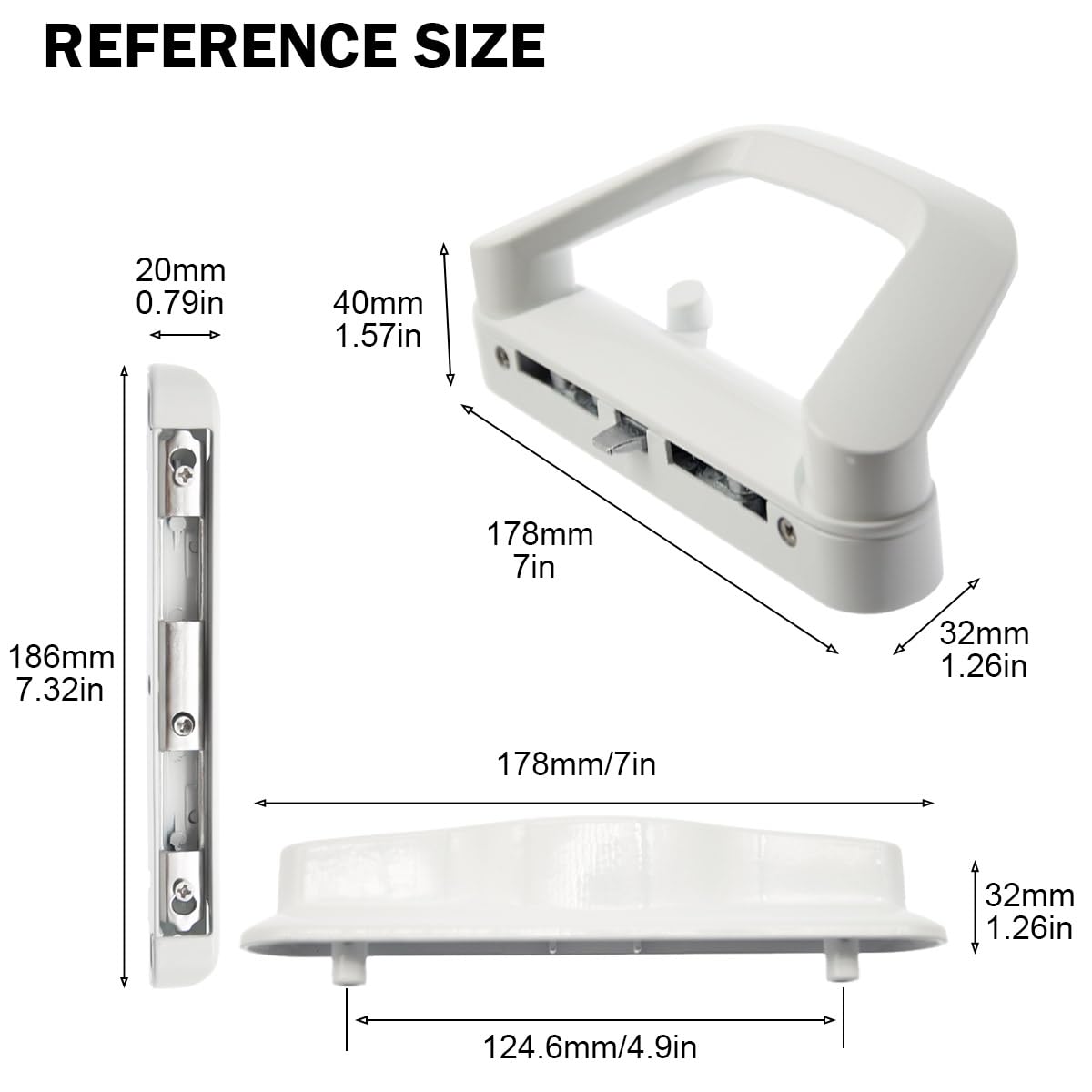

• Center hole distance of the handle: 12.4cm/4.9in
• Hole distance of the mortise lock(2): 16cm/6.3in
• Reversible door handle for right or left-handed doors
• Convertible with key function
• Exterior pull with key cylinder
• Wide application for various door styles and materials
• Color: White
• Weight: 900g

Specifications

• Color: White
• Weight: 900g

Package Includes / What's in the Box

• 1x door lock set

This product is designed to enhance the security and functionality of your sliding patio doors.
