TP-Link 1000Base-BX WDM Bi-Directional SFP Module 1550nm TX 1310nm RX 2KM
Description & Specs

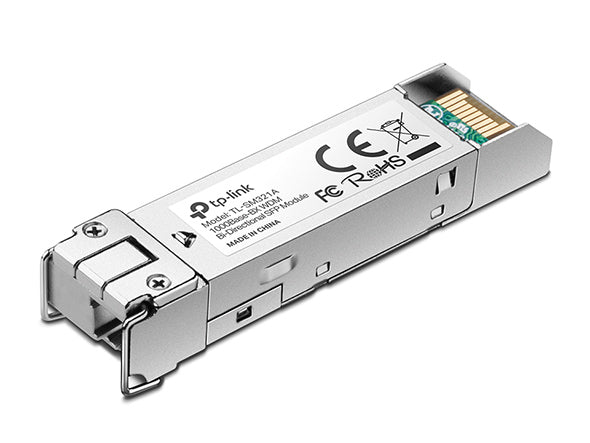

TP-Link 1000Base-BX WDM Bi-Directional SFP Module
This TP-Link SFP module supports bi-directional transmission with 1000Base-BX standard.
Hardware Features
- Digital Diagnostic Monitoring (DDM) supported
- Complies with SFP-MSA standards
- Hot-swappable design
Technical Specifications
| Parameter | Details |
|---|---|
| TX Wavelength | 1550 nm |
| RX Wavelength | 1310 nm |
| Max Cable Length | 2 km (9/125 μm Single-Mode Fiber) |
| Data Rate | 1.25 Gbps |
| Port Type | LC Simplex |
| Power Supply | 3.3 V |
| Operating Temperature | 0–70 °C (32–158 °F) |
| Storage Temperature | -40–85 °C (-40–185 °F) |
| Operating Humidity | 10–90% RH Non-Condensing |
| Storage Humidity | 5–90% RH Non-Condensing |
Compliance
FCC and CE certified for safety and emission requirements.
This module is designed for reliable fiber optic network connections up to 2 kilometers.
