UGREEN 20805 USB 3.0 4-Port Hub with USB-C Power Port

UGREEN 20805 USB 3.0 4-Port Hub Specification Sheet

The UGREEN 20805 (Model CM473) is a high-performance connectivity expansion solution designed to add multiple high-speed ports to any host computer with a single USB-A connection. It includes an essential auxiliary power input for stable operation of high-draw peripherals.

Core Functionality and Performance

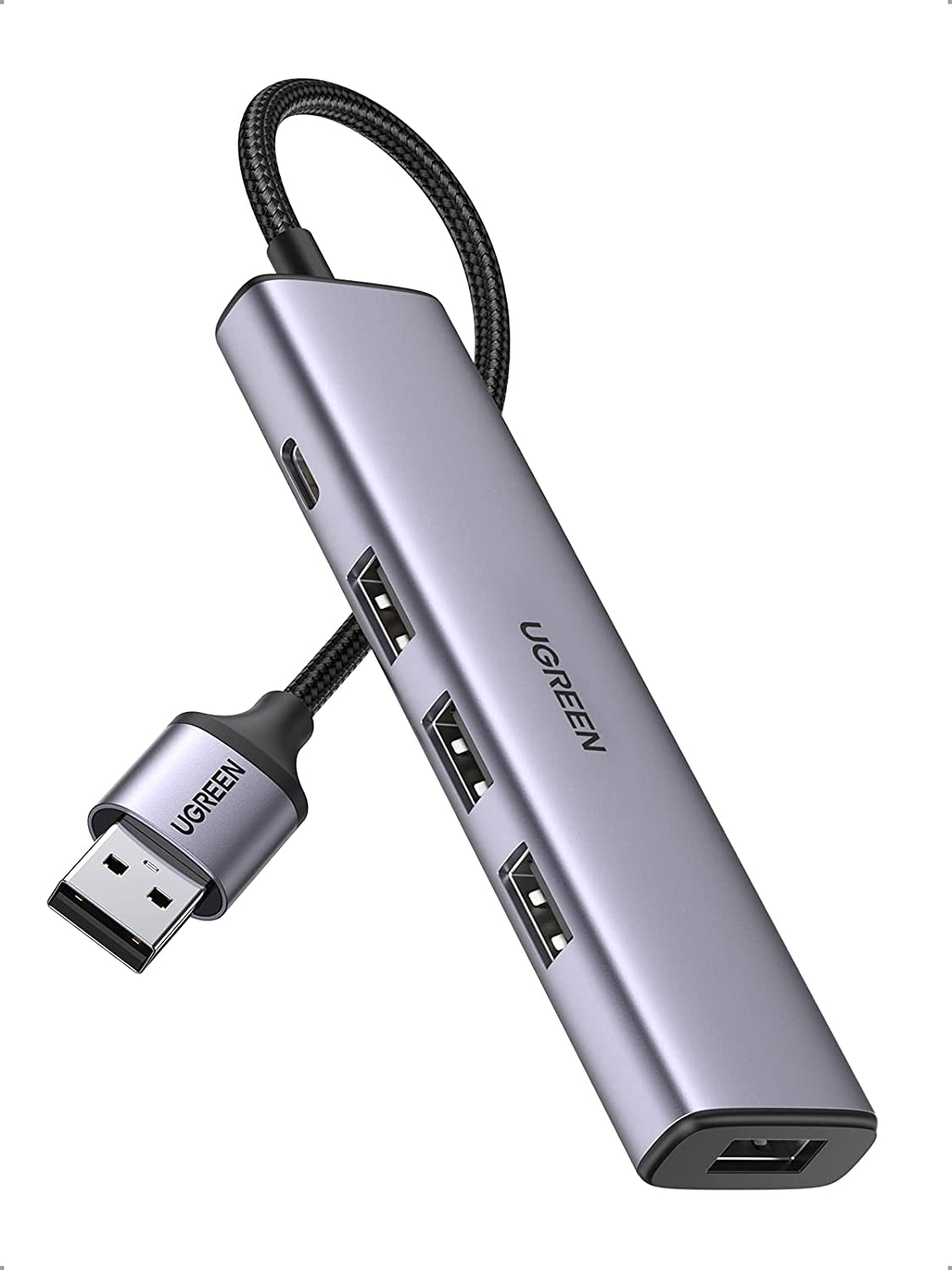

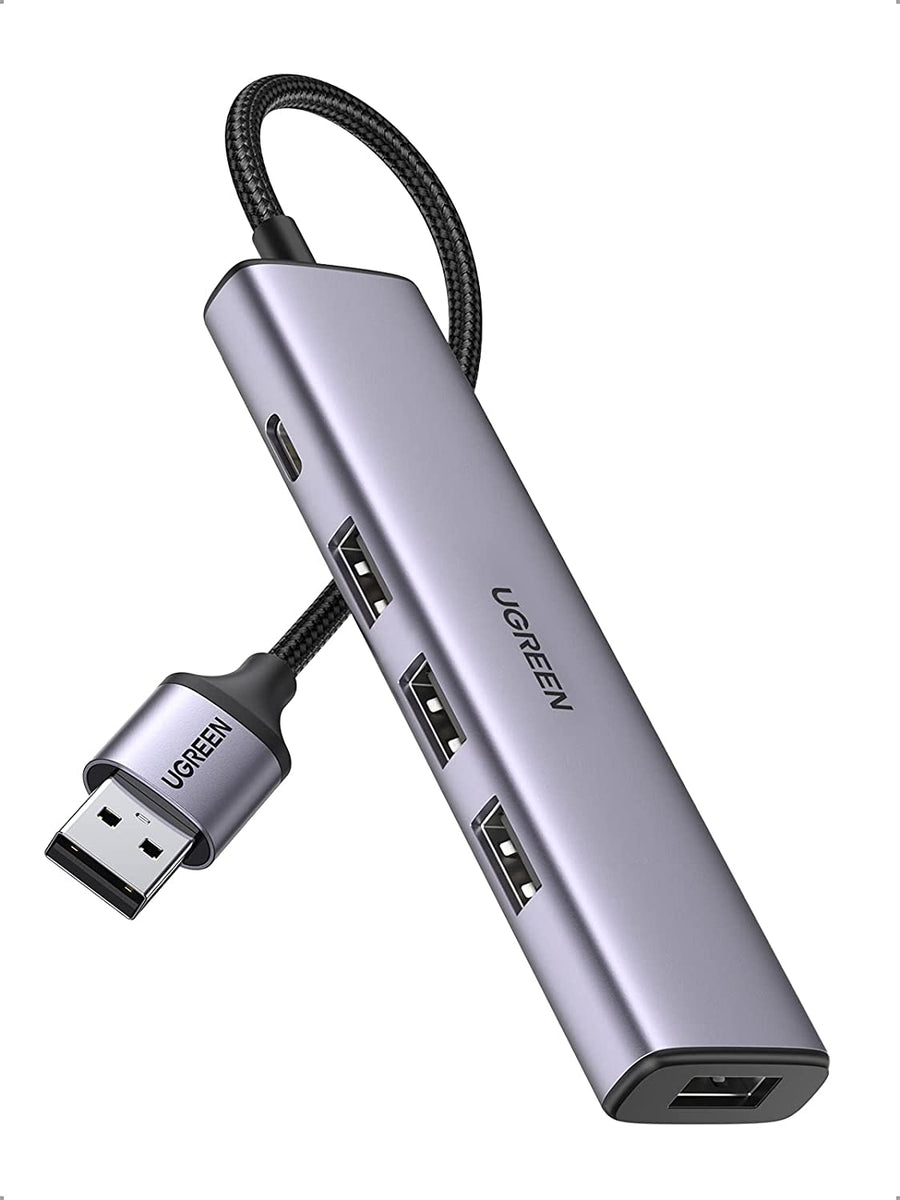

• Port Expansion: The device converts one host USB-A port into four independent USB 3.0 Type-A ports.

• Data Standard: Complies with the USB 3.0 (USB 3.2 Gen 1) standard.

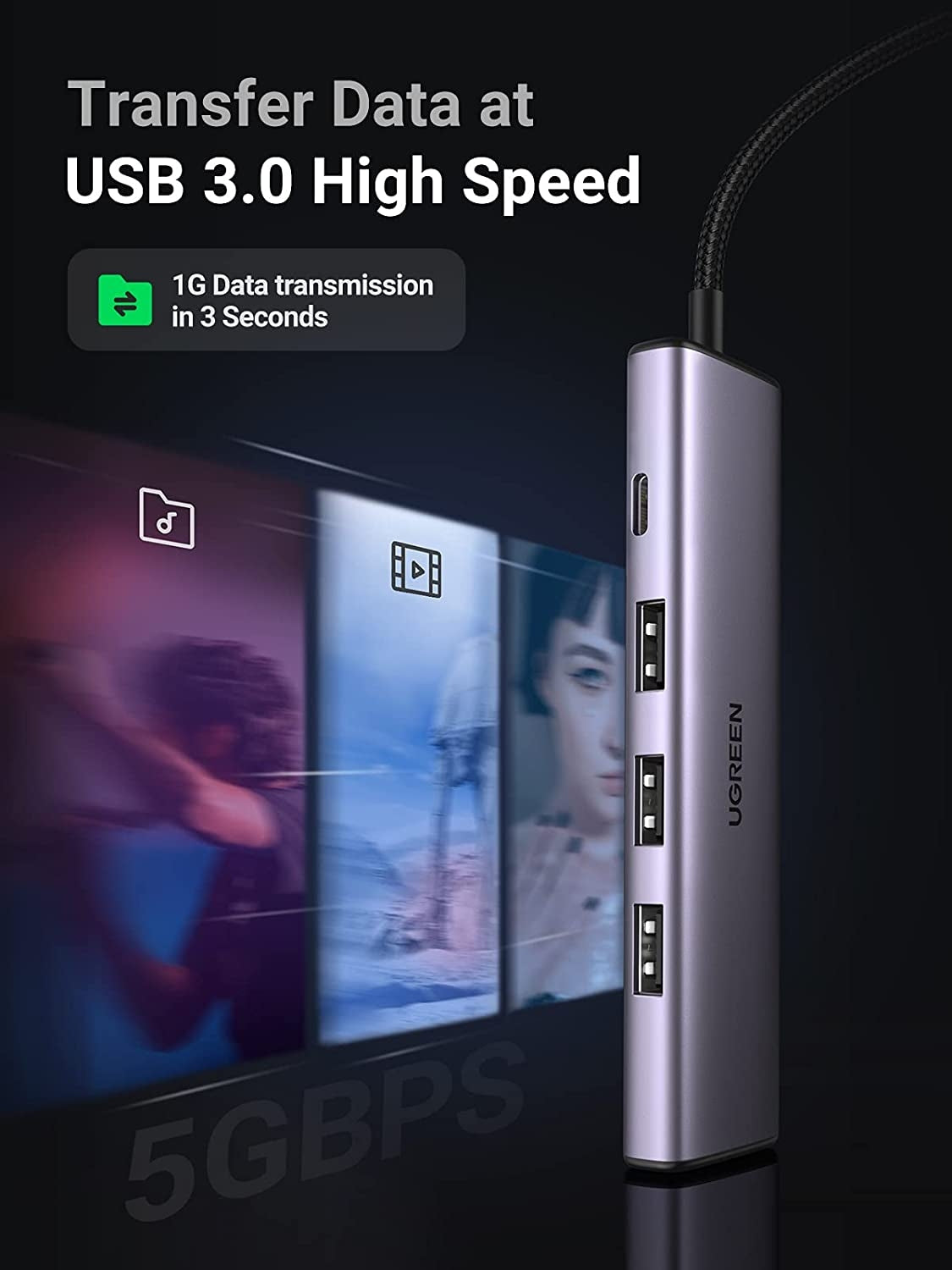

• Transfer Rate: Supports a maximum data transfer speed of up to 5Gbps (SuperSpeed). This capability is critical for fast data synchronization and transfers with external storage devices.

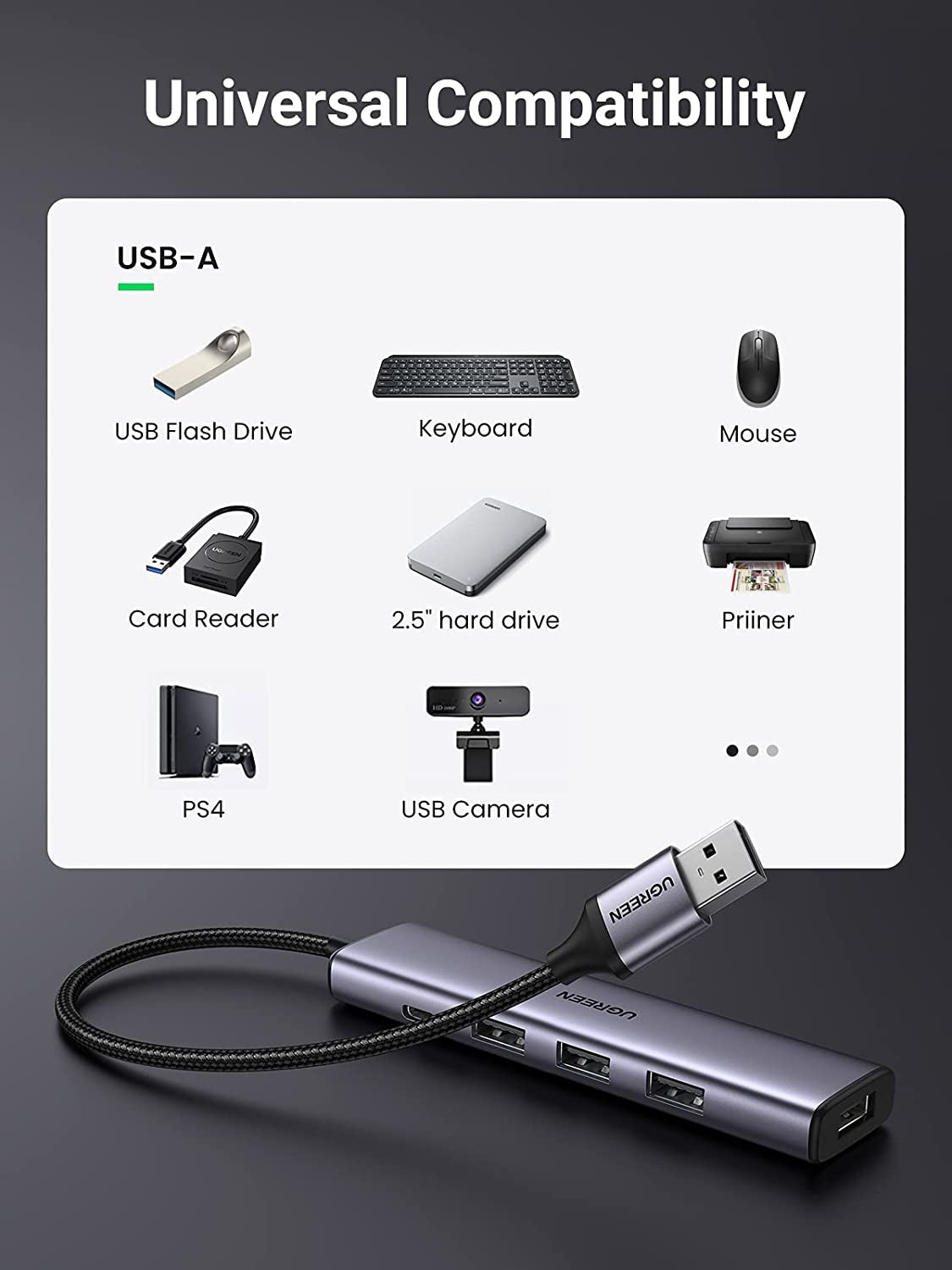

• Backward Compatibility: Fully compatible with legacy USB 2.0 and USB 1.1 standards.

Power Management

• Power Input: Features a dedicated USB-C port (DC 5V) for external power supply.

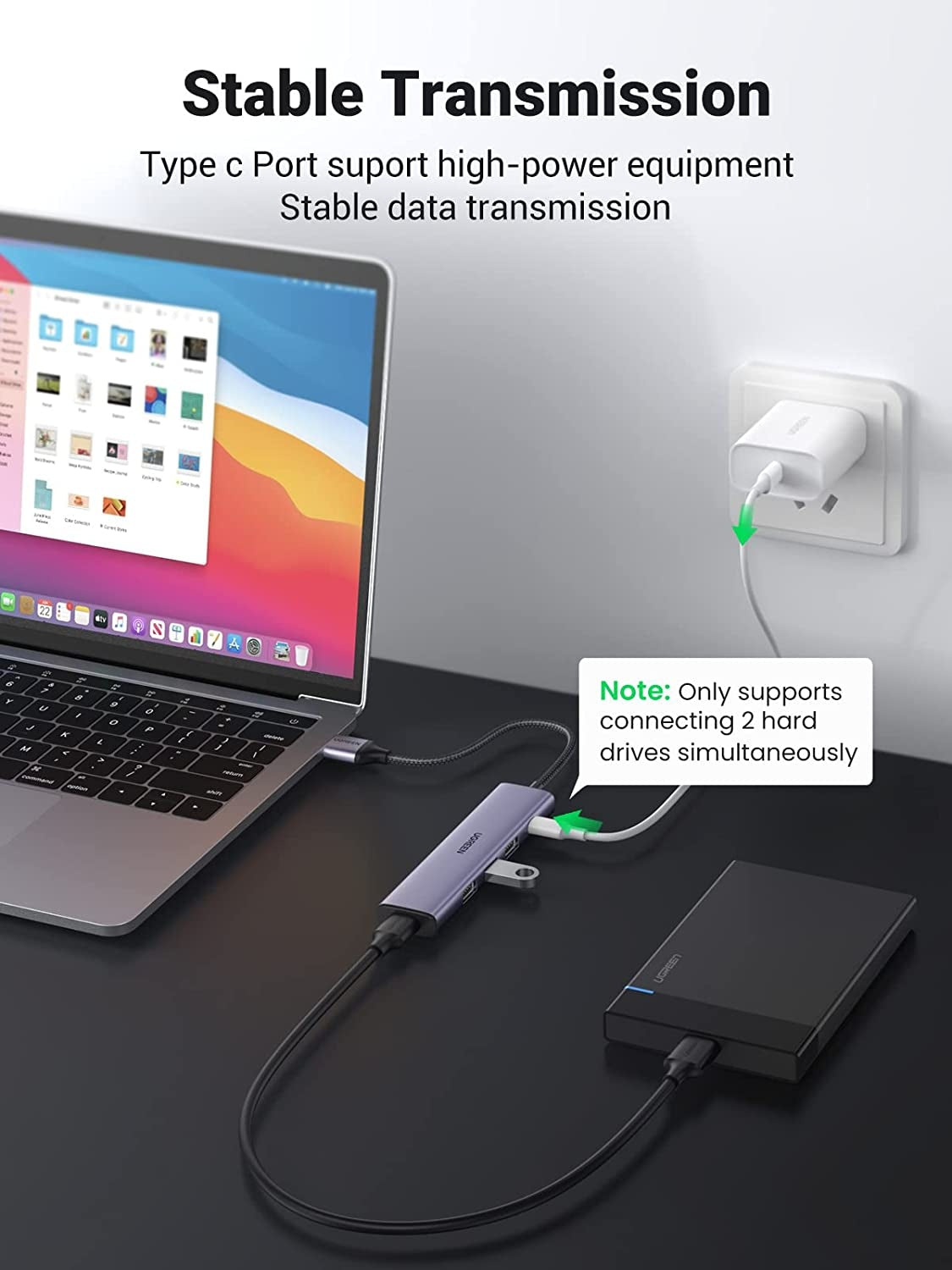

• Purpose: This port is utilized to supply supplemental power to the hub. It is required when connecting power-intensive peripherals, such as multiple external hard disk drives (HDDs) or solid-state drives (SSDs), to ensure operational stability and prevent disconnections.

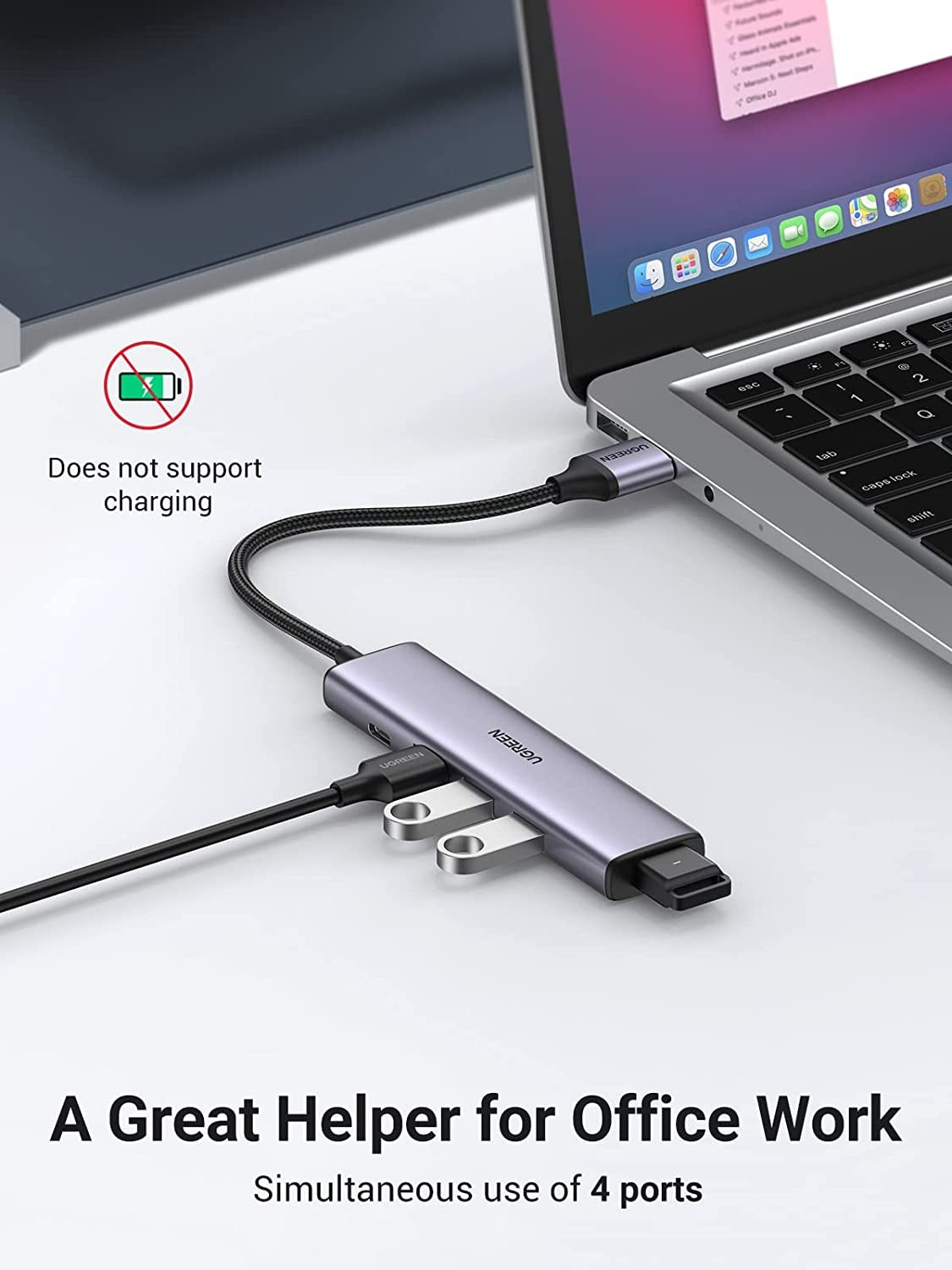

• Limitation: The USB-C port is strictly for power input to the hub and does not facilitate host charging or data transfer.

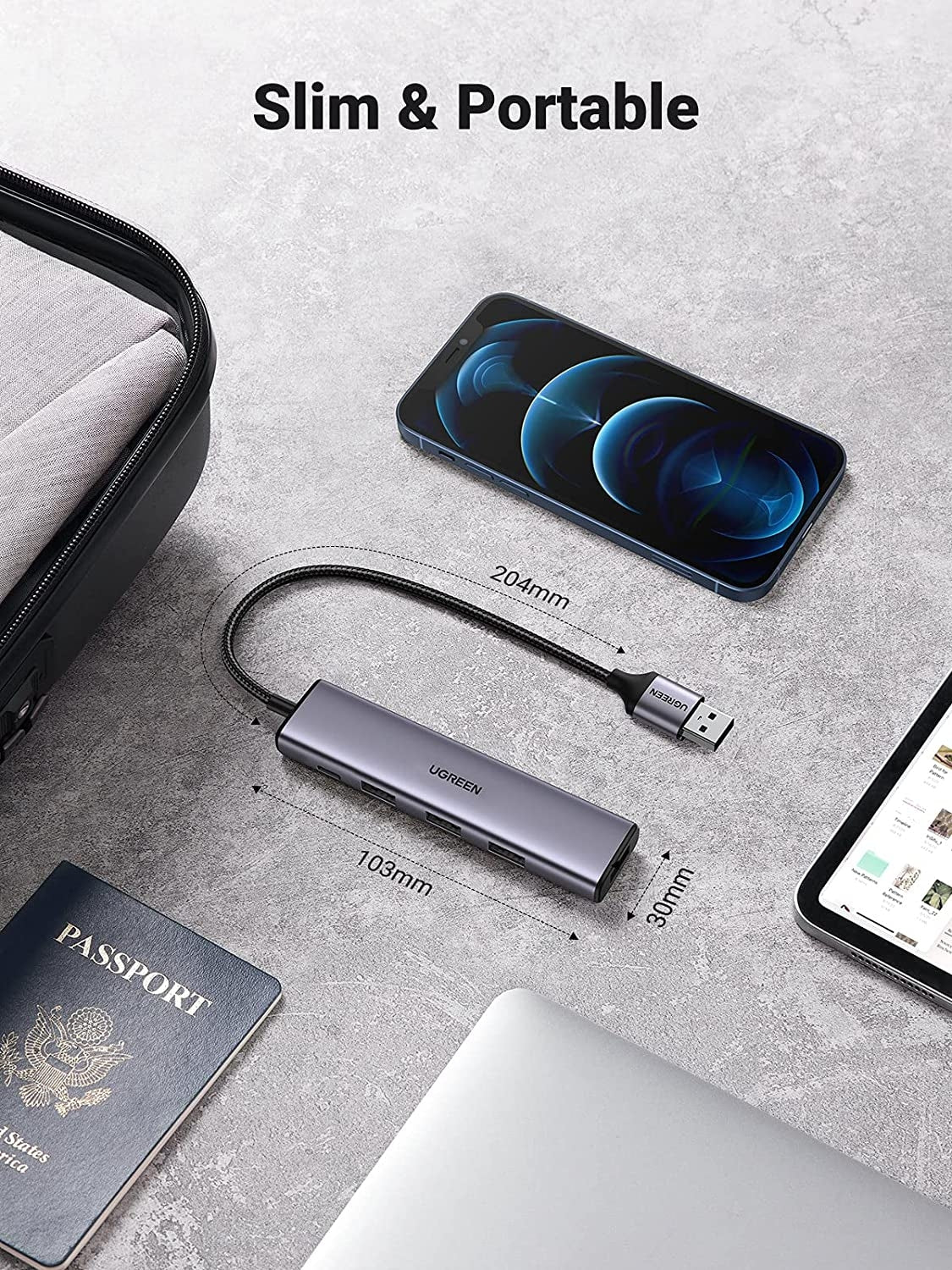

Physical and Technical Specifications
