This Haier Pinnacle hi wall split system is a reverse cycle inverter air conditioner with 3.5kW of cooling and 3.7kW of heating, suited to smaller rooms. UV protection, a self-cleaning function and Wi-Fi control add convenience for a healthier home.
Key features
-
Reverse cycle inverter – 3.5kW cooling and 3.7kW heating in a matte white finish.
-
UV protect – UV light designed to target airborne hazards.
-
Self-cleaning – a self clean mode for the indoor and outdoor unit, plus a 60°C sterilisation mode for the indoor unit.
-
Wi-Fi enabled – works with the SmartHQ app and smart home voice control.
-
Coanda Plus airflow – far-reaching, even air flow around the room.
-
Quiet operation – indoor sound levels of 40/36/32/22dB, with five fan speeds.
-
DRED enabled and timer – includes a timer and is DRED enabled.
Good to know
- Hardwired connection with a 3.5kW connected load and 14.5A maximum current.

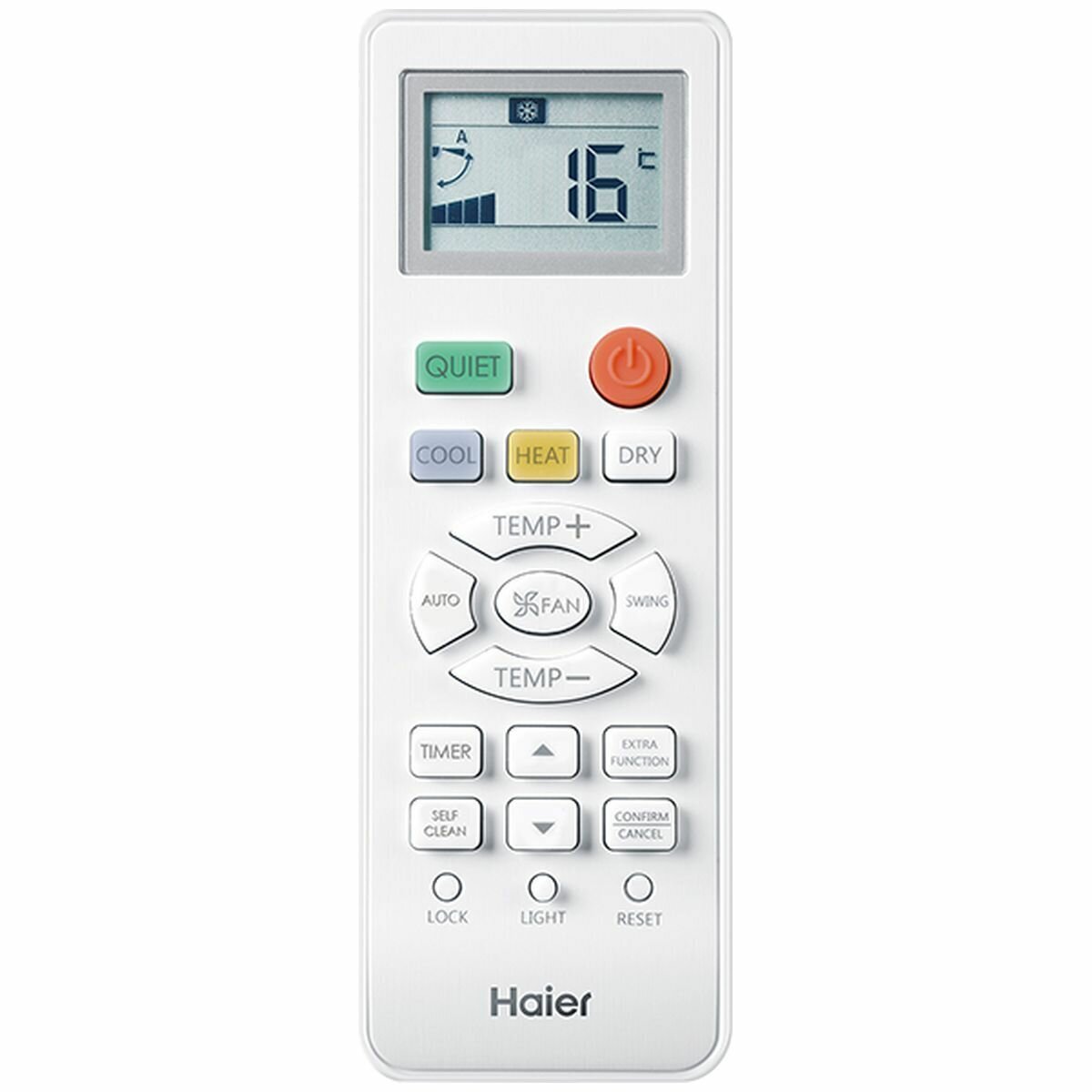

- A remote control is included.
- Not intended or designed for commercial use.
- Covered by a 5 Year Domestic Warranty on all parts and labour.
Specifications
Overview
| Brand |
Haier |
| Model number |
AS35PBDHRA-SET |
| Product type |
Hi wall reverse cycle inverter split system air conditioner |
| Capacity |
3.5kW cooling, 3.7kW heating |
| Colour / finish |
Matte white |
Size & weight
| Height |
292mm |
| Width |
805mm |
| Depth |
200mm |
| Weight |
8.7kg |
Programs & features
| Key functions |
Reverse cycle heating and cooling, UV protect, Self clean, 60°C sterilisation mode, Wi-Fi, Coanda Plus airflow, Timer, DRED enabled |
| Controls |
Remote control, SmartHQ app, smart home voice control |
Energy & power
| Noise level |
40dB |
| Power |
Hardwired, 3.5kW connected load, 14.5A maximum current |
Installation & included
| Installation |
Suitable for smaller rooms |
| In the box |
Remote control |
Warranty & origin
| Warranty |
5 Year Domestic Warranty On all Parts & Labour |
| Country of origin |
China |
