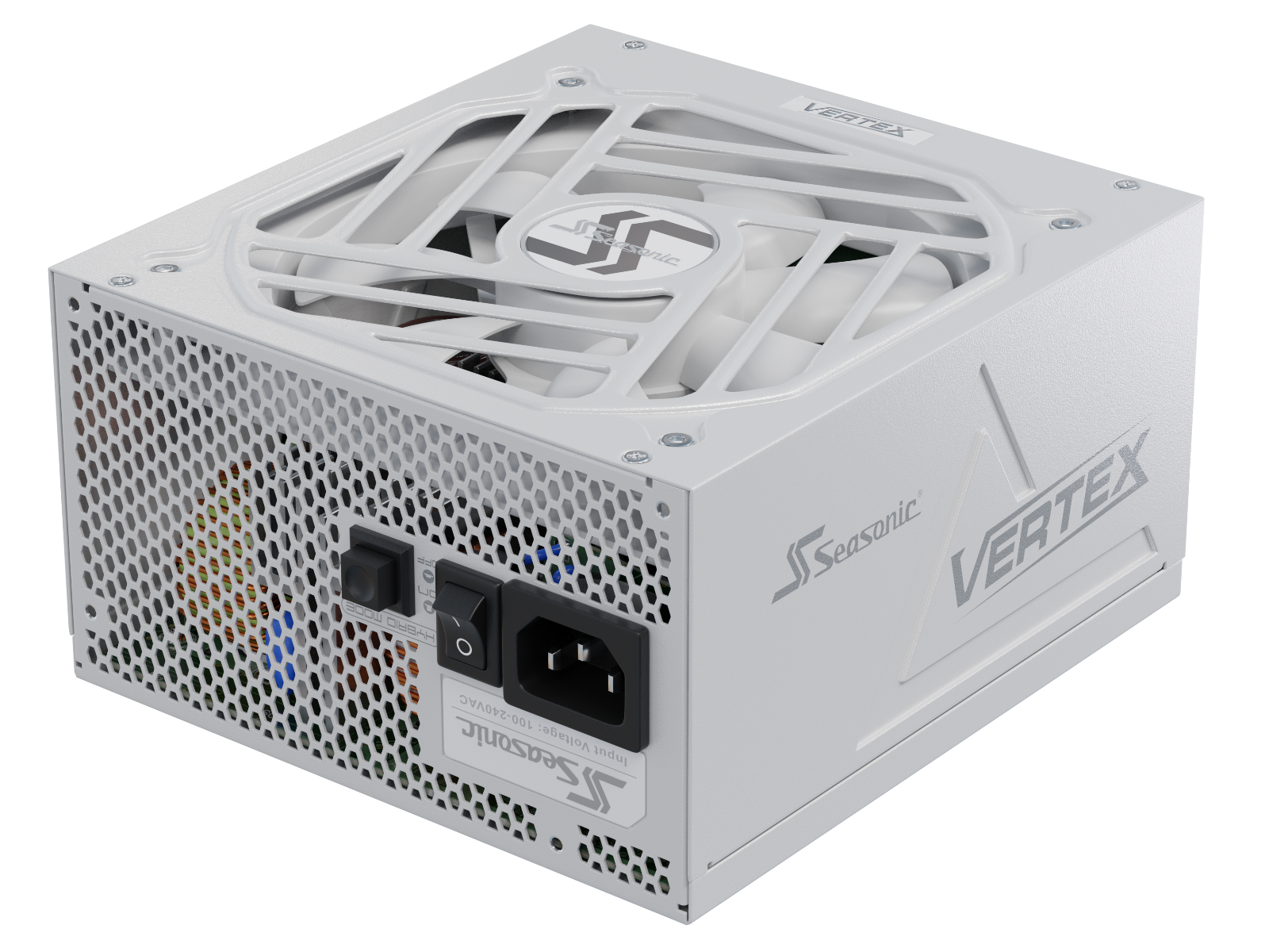

Seasonic VERTEX GX-1000 White 1000W ATX 3.0 Gold Modular PSU

Seasonic VERTEX GX-1000 White 1000W Modular PSU

Power a high-performance PC build with the Seasonic VERTEX GX-1000 White 1000W power supply. Featuring 80 PLUS Gold efficiency, ATX 3.0 support, full modular cabling and a 16-pin PCIe Gen 5 cable, it is built for modern gaming and workstation systems.

Features

• 1000W total continuous power output
• 80 PLUS Gold certified efficiency
• Fully modular design with flat white cables
• ATX 3.0 support

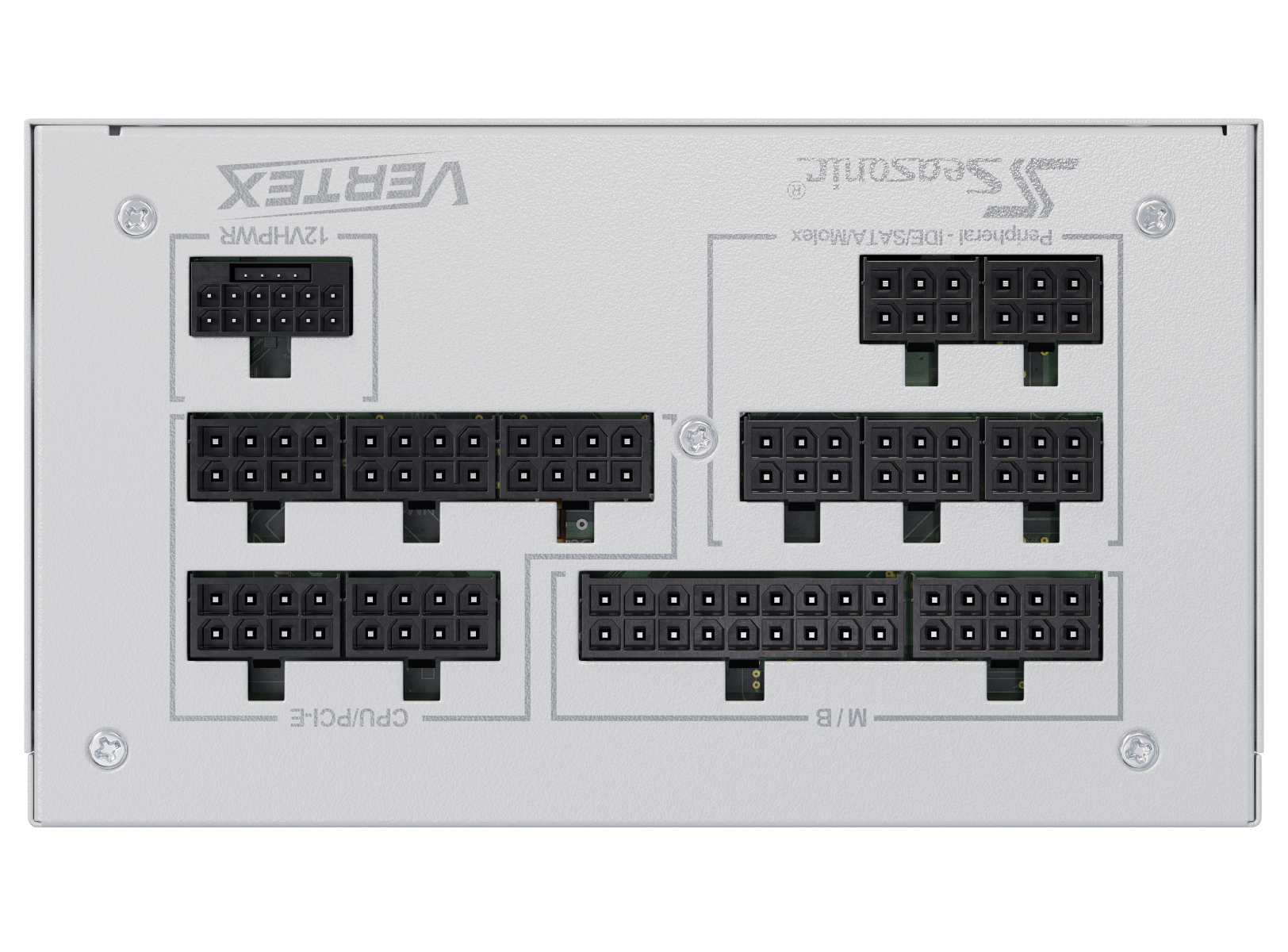

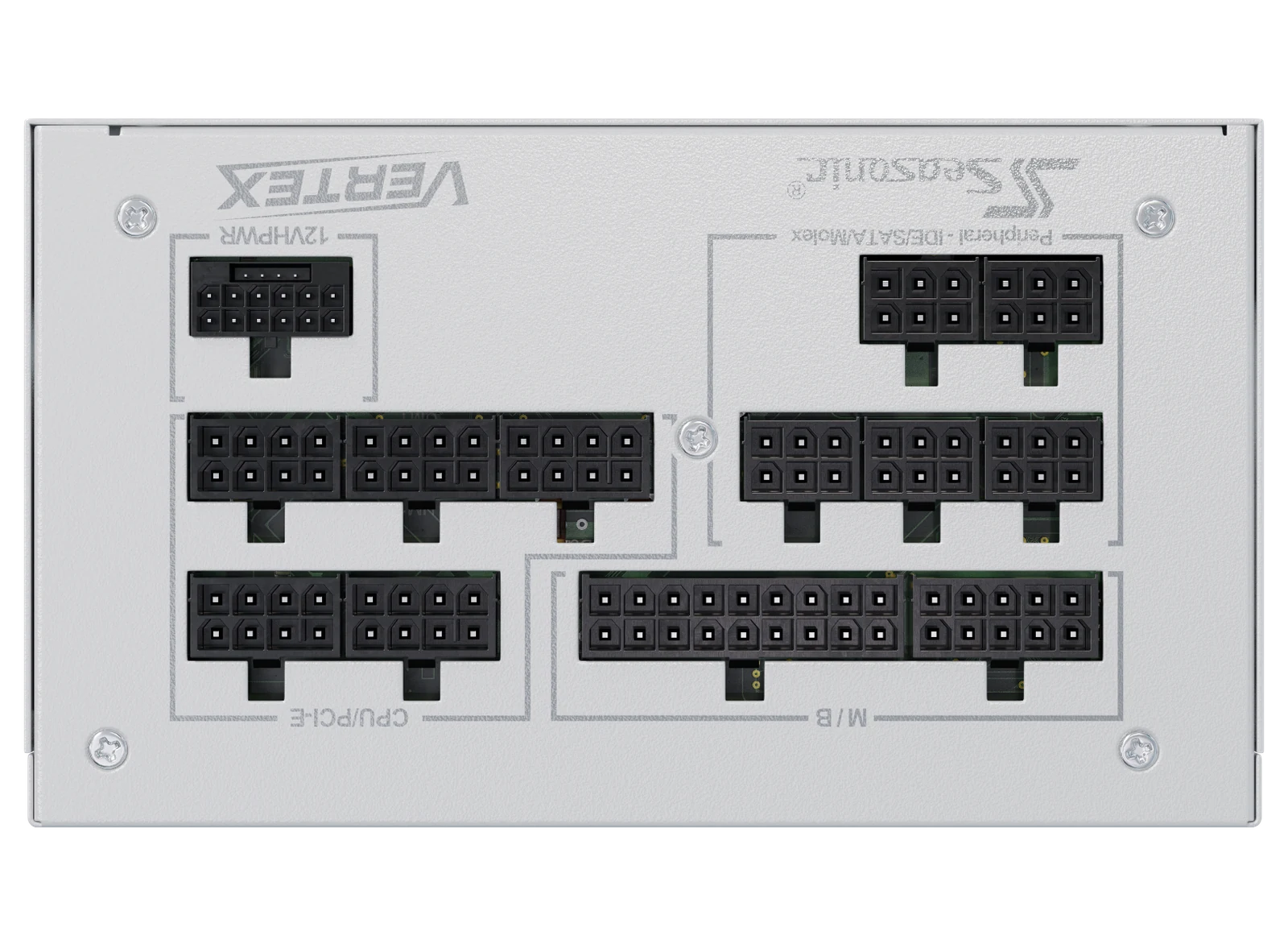

• Includes 16-pin PCIe Gen 5 cable, 12VHPWR

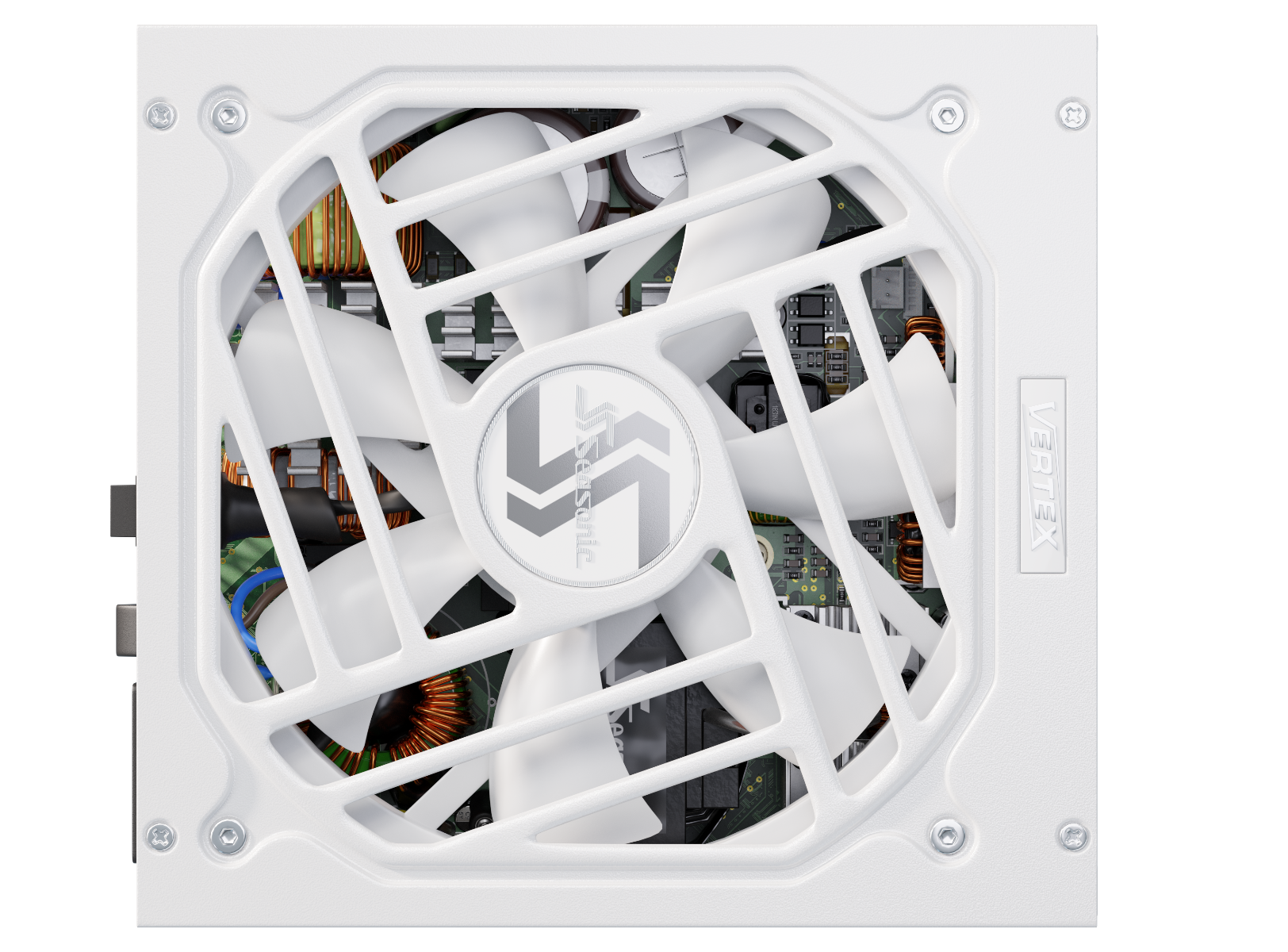

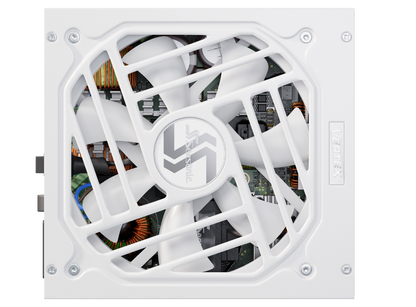

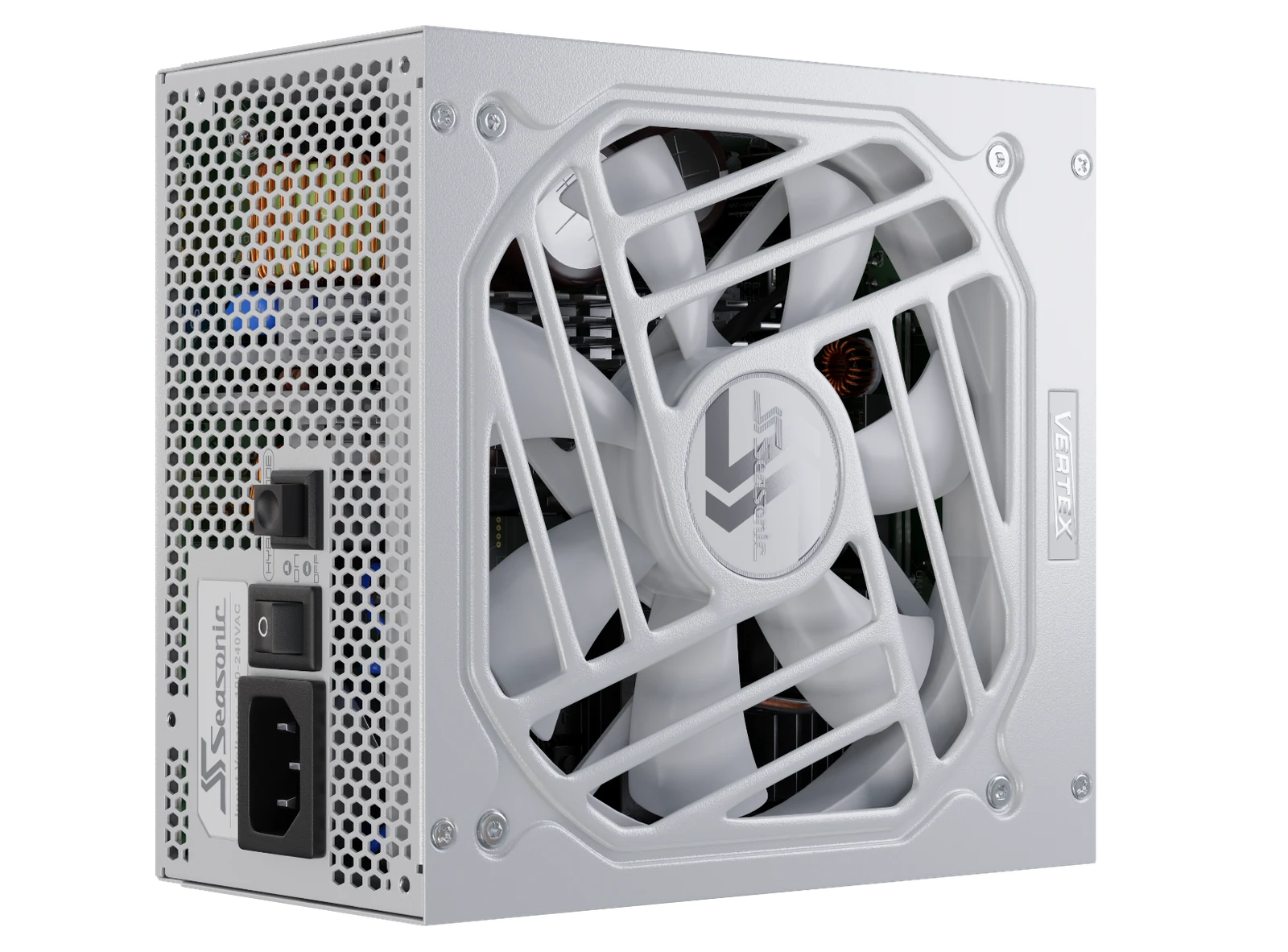

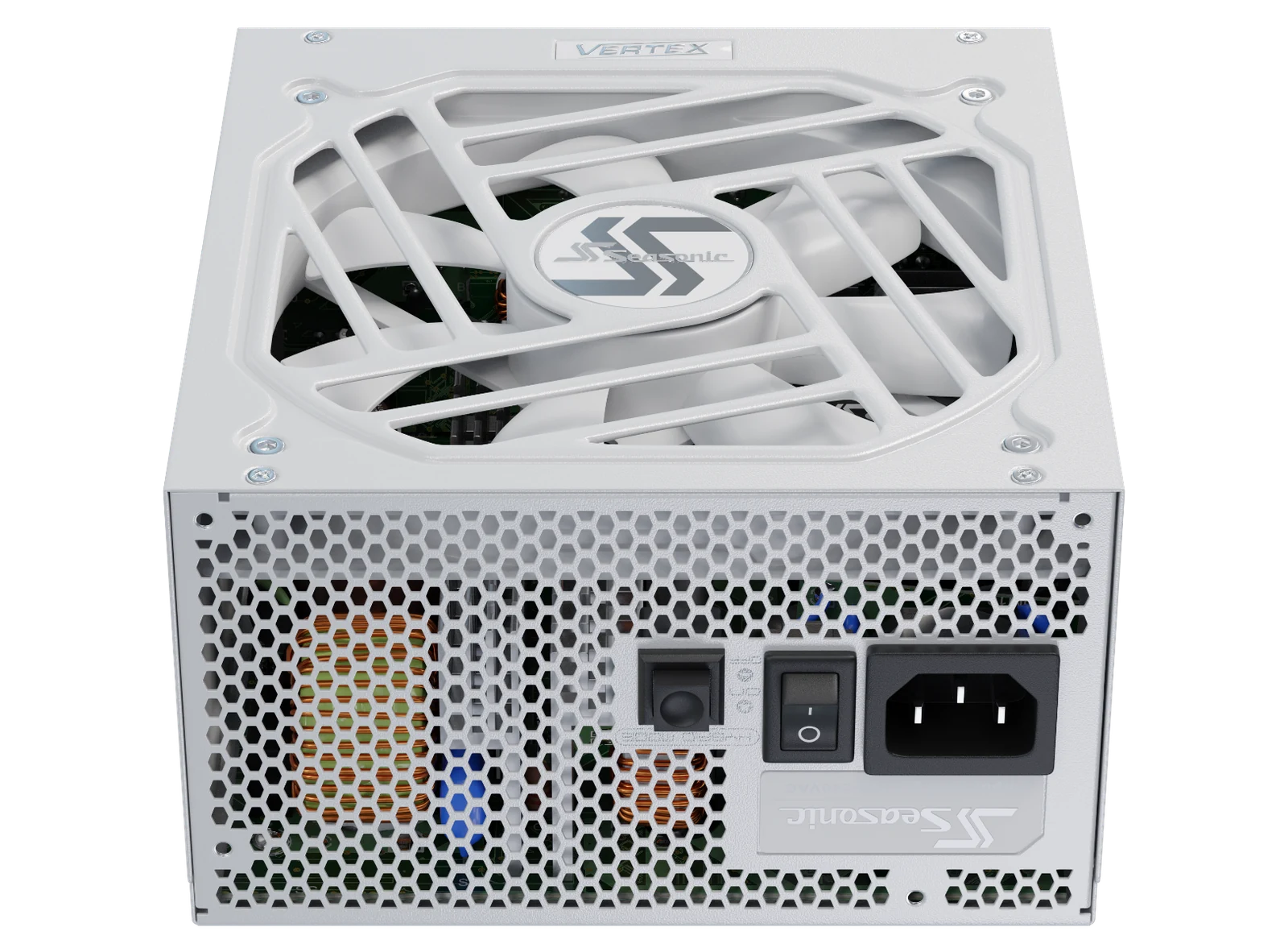

• Top-quality 135mm fluid dynamic bearing fan
• Premium hybrid fan control
• Tight voltage regulation on 12V, 5V and 3.3V rails at ±3%

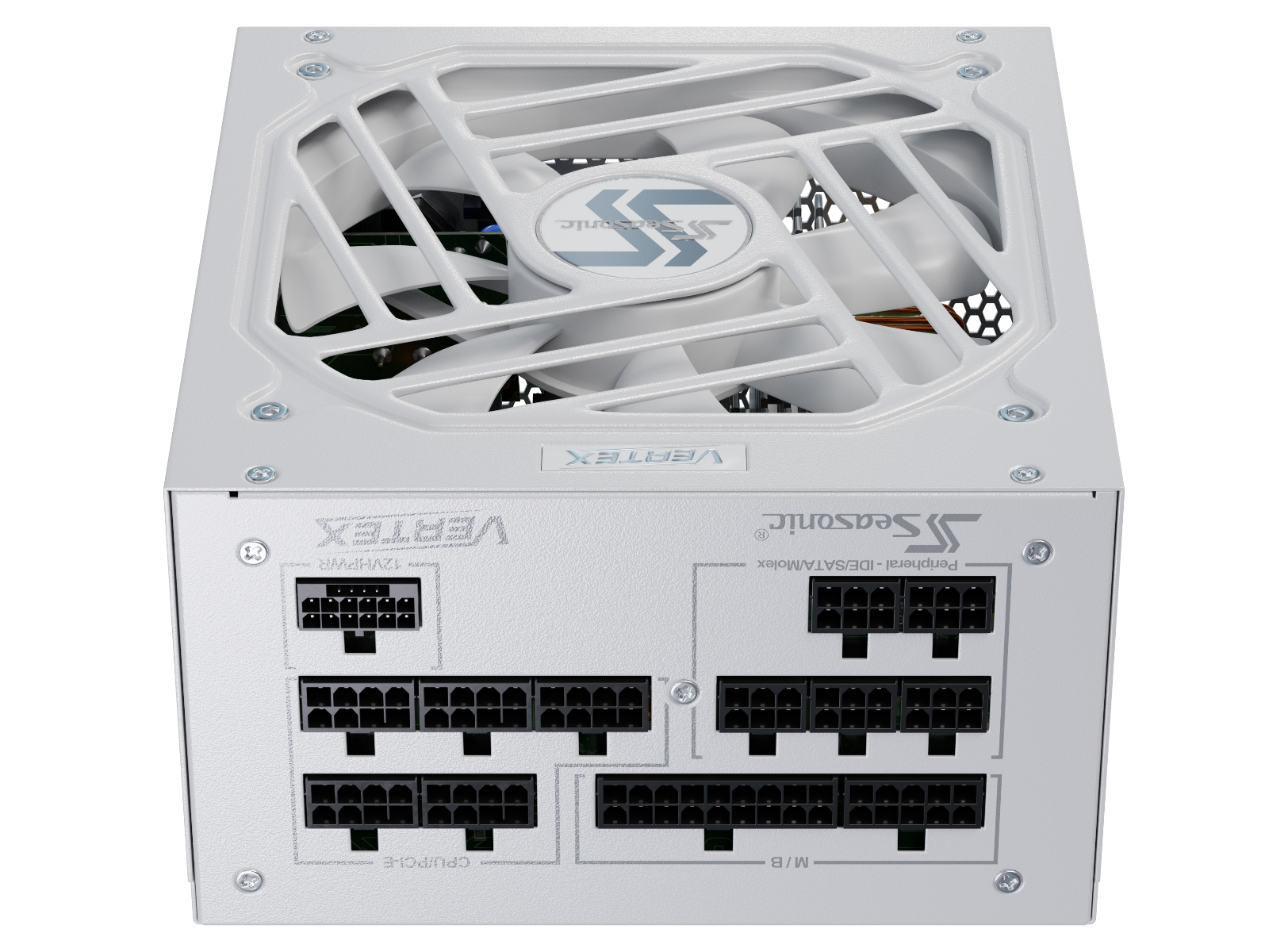

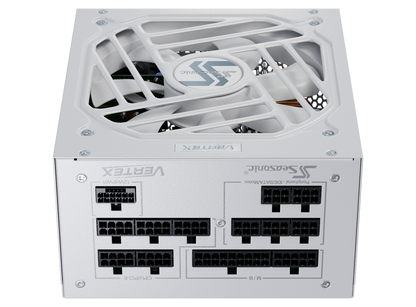

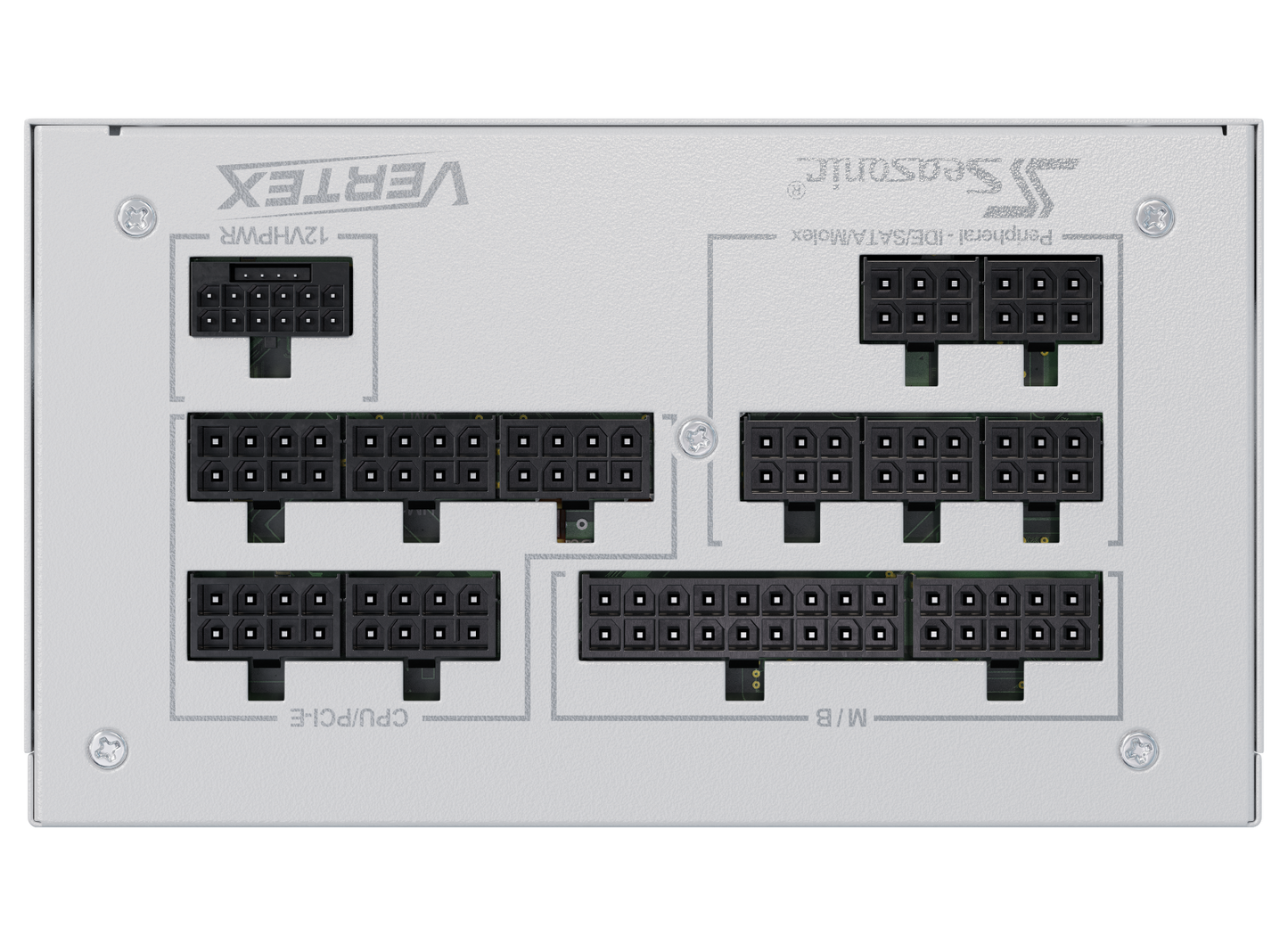

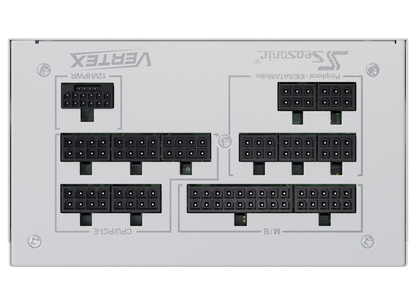

• Gold-plated high-current terminals for MB, CPU and PCIe
• OPP, OVP, UVP, OCP, OTP and SCP protection

Specifications

• Brand: Seasonic
• Power Output: 1000W
• 80 PLUS Rating: Gold
• Form Factor: Intel ATX 12V
• Dimensions: 160mm L x 150mm W x 86mm H
• Fan Size: 135mm
• Fan Control: Digital fan control
• Fan Bearing: Fluid dynamic bearing
• Fan Life Expectancy: 50,000 hours at 40°C, 15%-65% RH
• Modularity: Fully modular
• Cable Type: Flat white cables
• Operating Temperature: 0-50°C, derating from 100% to 80% from 40°C to 50°C
• MTBF at 25°C, excluding fan: 100,000 hours

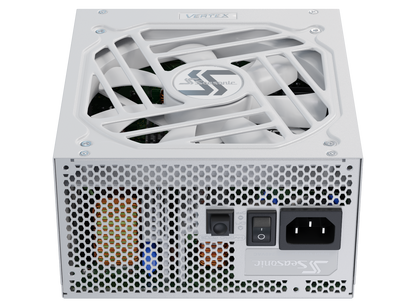

• AC Input: Full range
• Input Voltage: 100-240V
• Input Current: 13-6.5A
• Frequency: 50-60Hz
• +12V Rail: 83A, 996W
• Safety and EMC: cTUVus, TUV, CB, CCC, BSMI, EAC and CE
• Environmental Compliance: Energy Star, RoHS, WEEE, ErP Lot 6 and REACH
• Warranty: 10 years

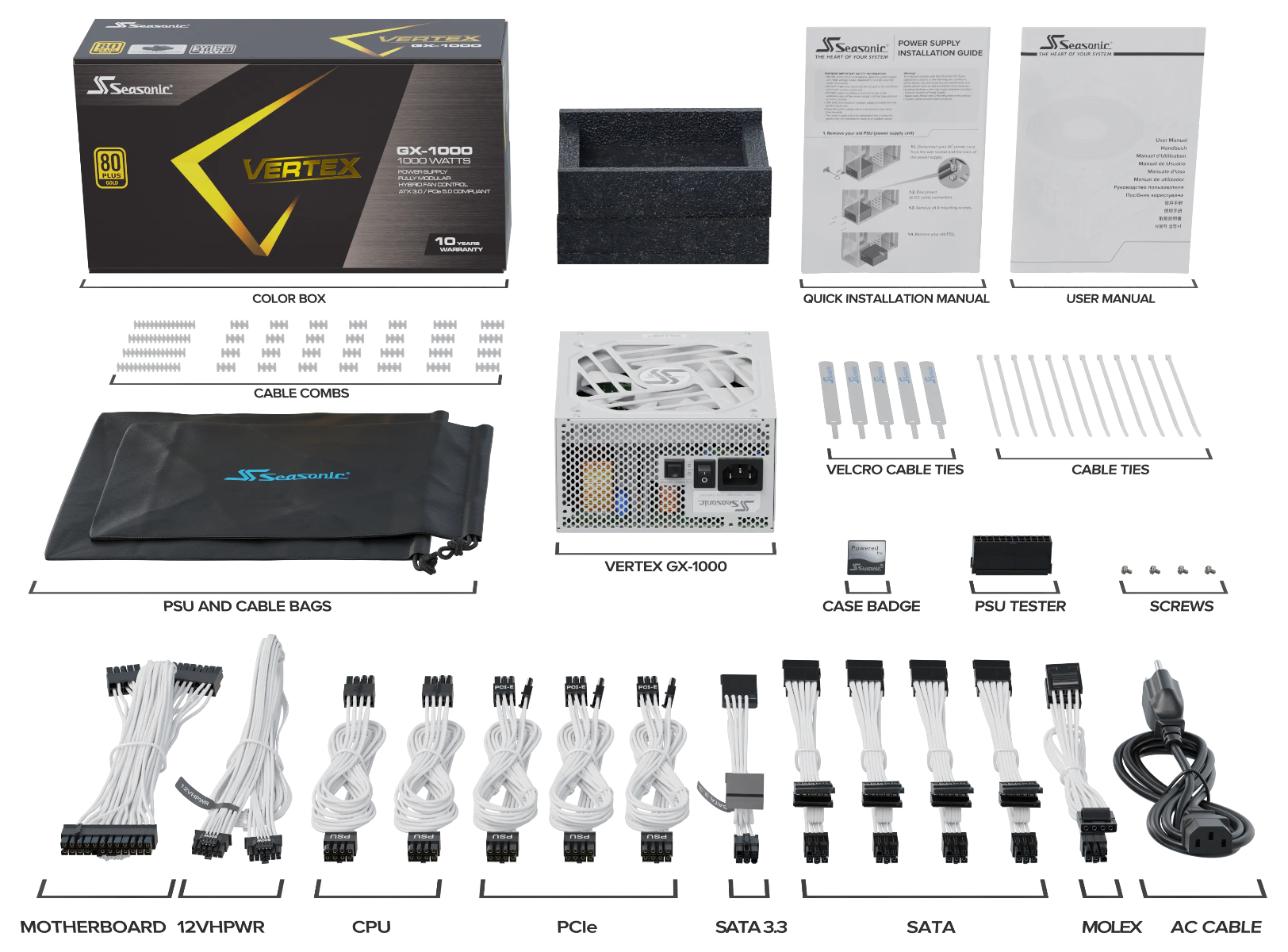

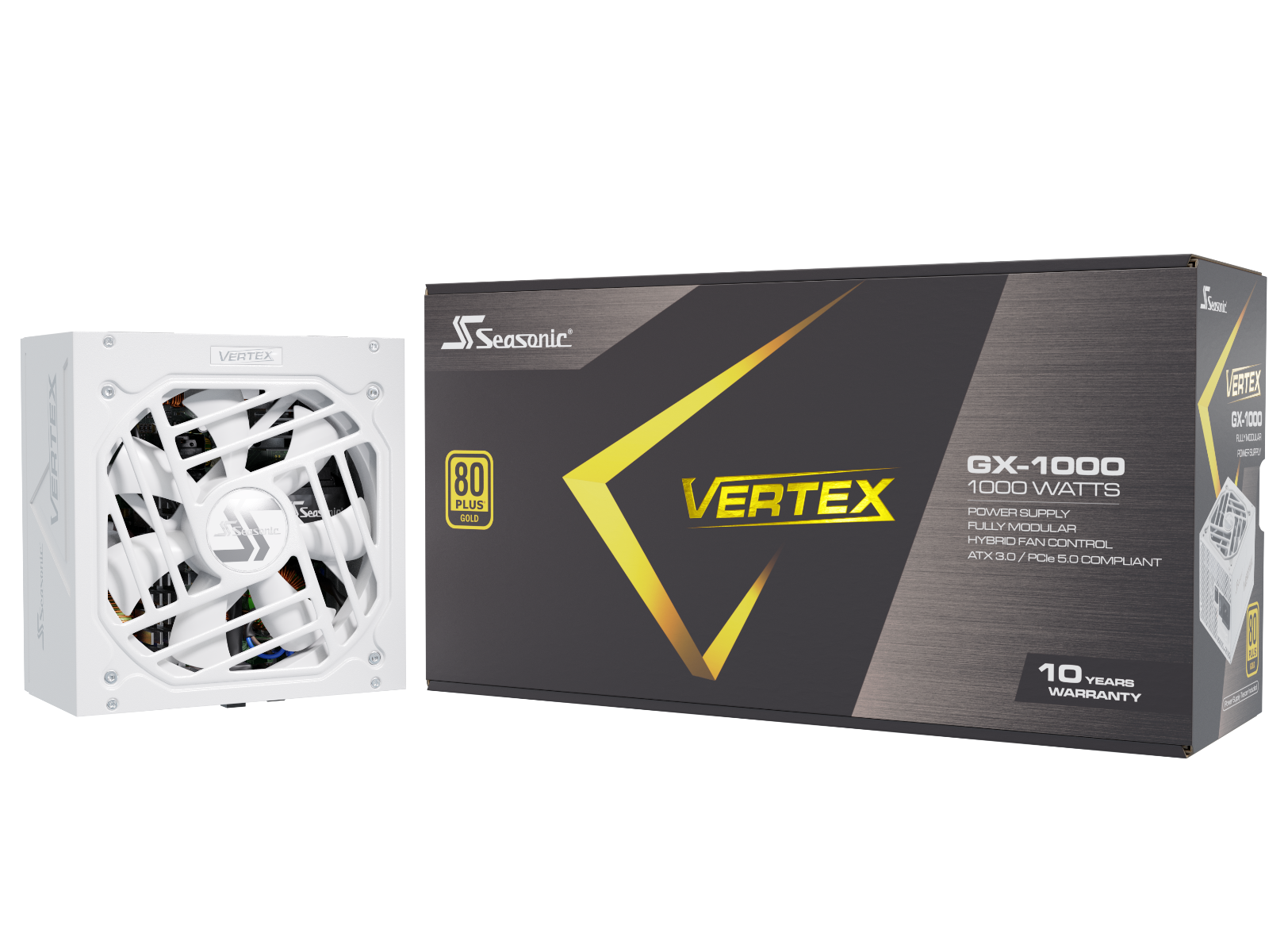

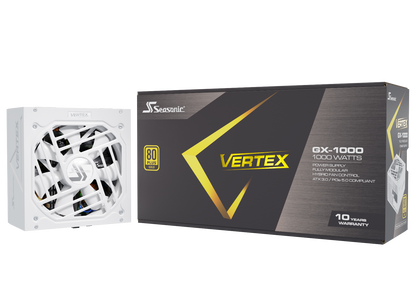

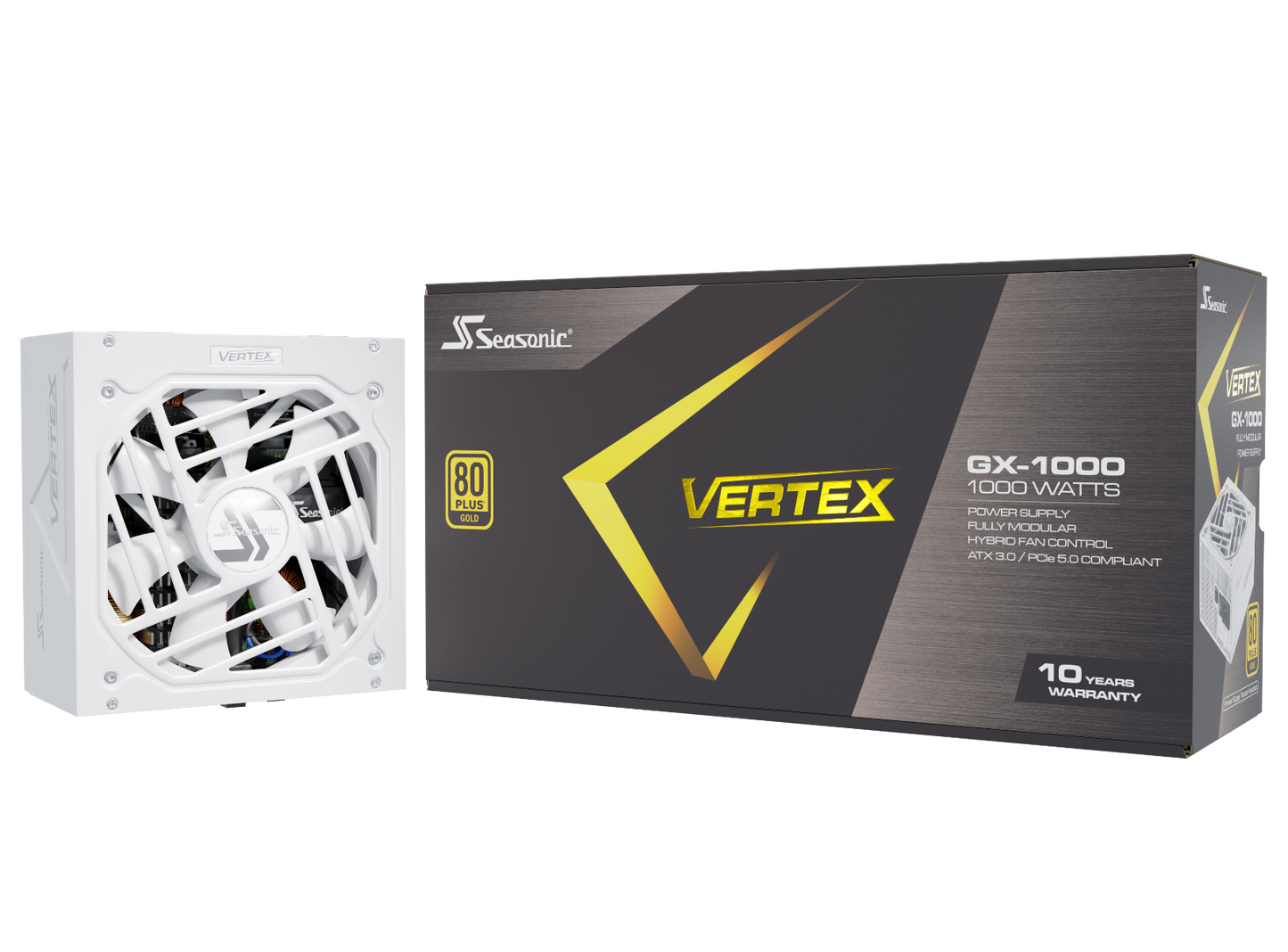

Package Contents

• 1 x Seasonic VERTEX GX-1000 White 1000W Modular PSU
