Simplecom USB-C 5-in-1 Multiport Docking Station, HDMI 2.0 4K@60Hz, 100W PD

Simplecom USB-C 5-in-1 Multiport Docking Station is designed to expand your laptop's connectivity.

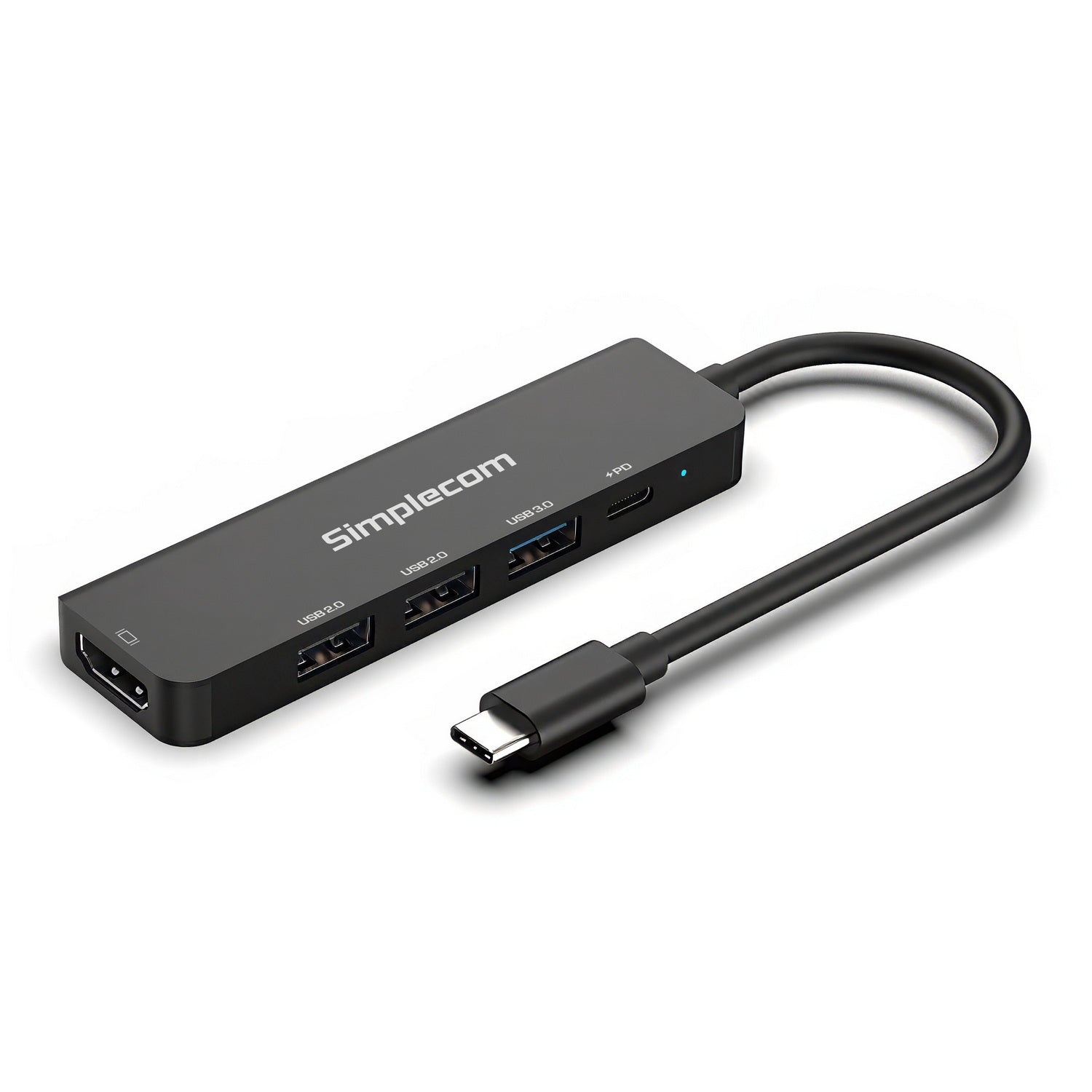

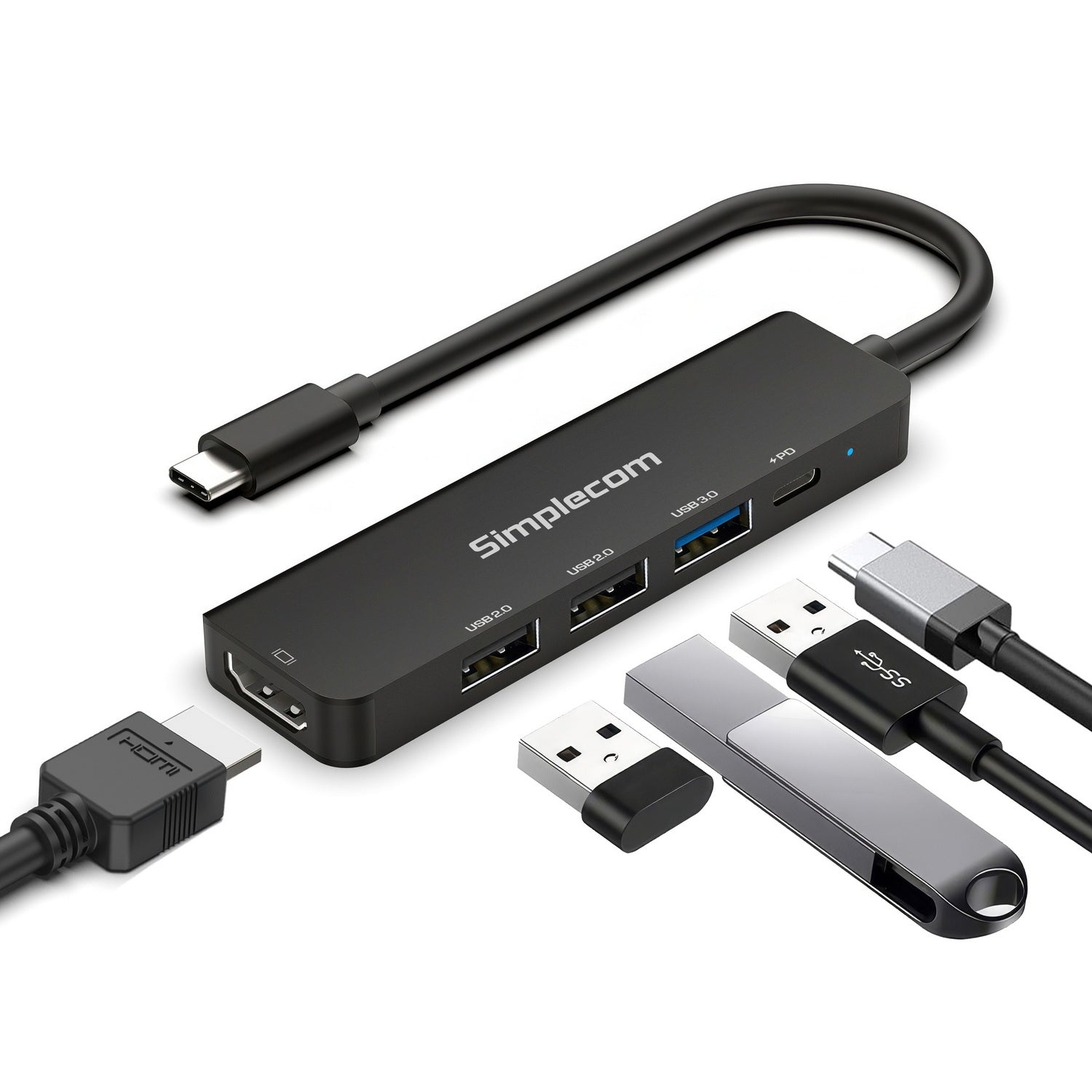

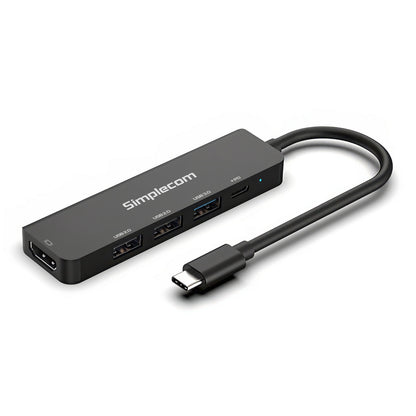

Simplecom USB-C 5-in-1 Multiport Docking Station

This compact 5-in-1 USB-C Multiport Docking Station transforms a single USB-C port into three USB-A ports, an HDMI 2.0 output, and a USB-C Power Delivery input. The HDMI 2.0 port supports resolutions up to 4K@60Hz in both Mirror or Extended modes, delivering smooth, high-quality visuals for work or entertainment. With one SuperSpeed USB 3.0 port offering data transfer speeds up to 5Gbps and two USB 2.0 ports for peripherals like keyboards or mice, you can easily connect multiple devices at once. The USB-C PD port supports up to 100W power delivery, allowing you to charge your laptop while using the hub.

Key Features & Benefits

• 5-in-1 USB-C multiport docking station for easy expansion to your laptop
• Single USB-C to three USB-A ports, HDMI 2.0 and USB-C PD port
• HDMI 2.0 port supports up to 4K@60Hz resolution in Mirror or Extended mode
• 1x SuperSpeed USB 3.0 ports, support up to 5Gbps data transfer rate
• 2x Hi-Speed USB 2.0 ports, support up to 480Mbps data transfer rate
• USB-C PD port for charging the laptop with up to 100W of power
• Durable stylish aluminium alloy housing
• Lightweight, easy to carry along when travelling
• Built-in flexible USB-C Cable
• Plug and play, no driver software required

Specifications

• Host Interface: USB-C
• USB Hub: 3x USB-A Female (1x USB 3.0 5Gbps, 2x USB 2.0 480Mbps)
• HDMI Output: 1x HDMI 2.0, Support up to 3840x2160 at 60 Hz (4K@60Hz)
• PD Charging: USB-C Female (for charging only), up to 100W
• Operation Temperature: 0 - 50C
• Housing Material: Aluminium
• Dimensions: 10.2 x 2.8 x 1 (cm)
• Cable Length: 15cm approx.
• Weight: 38g approx.

System Requirements

• Operating system: Windows 10 or above, macOS 10.12 or above
• Available USB-C port with DP Alt Mode support (video output over USB-C), Thunderbolt USB-C port or USB4 port
• Laptop GPU with DP 1.4 supports up to 4K@60Hz, laptop GPU with DP 1.2 supports up to 4K@30Hz

Important Notes

• Please confirm that the USB-C port on your device supports DisplayPort Alternate Mode (DP Alt Mode). Some USB-C ports support only charging or data transfer and do not offer video output functionality.
• 4K@60Hz is supported by laptop GPUs with DP 1.4 (e.g., Intel 11th Gen Core Mobile Processors or later).
• The USB-C PD port is for Power Delivery (PD) charging only and does not support data transfer.

Simplecom offers a reliable solution for expanding USB-C connectivity.
