Simplecom PCIe x4 4-Port USB 3.2 Gen II 10Gbps Type-C & Type-A Expansion Card

Simplecom PCIe x4 4-Port USB 3.2 Gen II Expansion Card provides enhanced connectivity.

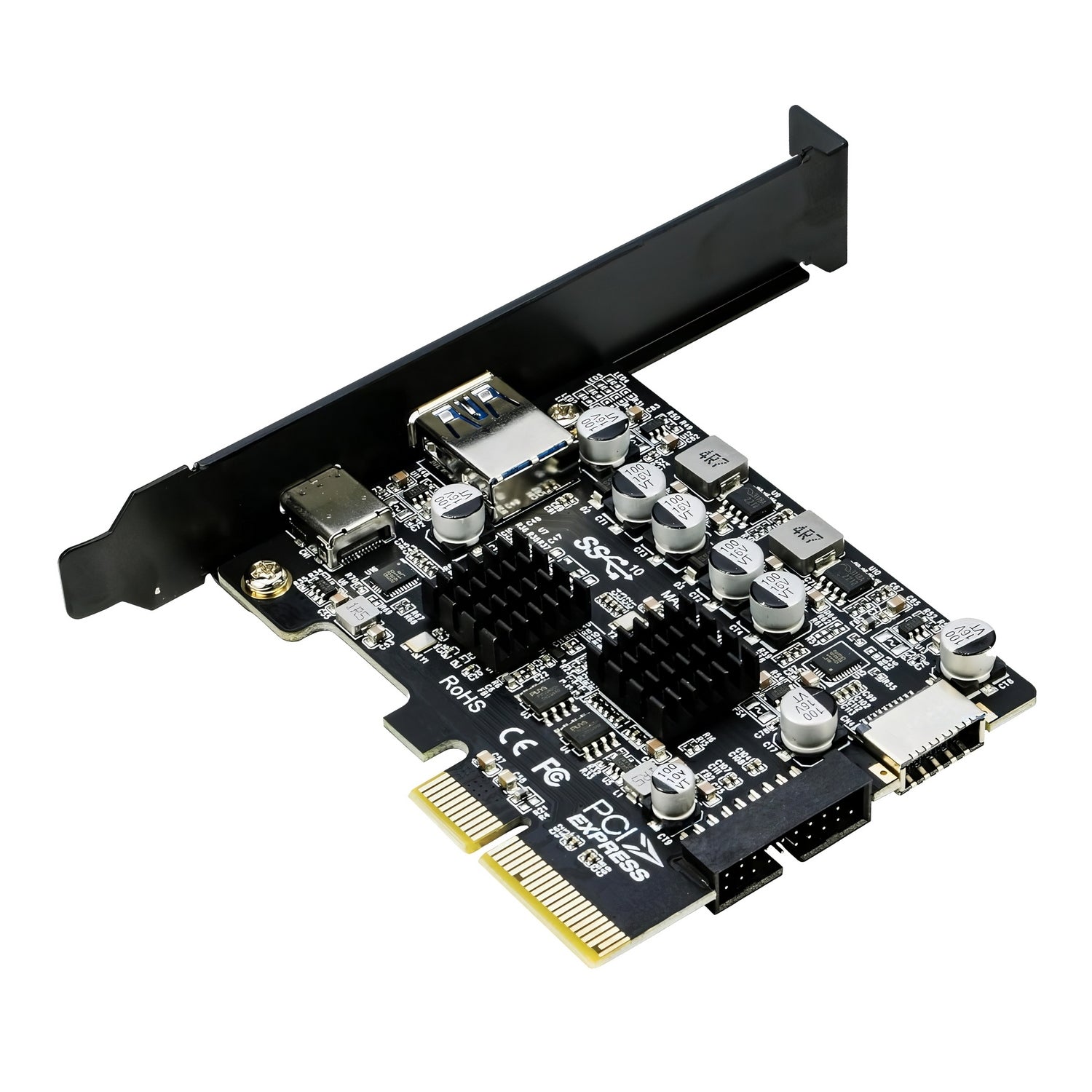

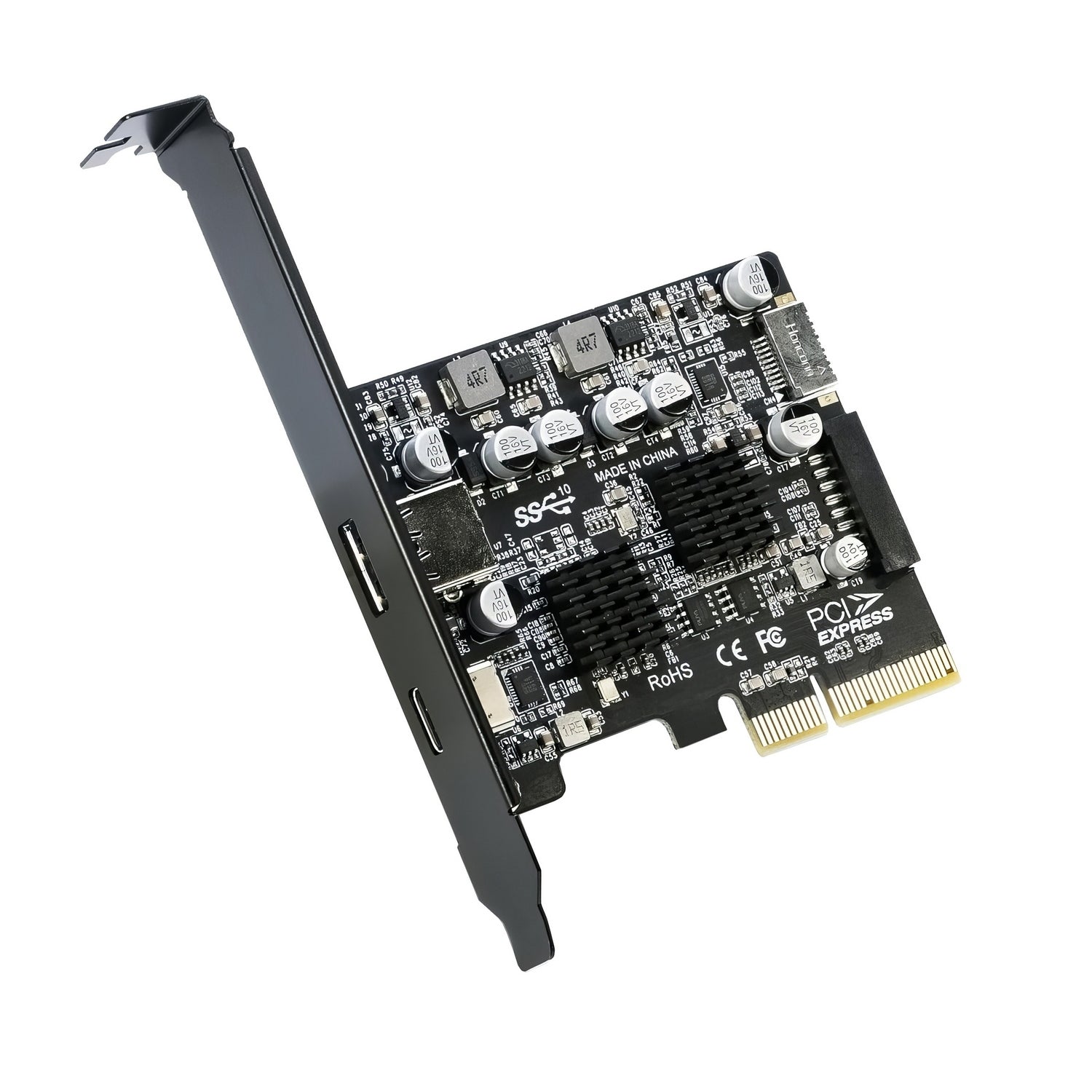

Simplecom PCIe x4 4-Port USB 3.2 Gen II Expansion Card

This expansion card is designed to provide both external and internal USB connectivity with data transfer speeds of up to 10Gbps. It features 4x external and internal USB connectors, allowing simultaneous operation of the USB ports on both the rear and front panels.

Key Features & Benefits

• PCIe x4 expansion card, also compatible with PCIe x8 or x16 slot
• USB 3.2 Gen 2 interface supports data transfer rates of up to 10Gbps
• Integrated PCIe to USB 3.2 Gen 2 controller and USB 3.2 Gen 2 hub controller

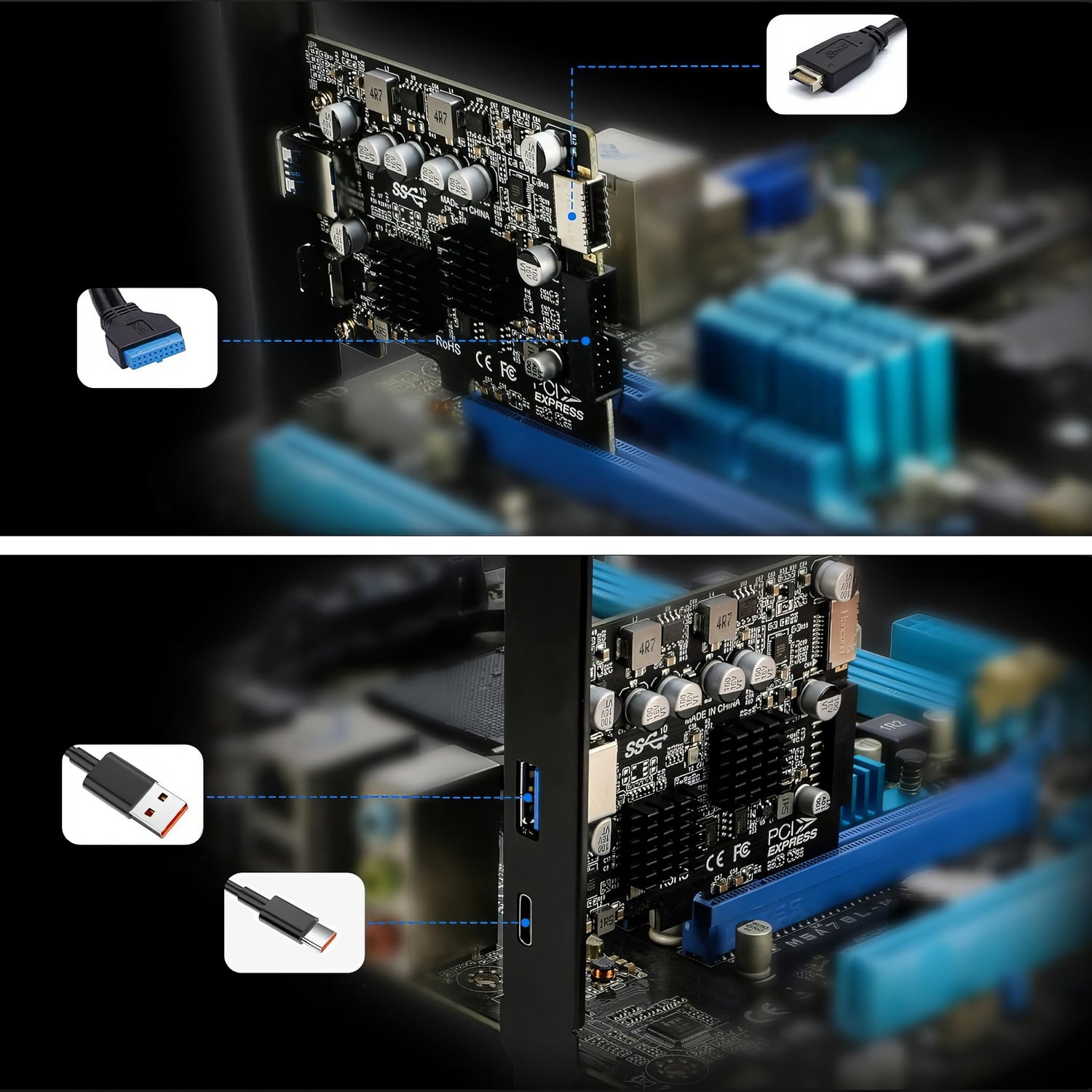

• The USB ports on the rear panel and front panel can operate simultaneously
• Two rear panel connectors, 1x USB-C and 1x USB-A port
• Two internal connectors for front panel, USB 3.0 19/20-Pin and Key-A (Type-E) connectors
• Backwards compatible with USB 2.0 and USB 1.1 devices
• Built-in over current protection on each USB port
• Powered by PCIe, no external power required
• Plug and play, automatic installation on Windows

Specifications

• PCIe Interface: PCIe 3.0 x4, compatible PCIe x8 or x16 slot
• USB Standard: USB 3.2 Gen 2 10Gbps
• Rear Panel Connectors: 1x USB-A, 1x USB-C
• Internal Connectors for Front Panel: 1x USB 3.0 19/20Pin socket (Front USB-A), 1x Key-A (Type-E) connector (Front USB-C)
• USB Speed Support: SuperSpeed+ (10Gpbs), SuperSpeed (5Gpbs), HiSpeed (480Mbps), Full Speed (12Mbps)
• USB Power Source: Integrated PCIe 12V to 5V module
• Operating System Support: Windows 7 and above

Package Includes / What's in the Box

• 1x USB 3.2 Gen 2 Expansion Card
• 1x Low Profile Bracket

This expansion card is an ideal solution for enhancing your USB connectivity.
