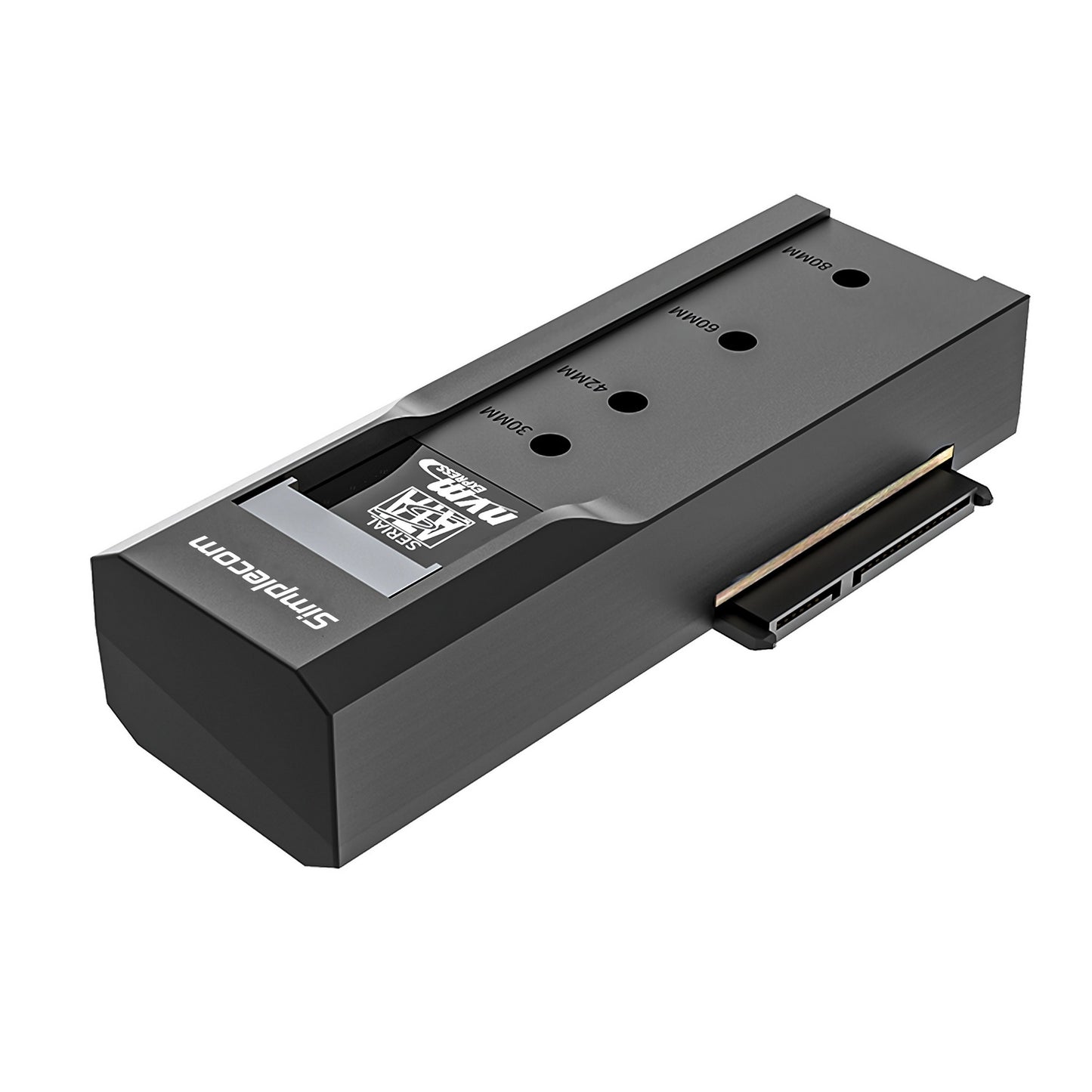

Simplecom USB to M.2 & SATA 2-IN-1 Adapter for 2.5"/3.5" HDD & NVMe SSD 10Gbps

Simplecom SA536 USB to M.2 and SATA 2-IN-1 Adapter for easy access to storage drives.

USB to M.2 and SATA Adapter

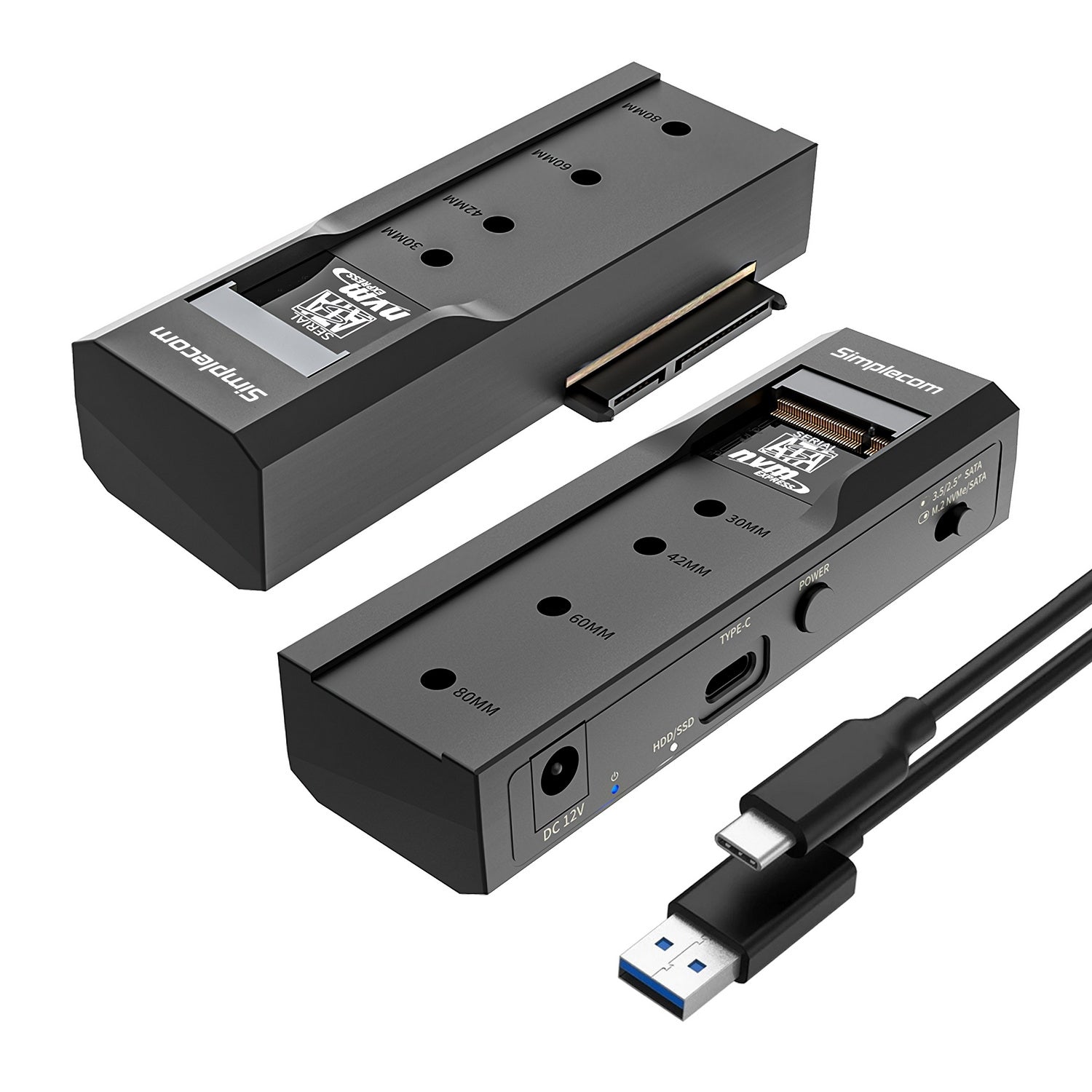

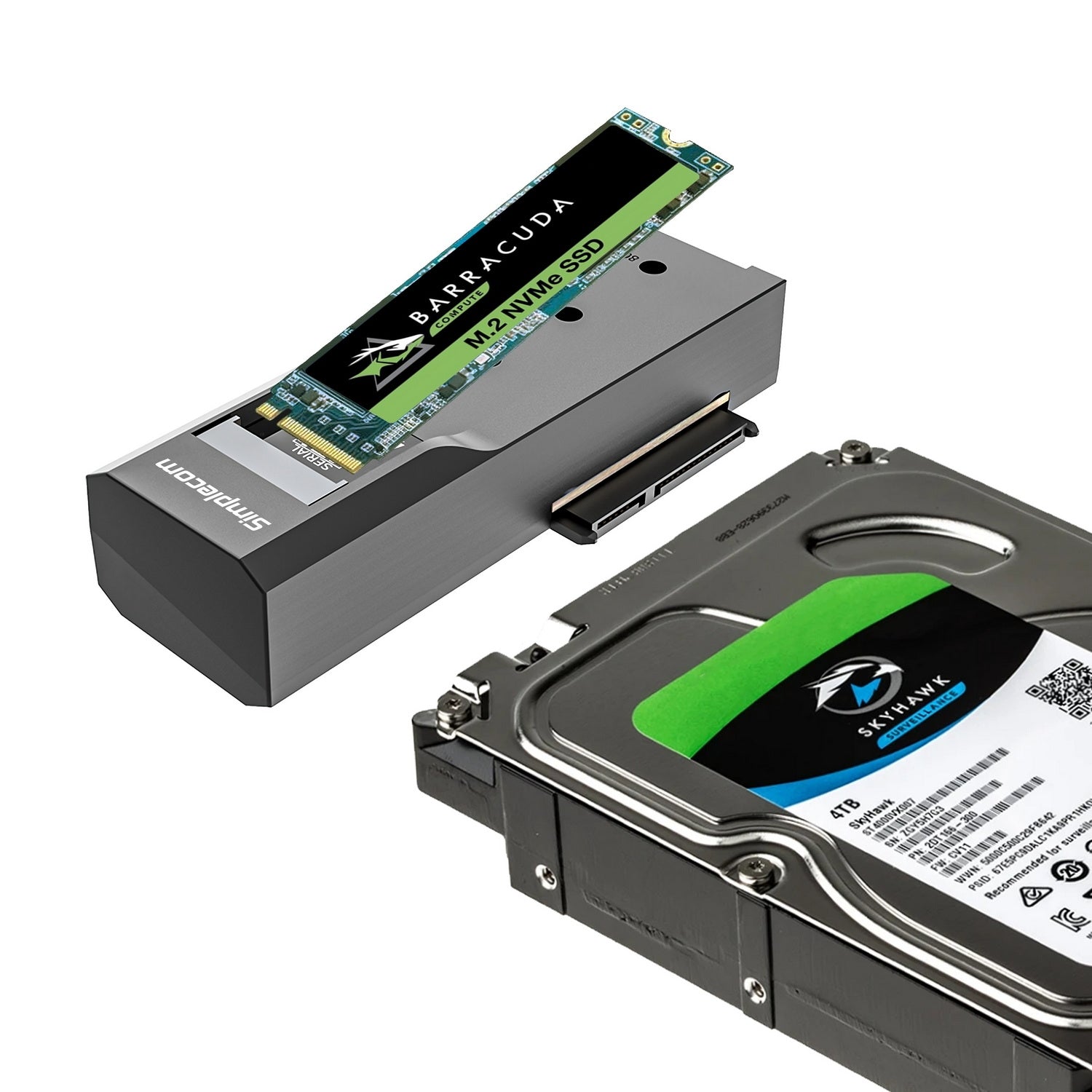

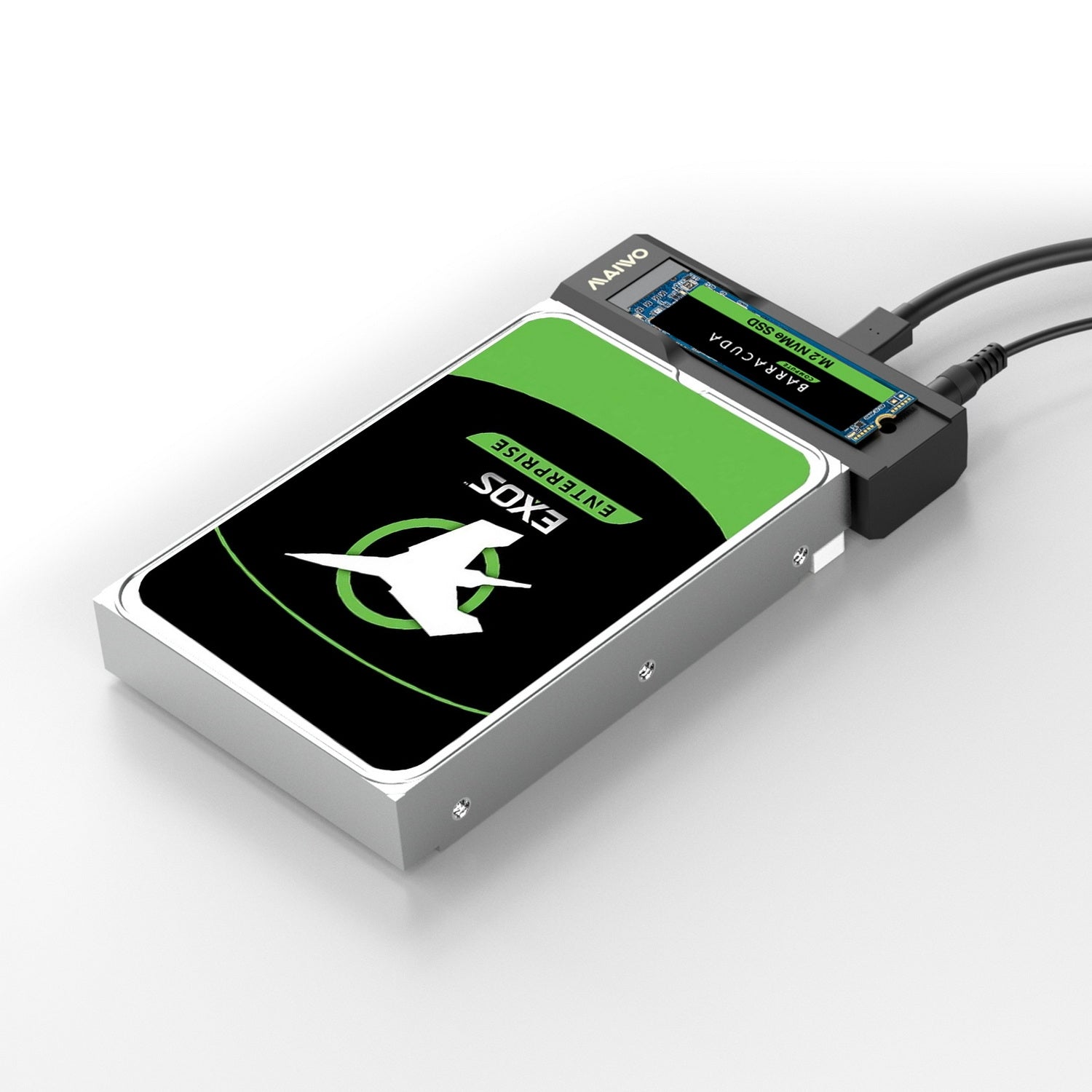

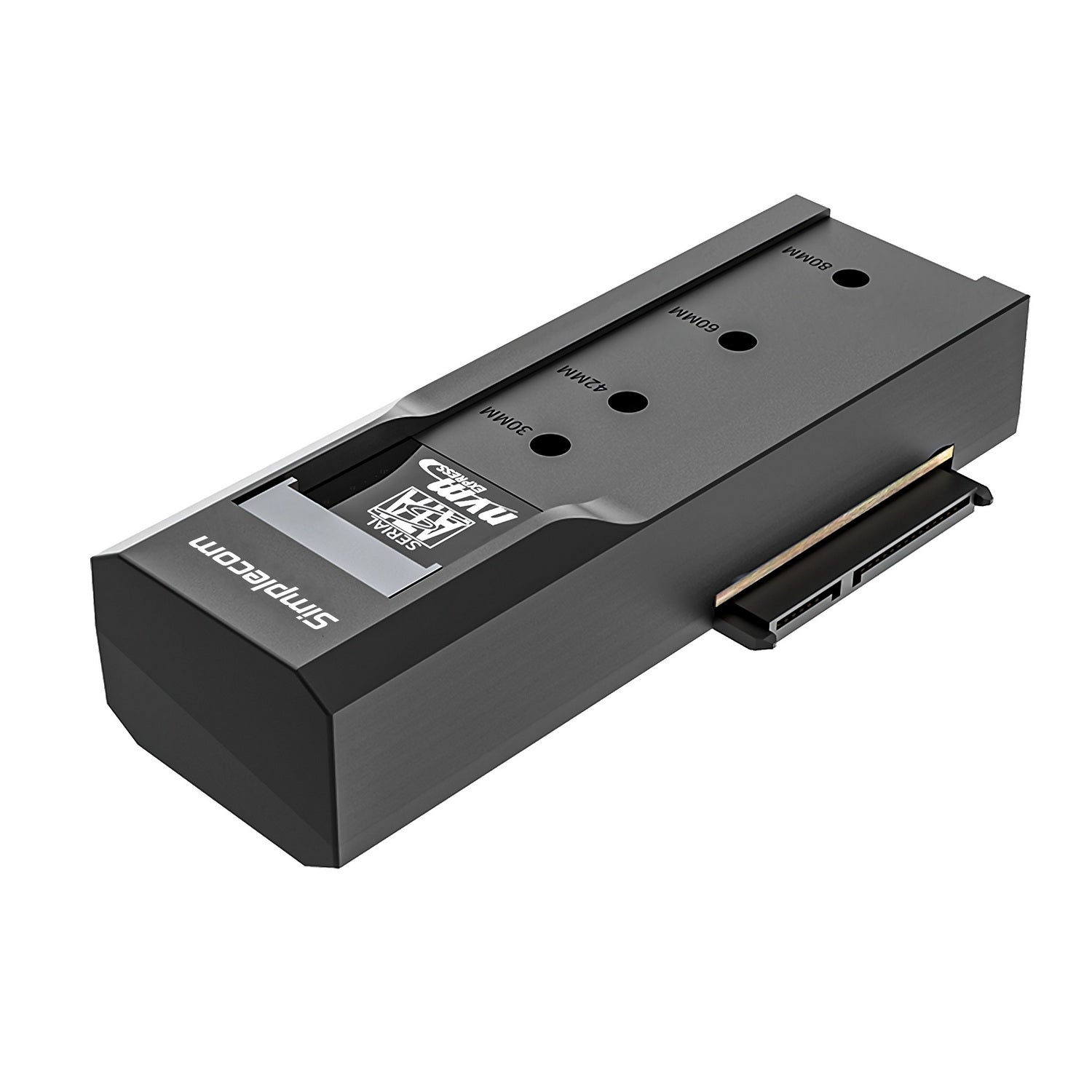

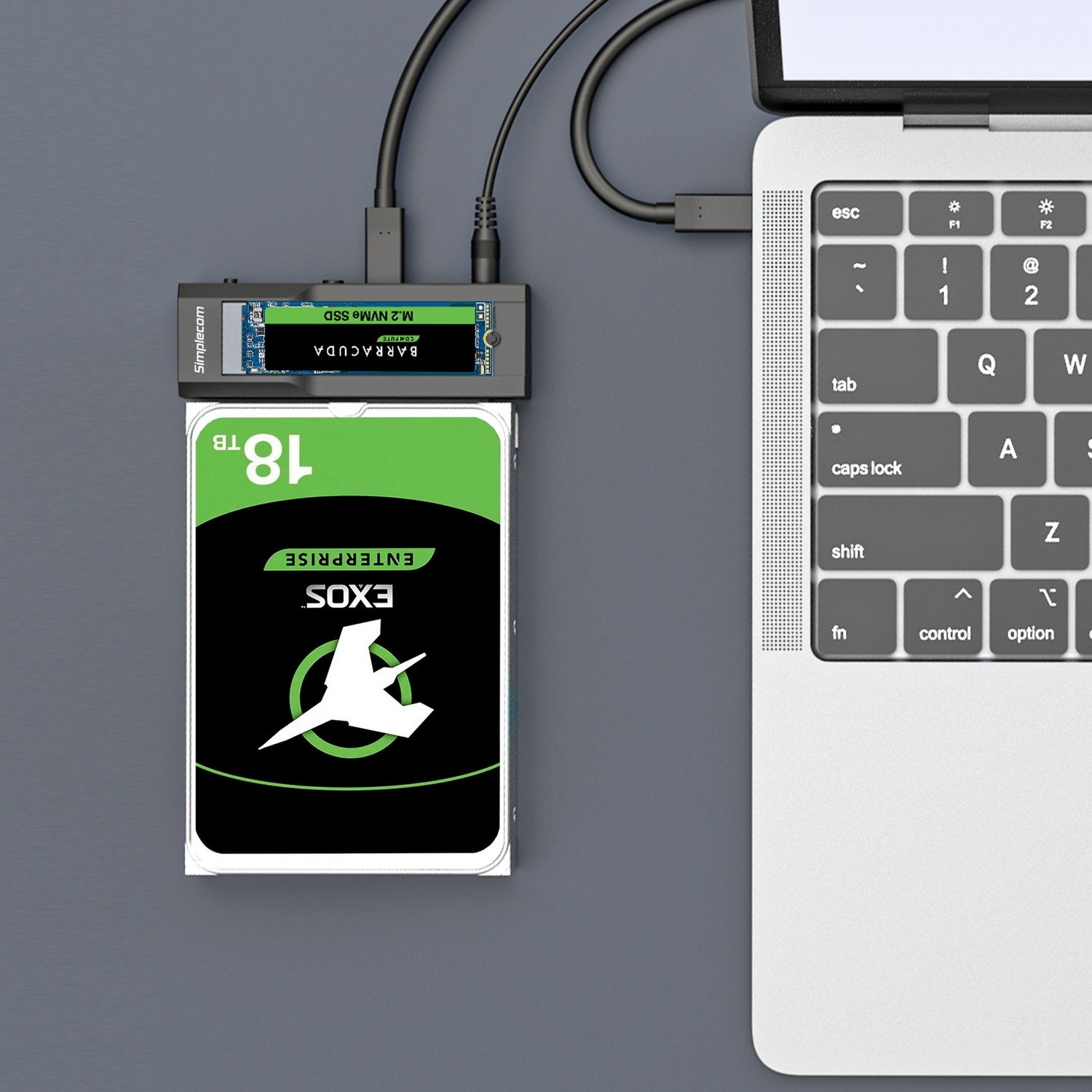

The SA536 is a 2-IN-1 USB adapter with SATA and M.2 sockets, supporting both NVMe and SATA protocol based M.2 SSDs. This adapter allows for quick access and swapping of SATA or M.2 drives without needing to install them into an enclosure or PC tower.

Key Features & Benefits

• 2-IN-1 USB adapter with SATA and M.2 sockets
• Supports NVMe and SATA M.2 SSD
• Supports 2.5" and 3.5" SATA HDD/SDD with SATA I/II/III interface

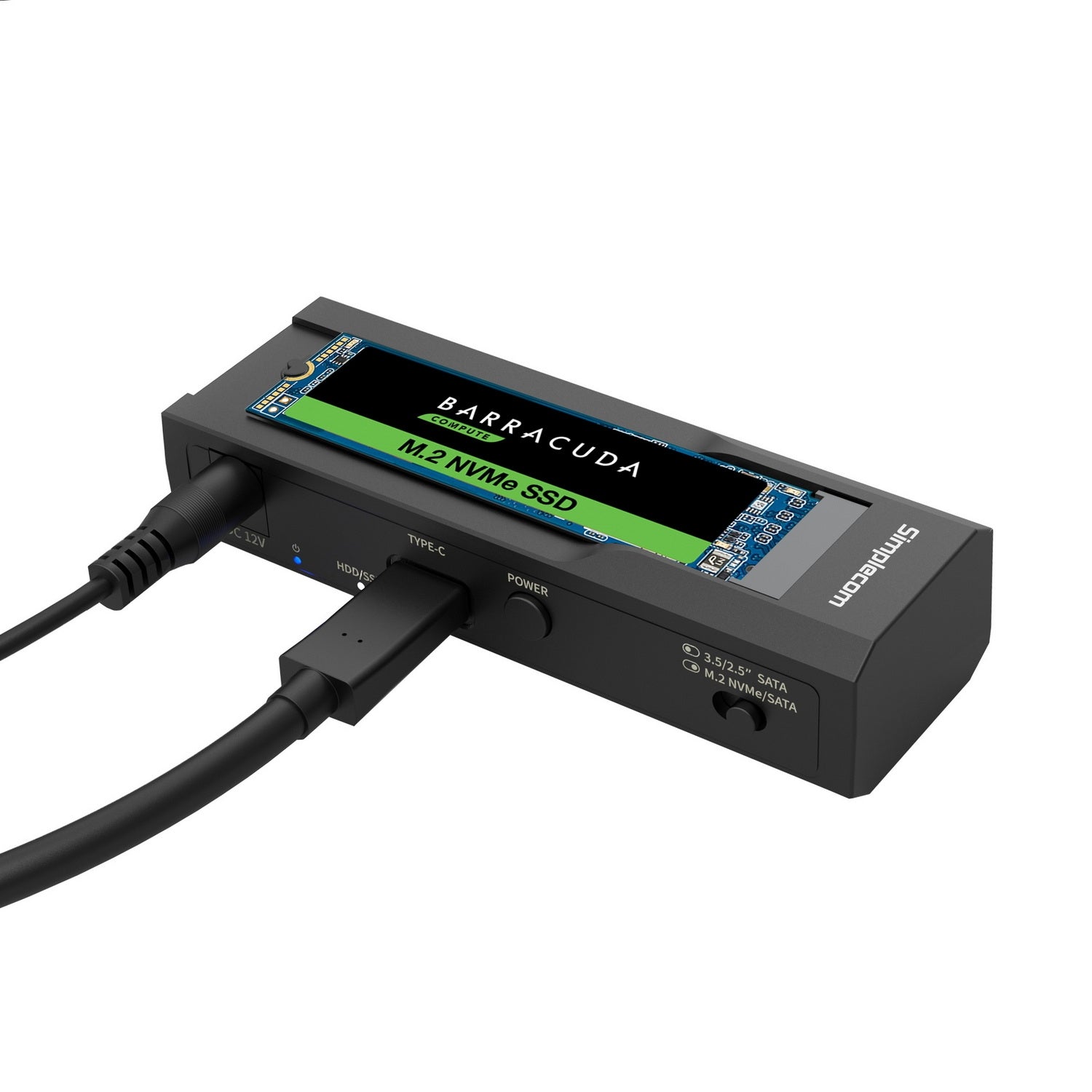

• Toggle button to quickly switch between SATA and M.2
• USB 3.2 Gen2 interface support up to 10Gbps data transfer rate
• Plug and play, no driver required
• Supports USAP for faster data transfer speed and maximum performance
• Supports TRIM command for improved data writing to extend SSD life
• With external power adapter for 3.5" hard drives

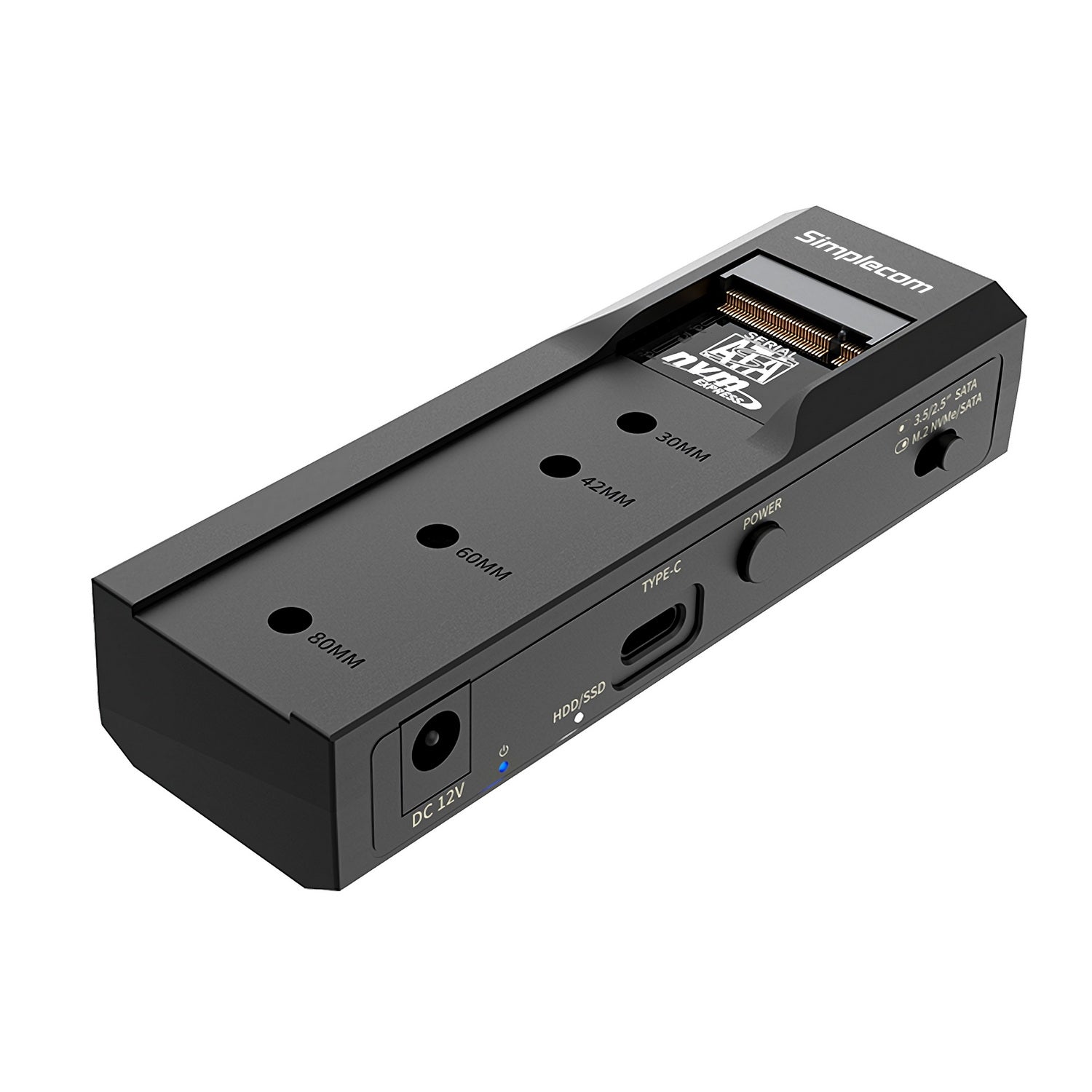

• LED light indicates Power and Activity status

Specifications

• Model: SA536
• Interface: USB-C (USB 3.2 Gen 2)
• Transfer Rate: up to 10Gbps

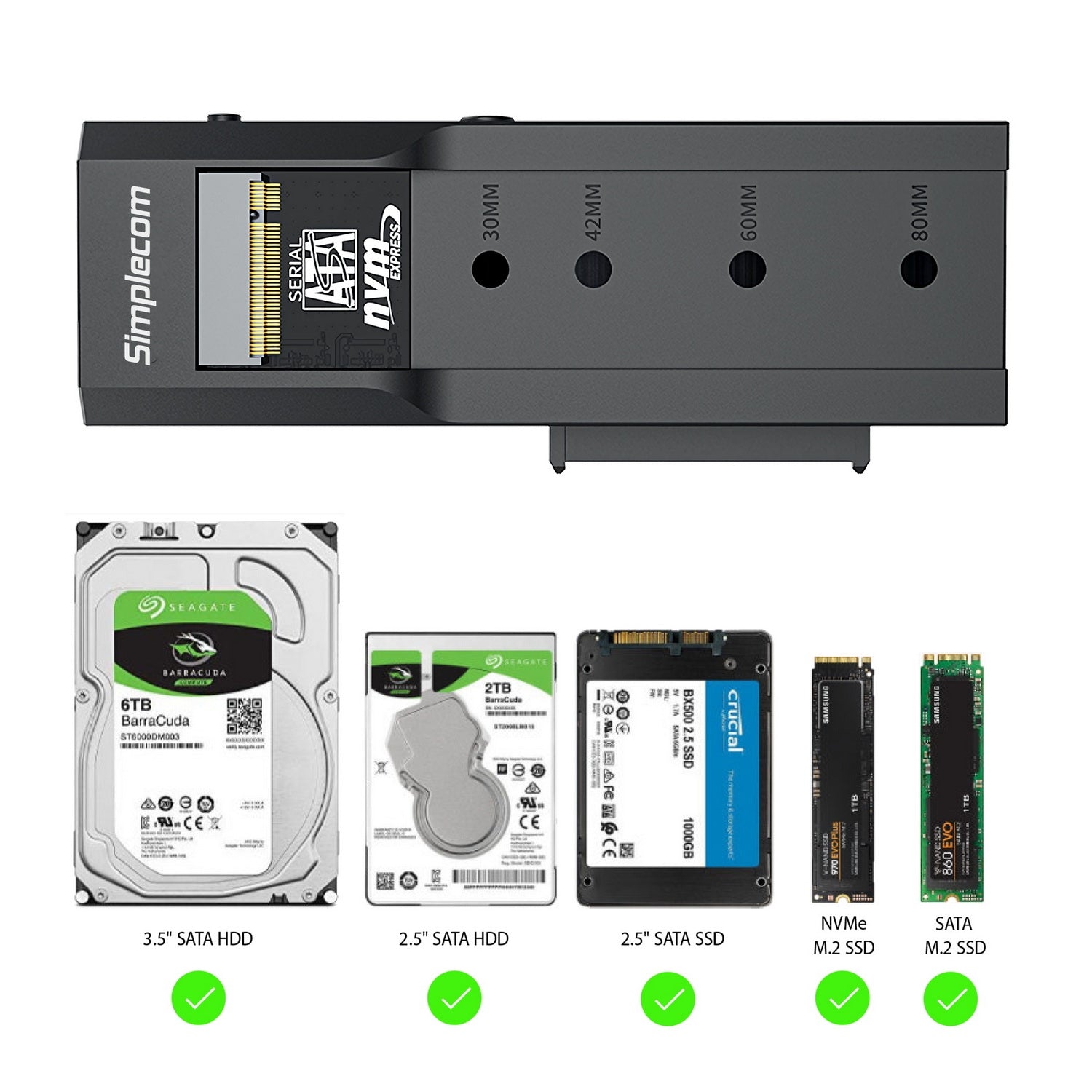

• NVMe Slot Support: NVMe or SATA M.2 SSD (2230 / 2242 / 2260 / 2280)
• SATA Slot Support: 3.5" or 2.5" SATA HDD/SSD
• Main material: ABS Plastic
• Power Input: DC 12V2A
• Dimensions: 108 x 44 x 24mm (LxWxH)
• Weight: 49g (without power adapter)
• Supported Operating Systems: Windows 7 and above, Mac OS 10.8 and above

Package Includes / What's in the Box

• 1x USB to SATA and M.2 Adapter
• 1x AC Power Adapter
• 1x USB-C to USB-A Cable
• 1x USB-C to USB-C Cable
• Rubber Standoff for M.2 SSD
• User Manual

Important Note

• External power is Not required when using 2.5" SATA drive or M.2 SSD, they can be powered by USB.
• External power is required for 3.5" SATA HDD, please connect USB cable before connecting power cable.
• SATA and M.2 sockets can't be used simultaneously, toggle button need to be selected to SATA or M.2 mode.
